D. System Status Indicator
The Flow-Clik Interface Box has a System Status indicator
LED that provides information on the current status of the
Flow-Clik system.

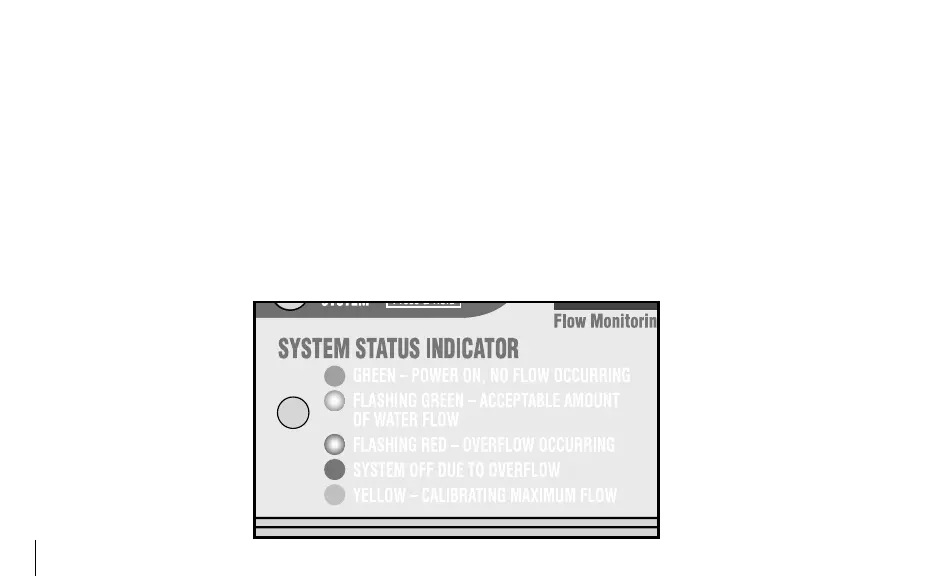

GREEN indicates power is applied to the sensor, but no
flow is occurring
FLASHING GREEN indicates an acceptable amount of water
is flowing (below the flow sensor calibrated maximum)
FLASHING RED indicates that overflow is occurring (Water
flow in excess of the calibrated maximum)
RED indicates an unacceptable amount of water was flow-
ing and the system has been shut down. (Water flow
exceeded the calibrated maximum for a time period
longer than the startup delay).
YELLOW indicates that the Flow-Clik is calibrating the
sensor to the system flow.
FLOW-CLIK COMPONENTS (continued) ......................................................
