SYSTEM OVERVIEW AND FLOW-CLIK OPERATION .................................
The Flow-Clik System can be installed simply and easily
to most standard 24 volt irrigation control systems. The
Flow-Clik System consists of the Flow-Clik flow sensor that
is installed in the main line or lateral line of an irrigation
system, and the Interface Box mounted near the control-
ler to control the operation of the irrigation system. The
flow sensor, wired directly to the Interface Box, continually
monitors flow occurring within the system and transmits
this data to the Interface Box. The programmable Flow
Sensor Interface Box allows the Flow-Clik to function with
all Hunter controllers and makes the Flow-Clik compatible
with most common irrigation controllers on the market. The
controller provides the power for the Interface Box, allow-
ing it to send signals continuously to the controller telling
it to shut down or start up based upon flow conditions.

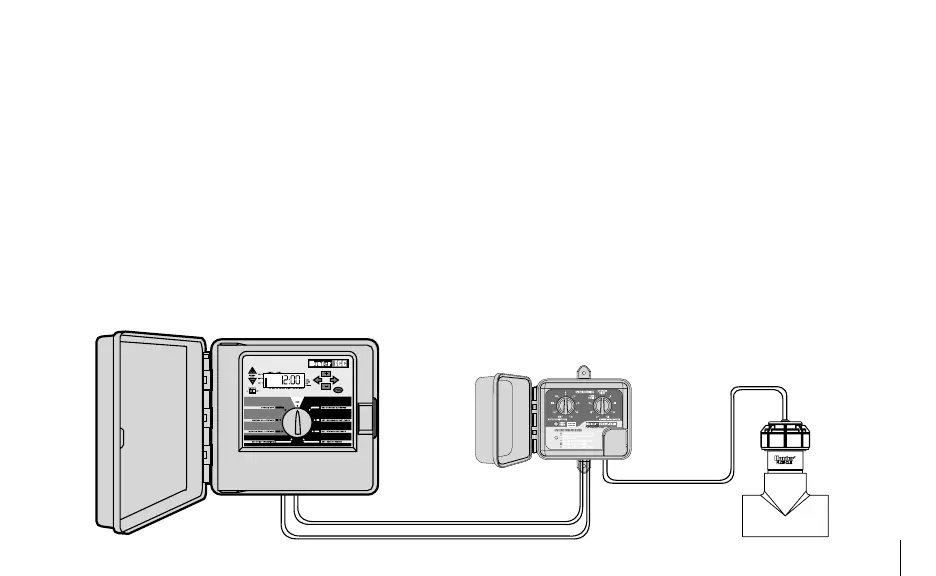

Standard 24 Volt Controller
Flow-Clik Interface Box
Flow-Clik Sensor
4 Wires
To Next Page
