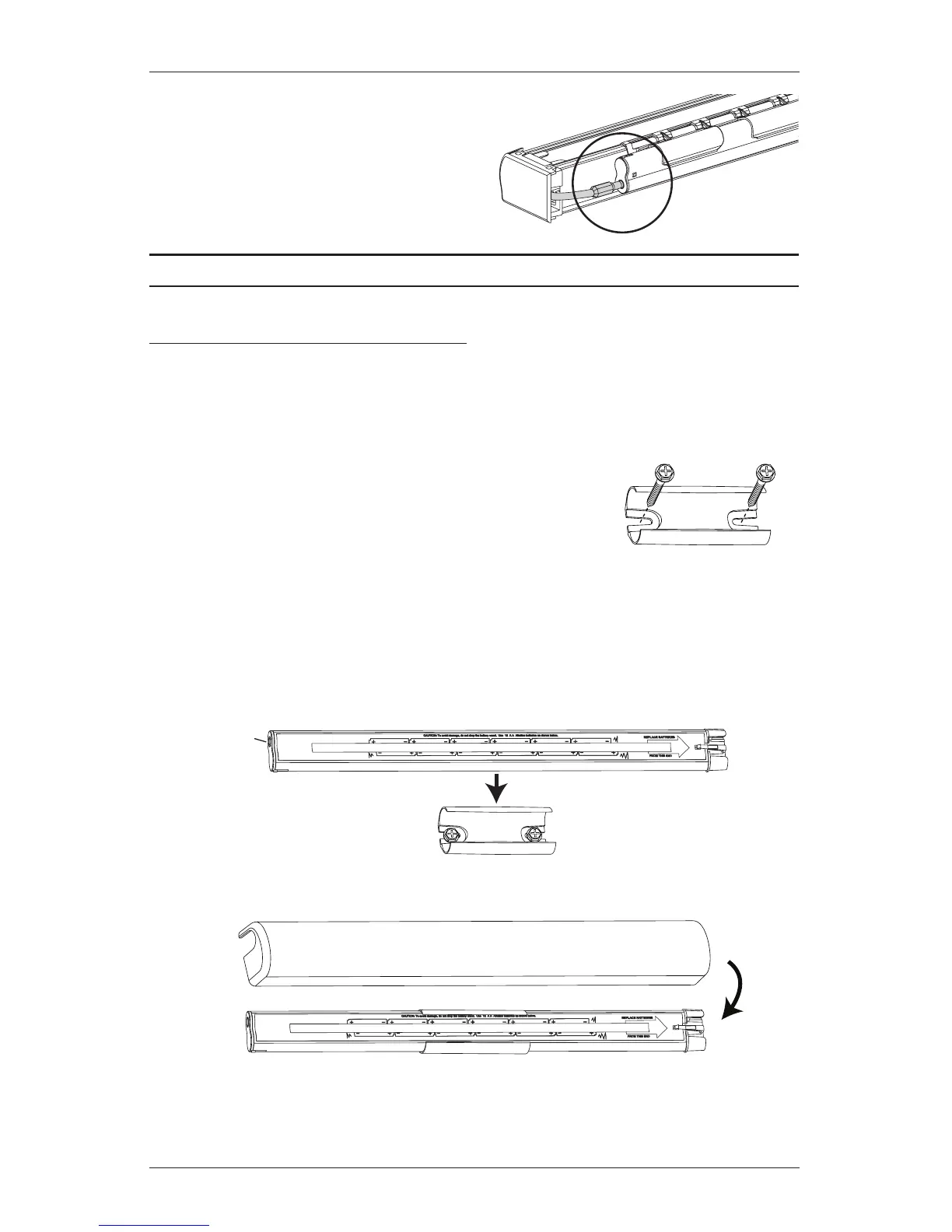

Plug the Power Cable into the Battery Wand
■
On the back of the headrail, connect the
power cable (coming from the shade) into
the socket on the battery wand.
Proceed to “Testing the Shade” on page 14.
If You Have a Satellite Battery Pack...
Install Batteries into the Battery Wand
■
See the instructions on the previous page.
Mount the Satellite Battery Pack
■
Decide where you want to attach the wall mount bracket.
A satellite battery pack may be mounted in any orientation.
■
Mark the screw holes.
■
Drill the screw holes using a
3
/
32
" drill bit.
■
Remove the backing from the double-sided tape. Press the bracket into place.
■
Attach the bracket using the screws provided.
■
Position the battery wand so the power cable is easily connected to the socket.
■
Snap the battery wand into the bracket.
■
Install the battery wand cover with the slot aligned to the socket in the battery wand.
Wall Mount Bracket
Socket
Battery Wand Cover
Slot
Socket
