HunterDouglas Applause - DC Power Supply Connection; Daisy-Chain DC Power Supply for Multiple Shades

Installation
12
■

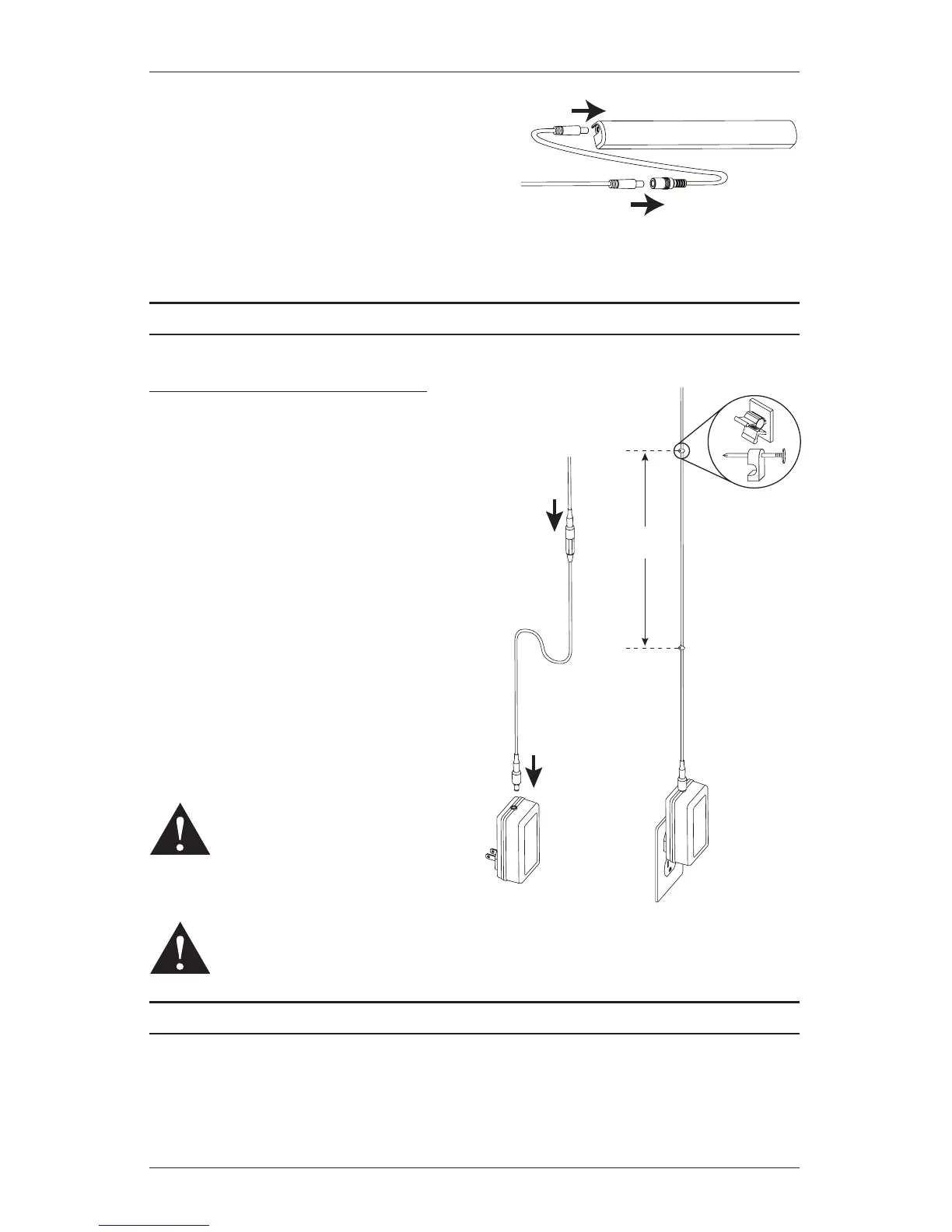

Plug the power cable from the shade into the
extension cable.
■
Plug the other end of the extension cable
into the socket in the battery wand.
■
Secure the power supply cable using wire
retainers (not supplied). If hiding the cable
behind the shade, make sure it does not impede the operation of theshade.
Proceed to “Testing the Shade” on page 14.
If You Have a DC Power Supply...
Connect the Power Supply
■
Plug the power cable from the shade into
the extension cable.
■
Plug the other end of the extension cable
into the DC power supply.
■
Plug the DC power supply into a standard
outlet.
■
Secure the extension cable using wire
retainers (not supplied). If hiding the cable
behind the shade, make sure it does not
impede the operation of theshade.
■
Space the wire retainers approximately
15" apart along the power supply cable,
as shown.
WARNING: Keep cables and small
parts out of the reach of children.
They can wrap cables around their
necks and STRANGLE. They can
also put small parts in their mouths
and CHOKE.
WARNING: Electric shock and/or a fire hazard may occur, if not properly installed.
Proceed to “Testing the Shade” on page 14.
Battery Wand Cover
Extension
Cable
Power Cable
from Shade
Power Cable
from Shading
Extension
Cable
DC
Power
Supply
15"
Maximum
Wire Retainers
