Installation
13
If You Have a DC Power Supply with Daisy-Chain Connections...
The daisy-chain feature allows up to three PowerView
™
motorized shades to be powered
by a single DC power supply. However, each shade has its own RF receiver and can operate
independently. The daisy-chain feature is only available with the DC power supply option.
■
Route the power cables from each shade through the connector, using an extension cable,
if necessary.
■

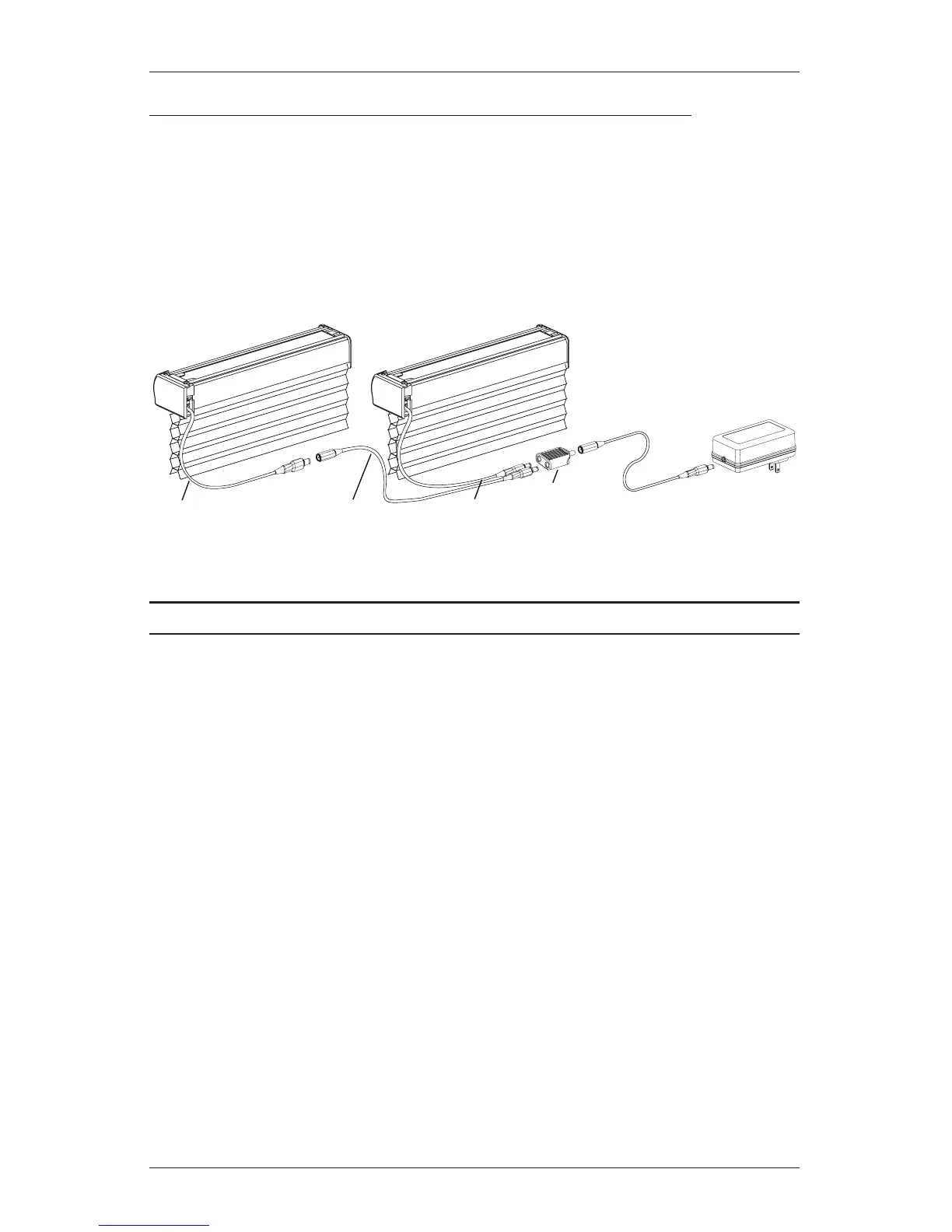

Plug an extension cable into the connector and the DC power supply. A two-shade
configuration is shown below.
■
An additional connector and two additional extension cables are used for three shades.
Proceed to “Testing the Shade” on page 14.
Power Cable
To Next Page
