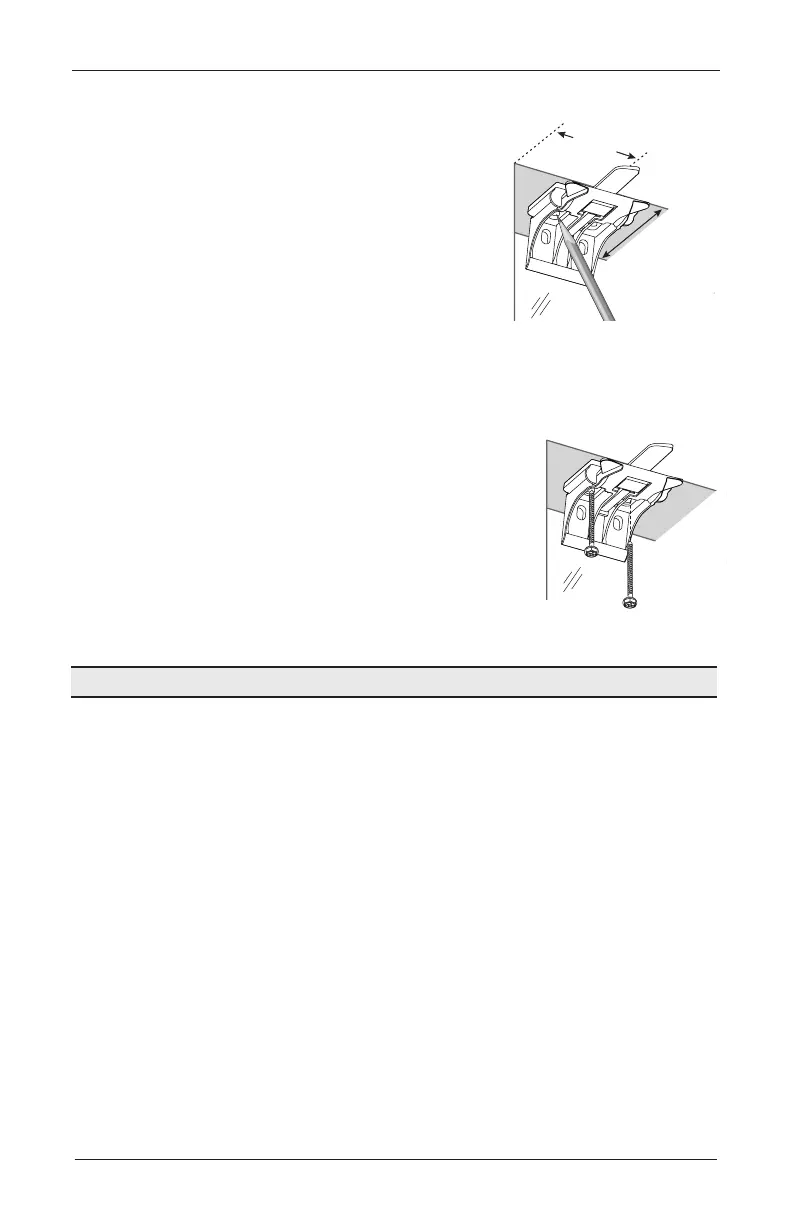

Center the brackets on your marks and mark the location of the screw holes.
➤
The minimum casement depth required for
installation brackets is 1".
➤
The minimum casement depth required for a fully
recessed mount is 3
3
⁄ 16 ". For depths greater than
3
3
⁄ 16 " where a flush mount is desired, place the back
of the bracket at 3
3
⁄ 16 ".
■
Use a level to check that the mounting surface is level.
Shim the brackets, if necessary (use the top tab that
was removed from the brackets).
■
Drill the screw holes using a
3
⁄ 32 " drill bit.
CAUTION: Use drywall anchors when mounting
into drywall.
■
Attach the installation brackets using the screws provided.
IMPORTANT: Do not overtighten the screws. Check to
ensure the bracket lever can be moved easily side to side.
If not, loosen the screws in one-eighth turn increments until
the lever can be moved easily.
IMPORTANT: The front edges of the installation brackets
must be level and aligned to eachother.
Proceed to “Install the Shade — Cassette” on page 11.
2" to 3"
Casement
Depth
