INSTALLATION — STANDARD/DESIGNER METAL BRACKETS
4

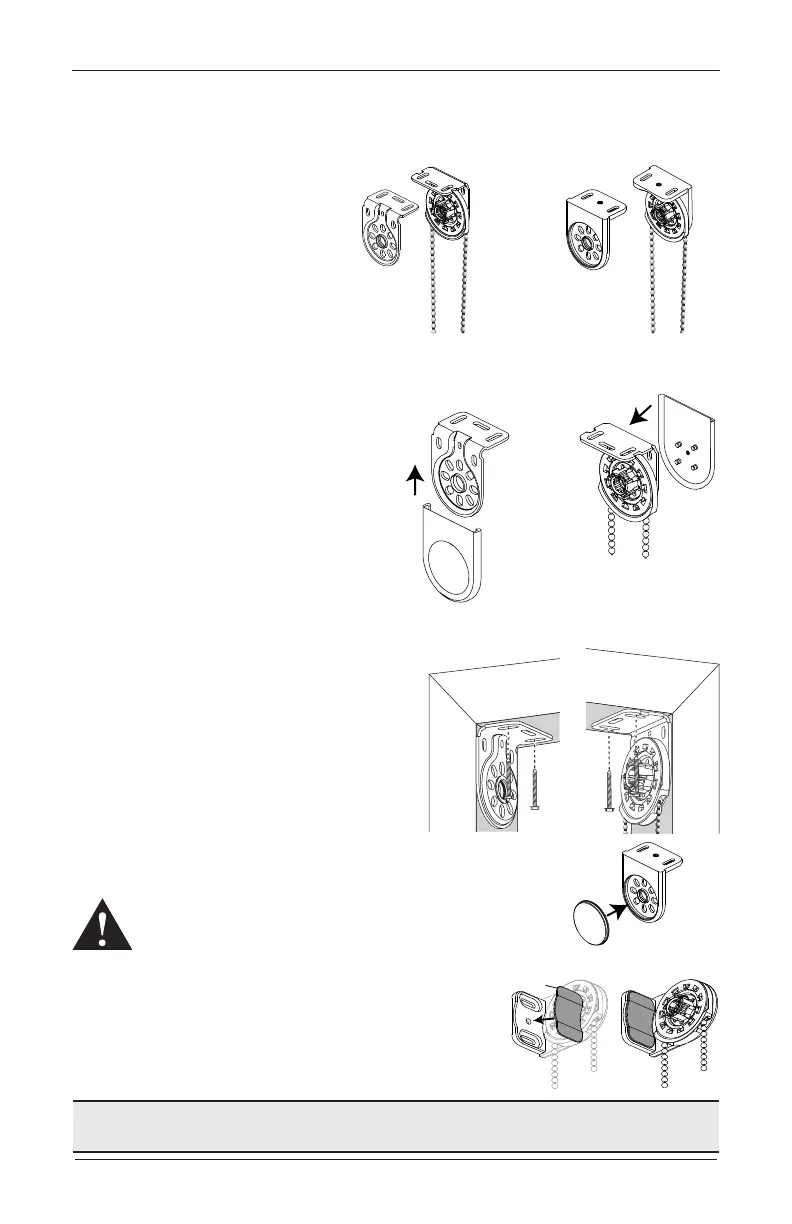

Mount the Standard/Designer Metal Brackets — Inside Mount
The installation brackets are supplied
in pairs: clutch side with the beaded
cord loop and idle. Identify which
side each of the brackets will go on
the shade based on your order.
■
Check the orientation of the chain
guide. The chain hangs from the
bottom of the chain guide. If it is
not, see “Change the Chain Guide
Orientation” on page 16.
■
If you ordered bracket covers, install the idle-side bracket cover by aligning the bracket
with the channels in the bracket cover and sliding it onto the bracket.
■
Install the clutch-side bracket cover by
snapping it onto the bracket.
■
Center the ordered width of the shade
and position the bracket in place while
maintaining a minimum of
1
⁄
16
" space
between the bracket and the side jamb.
Increase the space to
1
⁄
8
" for bracket
covers. Mark each of the screw holes.
IMPORTANT: The front edges of the
installation brackets must be level and
aligned to each other.
■
Drill the screw holes using a
3
⁄
32
" drill bit.
■
Use a level to check that the mounting
surface is level.
■
For Designer Metal Brackets. Install the
end cap into the back of the bracket.
■
Attach the installation brackets using the
screws provided.
WARNING: Mount into wood/metal studs or into
concrete with concrete anchors. Drywall anchors
are not recommended.
■
Designer Metal Brackets Only. Install the bracket
covers over screw holes by pushing into place.
Proceed to “Install the Shade — Standard/Designer Metal Brackets”
on page 6.
