1 - 6 Machine Components 704-0212-209 VM Series Maintenance and Safety Manual

Enclosure

A full chip enclosure is standard in every Hurco center.

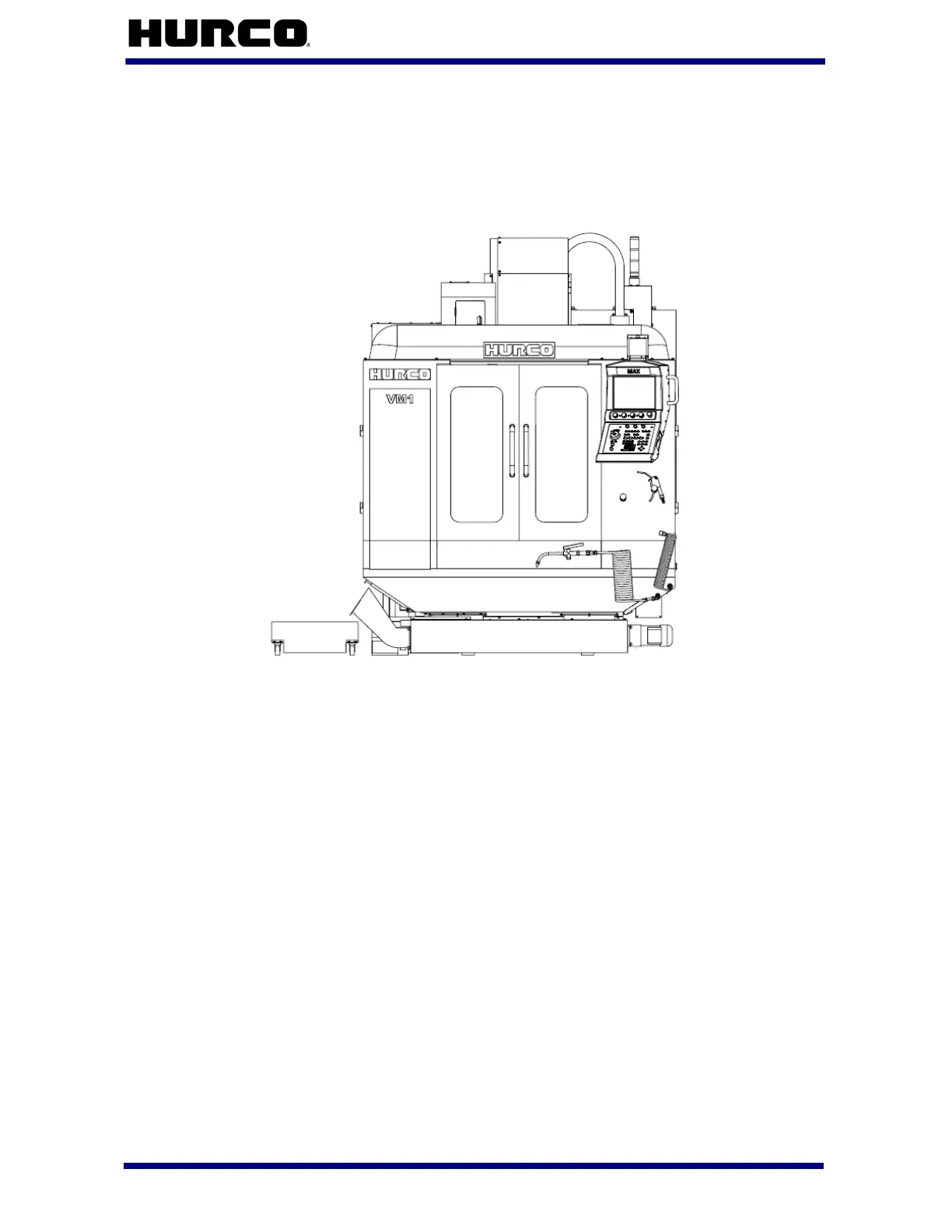

Figure 1–1. Full Chip and Coolant Enclosure

Standard features may include a flood coolant system with chip pan. An optional chip

conveyor may be installed. An optional chip auger may be available for installation on

some models. The VM10G is fully enclosed, and requires the use of a dust vacuum

system.

Consult Hurco or your Hurco distributor for details about purchasing options.
