1 - 28 Machine Components 704-0212-209 VM Series Maintenance and Safety Manual
Control Systems
Circuit diagrams for electrical, hydraulic, and pneumatic systems are available in the
Parts Listings and Wiring Diagram Manual for the machine.
Operator Control Console
VM10 and VM10U machines come with dual-screen or single-screen (Max) consoles;
VM10G, VM10P, VM20, and VM30 machines come with Max consoles. Contact your full
service distributor or Hurco for more information about console features.
The dual-screen console sits on a base-mounted pendant. Text is displayed on the left
screen, and graphics are displayed on the right. A USB (Universal Serial Bus) drive is
located on the right side of the console.
The Max console uses only one screen to alternately display text and graphics. It is
mounted to an overhead pendant arm, which the operator can position. A USB (Universal
Serial Bus) drive is located on the right side of the console.
For operating and programming information, refer to the on-screen Help or the manuals
that are available in PDF format on the machine’s hard drive.

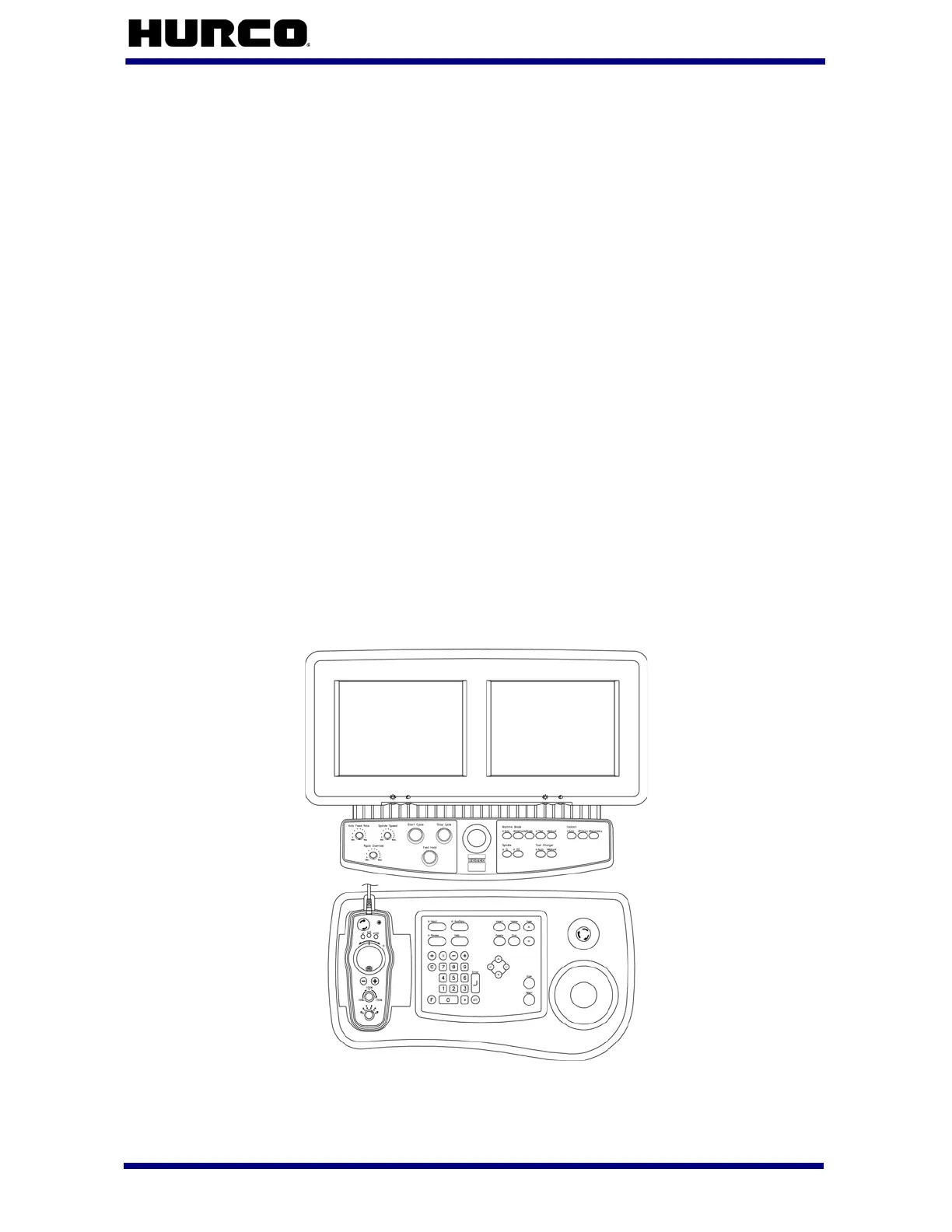

A dual-screen console is pictured below:
Figure 1–8. Dual-Screen Control Console
