Hurco VM10 - Figure 1-6. Communication Port Assembly; Table 1-15. Communication Ports

VM Series Maintenance and Safety Manual 704-0212-209 Machine Components 1- 25
COMM Panel
The communication panel is typically arranged with these ports:

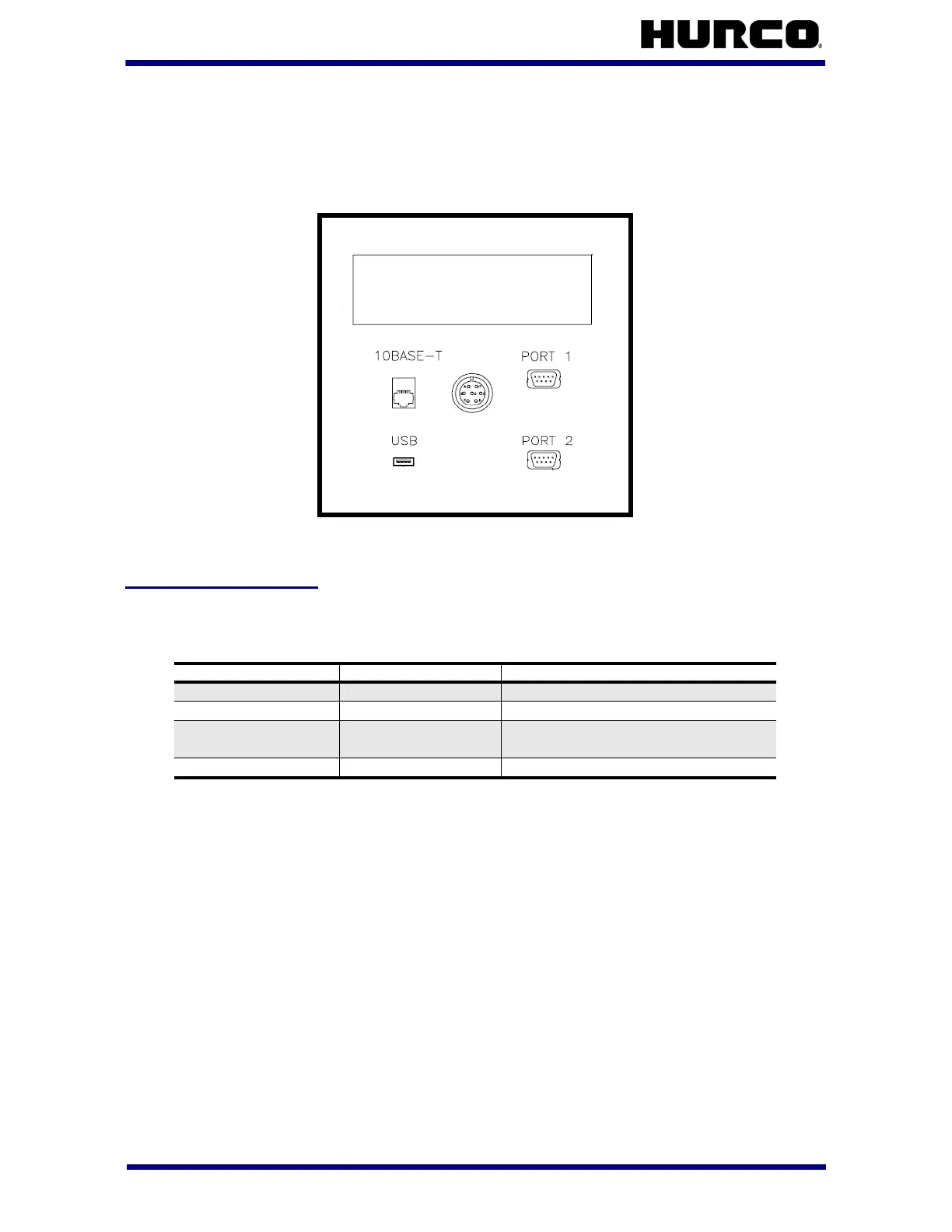

Figure 1–6. Communication Port Assembly
Communication Ports
All communication ports are located on the Comm Port panel assembly on the machine
control cabinet. The following connectors are available:
Table 1–15. Communication Ports
Port Connector Type Use
10/100-base T RJ45 Network (Ethernet) (option)
Indexer 7-pin military Indexer
PORT 1 and
PORT 2
9-pin RS-232C Serial Communications
USB USB jump drive Transferring files
