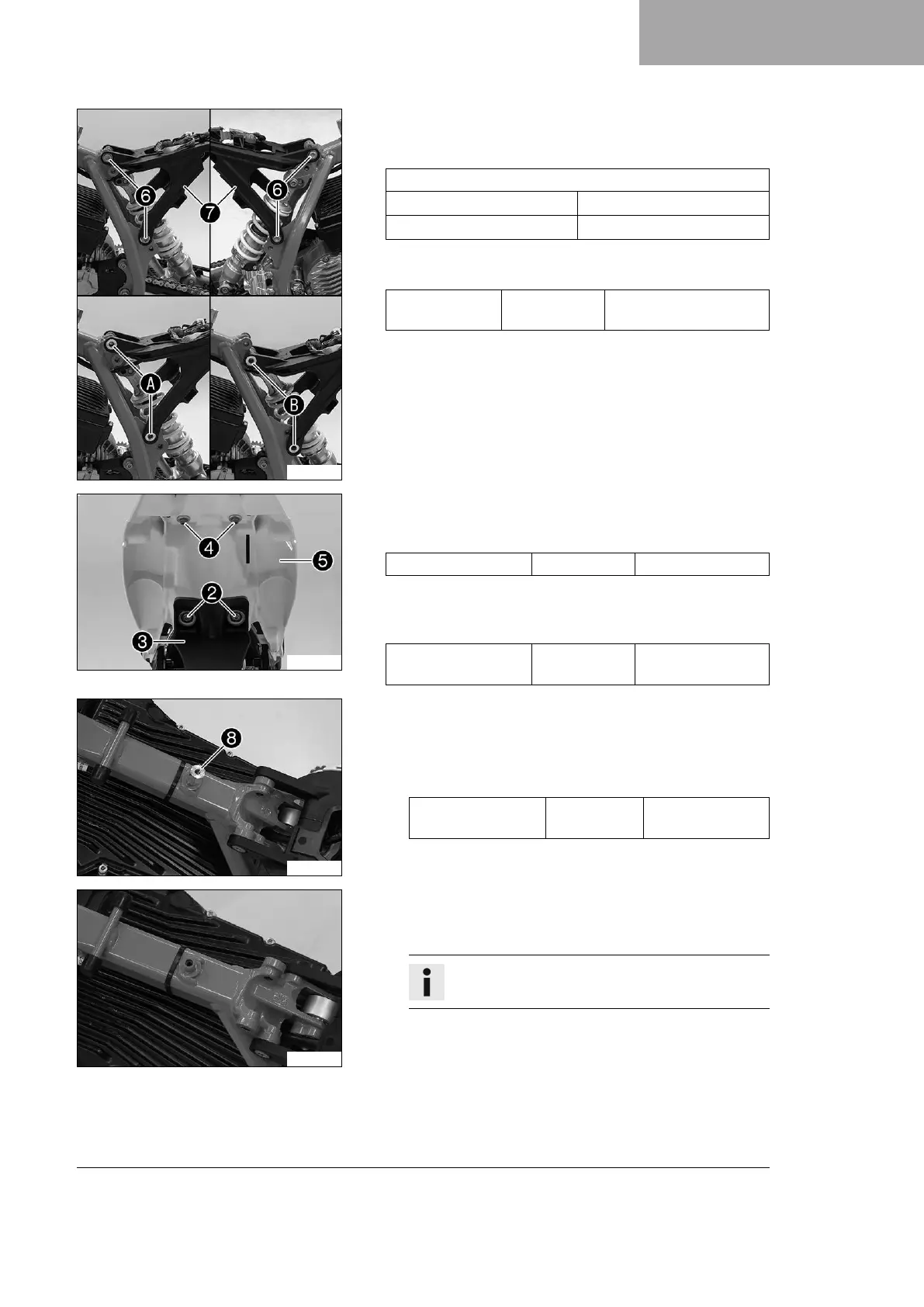

SEAT HEIGHT 12
43
M01677-10
–
Remove screws
6
and position subframe
7
at the drill
holes at the desired seat height.
Guideline
Pay attention to the wiring harness.
High seat position
Drill holes
A
Low seat position
Drill holes
B
–
Mount and tighten screws
6
.
Guideline
Screw, sub-
frame
M8 30 Nm (22.1 lbf ft)
Loctite
®
243™
M01707-10
–
Position rear fairing
5
, mount screws
4
with bushings,
and tighten.
Guideline
Rear fairing screw M6 8 Nm (5.9 lbf ft)
–
Position splash protector
3
, mount screws
2
with bush-
ings, and tighten.
Guideline
Screw, splash pro-
tector
M6 8 Nm (5.9 lbf ft)
M01678-10
Condition
High seat position
–
Make sure that thread adapter
8
is mounted and tight-
ened.
Guideline
Threaded adapter
for front fairing
M6 8 Nm (5.9 lbf ft)
M01679-01
Condition
Low seat position
– Make sure that the thread adapter is removed.
Info
Retain the thread adapter for later assembly.
