Husqvarna EE 5 2021 - Checking the Chain Tension; Adjusting the Chain Tension

SERVICE WORK ON THE CHASSIS 13
57

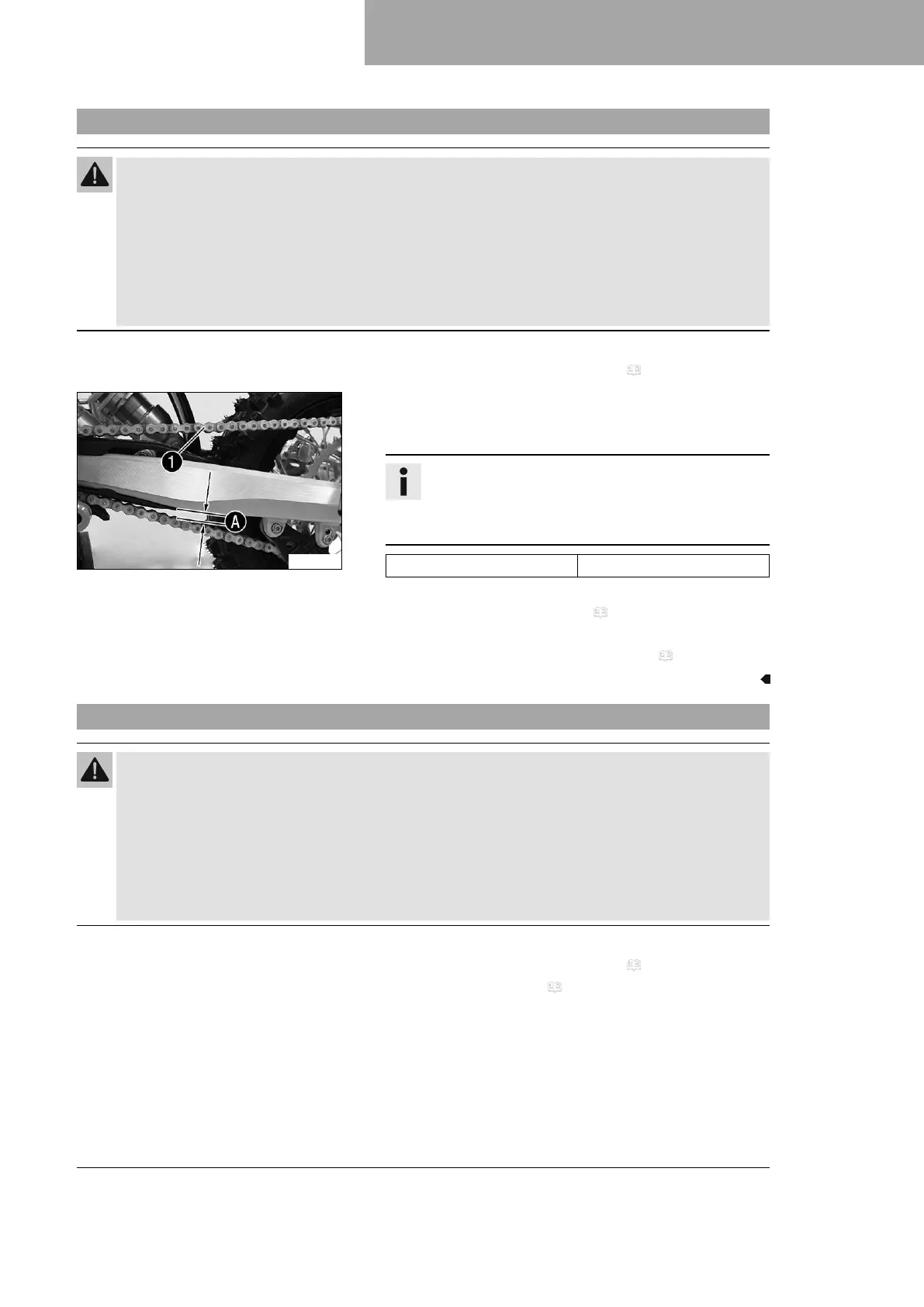

13.24 Checking the chain tension
Warning
Danger of accidents Incorrect chain tension damages components and results in accidents.
If the chain is tensioned too much, the chain, engine sprocket, rear sprocket, transmission and rear
wheel bearings wear more quickly. Some components may break if overloaded.
If the chain is too loose, the chain may fall off the engine sprocket or the rear sprocket. As a result, the
rear wheel locks or the engine will be damaged.
– Check the chain tension regularly.
– Set the chain tension in accordance with the specification.
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 45)
Q00400-10
Main work
– Press the chain upward at the end of the chain sliding piece
and determine chain tension
A
.
Info
The top part of chain
1
must be taut.
Chain wear is not always even, so you should repeat
this measurement at different chain positions.
Chain tension 5 … 8 mm (0.2 … 0.31 in)
» If the chain tension does not meet the specification:
– Adjust the chain tension. ( p. 57)
Finishing work
– Remove the motorcycle from the lift stand. ( p. 45)
13.25 Adjusting the chain tension
Warning
Danger of accidents Incorrect chain tension damages components and results in accidents.
If the chain is tensioned too much, the chain, engine sprocket, rear sprocket, transmission and rear
wheel bearings wear more quickly. Some components may break if overloaded.
If the chain is too loose, the chain may fall off the engine sprocket or the rear sprocket. As a result, the
rear wheel locks or the engine will be damaged.
– Check the chain tension regularly.
– Set the chain tension in accordance with the specification.
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 45)
– Check the chain tension. ( p. 57)
