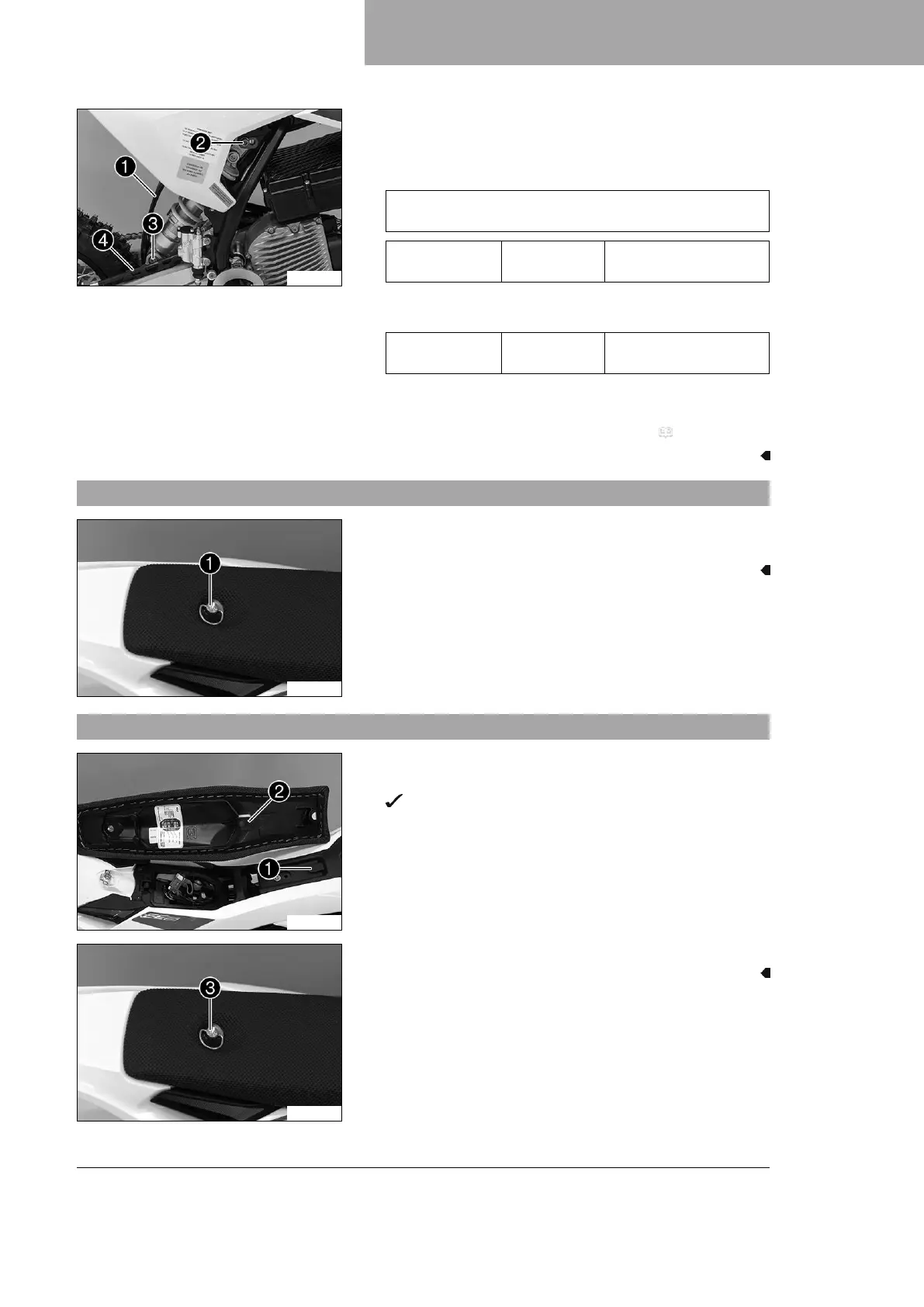

SERVICE WORK ON THE CHASSIS 13
55
M01724-10
Main work
–
Push splash protector
1
to the side.
–
Mount the shock absorber with screw
2
.
Guideline
If necessary, observe the installation position noted during
removal.
Screw, top
shock absorber
M10 45 Nm (33.2 lbf ft)
Loctite
®
243™
–
Lift the link fork, mount screw
3
and tighten it.
Guideline
Screw, bottom
shock absorber
M10 45 Nm (33.2 lbf ft)
Loctite
®
243™
–
Attach brake line
4
to the holder.
Finishing work
– Remove the motorcycle from the lift stand. ( p. 45)
13.20 Removing the seat
M01725-10
–
Open quick release
1
and raise the rear of the seat.
– Pull back the seat and remove it.
13.21 Mounting the seat
M01726-10
–
Hook the seat onto holding lug
1
, lower the seat at the rear,
and push it forward.
Holding lug
2
hangs on the front fairing.
M01725-11
–
Close quick release
3
.
