13 SERVICE WORK ON THE CHASSIS
58
Q00401-10

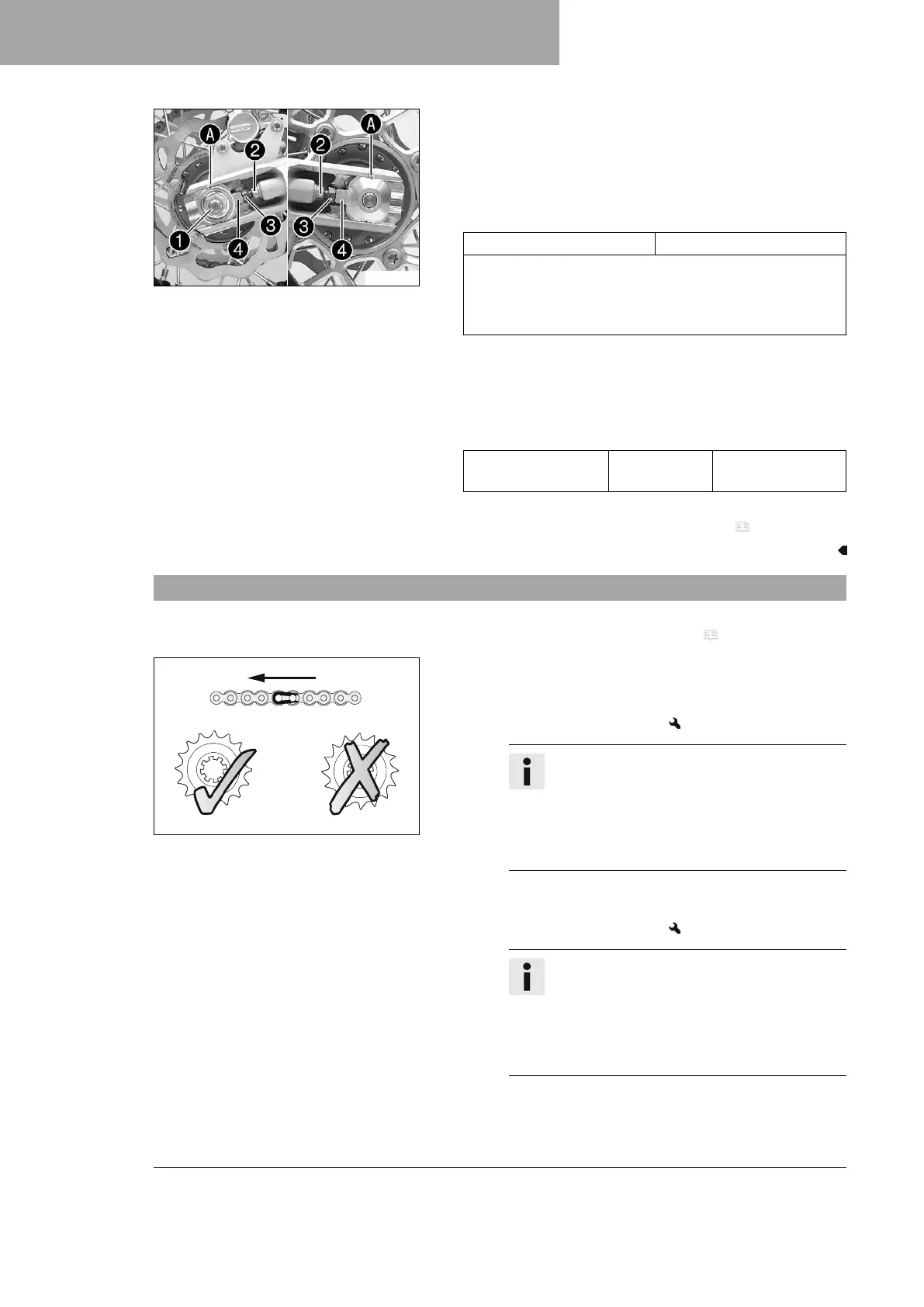

Main work
–
Loosen nut
1
.
–
Loosen nuts
2
.
–
Adjust the chain tension by turning adjusting screws
3
left
and right.
Guideline
Chain tension 5 … 8 mm (0.2 … 0.31 in)
Turn the adjusting screws
3
on the left and right so that
the markings on the left and right chain adjusters
4
are in
the same position relative to the reference marks
A
. The
rear wheel is then correctly aligned.
–
Tighten nuts
2
.
–
Make sure that chain adjusters
4
are fitted correctly on
adjusting screws
3
.
–
Tighten nut
1
.
Guideline
Nut, rear wheel spin-
dle
M12x1 40 Nm (29.5 lbf ft)
Finishing work
– Remove the motorcycle from the lift stand. ( p. 45)
13.26 Checking the chain, rear sprocket, motor sprocket, and chain guide
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 45)
400227-01
Main work
– Check the chain, rear sprocket, and motor sprocket for wear.
» If the chain, rear sprocket or motor sprocket is worn:
– Change the drivetrain kit.
Info
The motor sprocket, rear sprocket, and chain
should always be replaced together.
When fitting the chain joint, always make sure
that the closed side of the joint faces forward
(riding direction).
– Check the chain for wear.
» If the chain is worn:
– Change the drivetrain kit.
Info
When a new chain is mounted, the rear
sprocket and motor sprocket should also be
changed.
New chains wear out faster on old, worn
sprockets.
