HYDRAULIC FEED CONTROL
The hydraulic feed controls are located above and behind the electrical panel and consist of the Feed Force
Setting knob, the Feed Rate knob and the Head Fast Approach lever. These controls allow the operator to
independently control both the Feed Force and the Feed Rate, two essential settings which are detailed in the
Hydraulic Feed Control section on page 2.7.
MANUAL OPERATION CONTROLS
The electrical switchs and buttons on the right side of the control panel allow for full manual operation of the
V-18 II. The operation of each is detailed on the following pages.

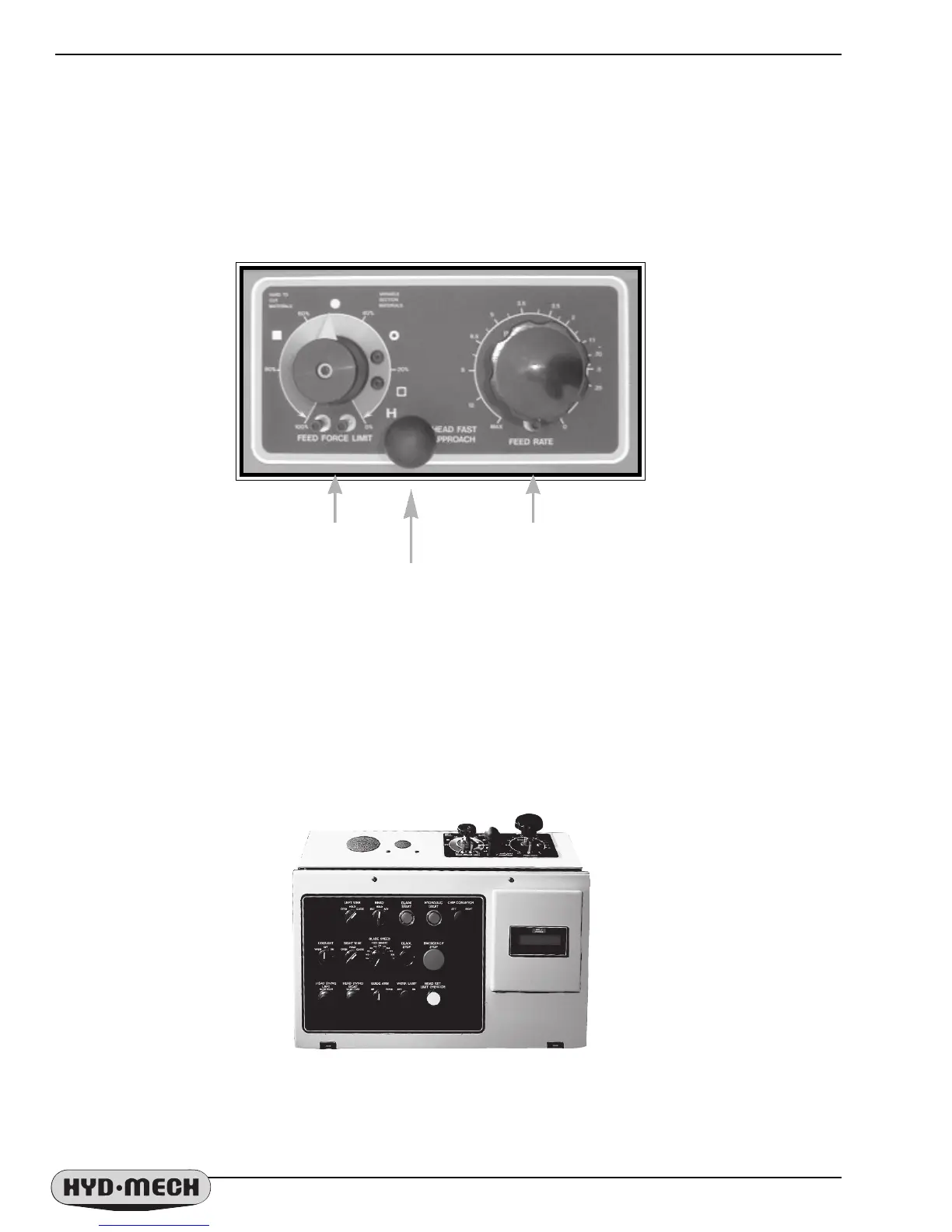

Manual operation controls.
Feed Force Control
Fast Approach
Feed Rate Control
