SECTION 5, HYDRAULIC SYSTEM
The V-18 II hydraulic system does not require any special work on a new machine before its start-up. The
hydraulic tank is filled with Conoco Super Hydraulic 46 oil and all machine functions have been tested at the
factory to ensure the proper operation upon initial start-up.

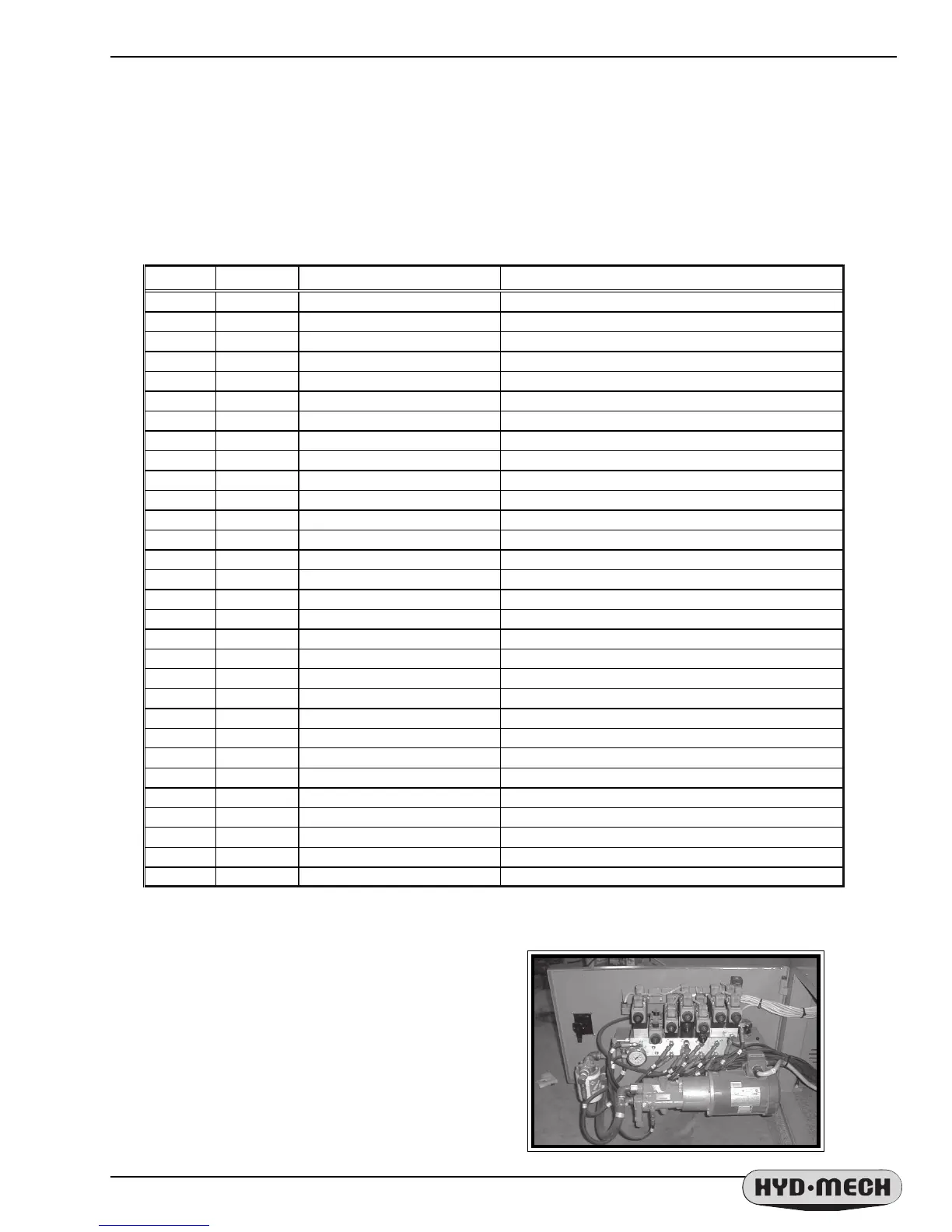

V-18 II HYDRAULIC PARTS LIST
V18 Hydraulic manifold assembly
ITEM QTY V-18 PART NUMBER DESCRIPTION
1
1 V18-C4-00 HEAD CYLINDER
2
2 V18-C3-00A VISE CYLINDER
3
1 S25-C5-00 BLADE TENSION CYLINDER
4
1 V18-C6-00 GUIDE ARM CYLINDER
5
(1) V18L-6-00A GUIDE ARM CYLINDER (extended head)
6
1 V18-C7-00 HEAD SWING CYLINDER
7
(1)(2) V18-531-00 BUNDLING CYLINDER (option)
8
(1)(2) V18-C10-00 LIFT ROLLER CYLINDER (option)
9
1 DCV3P-AB-T HEAD CONTROL VALVE
10
2 DCV3P-AB-C VISE VALVES
11
1 DCV3P-AB-C BLADE TENSION VALVE
12
1 DCV3P-AB-T GUIDE ARM VALVE
13
1 DCV3P-AB-T HEAD SWING VALVE
14
1 DCV3P-AB-C CHIP AUGER VALVE (option)
15
3 DPCH-1 DOUBLE PILOT CHECK VALVE
16
1 CHB-15_C SWING CUSHION BLOCK
17
1 DDF5-0-00 DOWN FEED VALVE
18
1 MB6P_A MANIFOLD BLOCK (6 position)
19
2(3) PG-10 PRESSURE GAUGE (1000psi)
20
1 HM-01 CHIP AUGER MOTOR (option)
21
1 HYP-1 PUMP
22
1 TFS-100-0-P SUCTION STRAINER
23
1 SF 6520 RETURN FILTER
24
1 EB-01A EXTENSION BLOCK
25
1 JB-01B SINGLE JUNCTION BLOCK (VVP OPTION)
26
1 PRV1-10-K-6T-12 PRESSURE REDUCING VALVE (VVP OPTION)
27
1 PV2P-A-C SWING CUSHION VALVE
28
1 PV2P-A-C HOLD VALVE
29
1 DGMX2-3-PPBWS40 PRESSURE REDUCING, bld tension
30
1 DGMX2-3-PPBWS40 PRESSURE REDUCING VALVE, head
