Hyd-Mech V-18 - Vise Assembly

Pg 6.9 V18 2001c

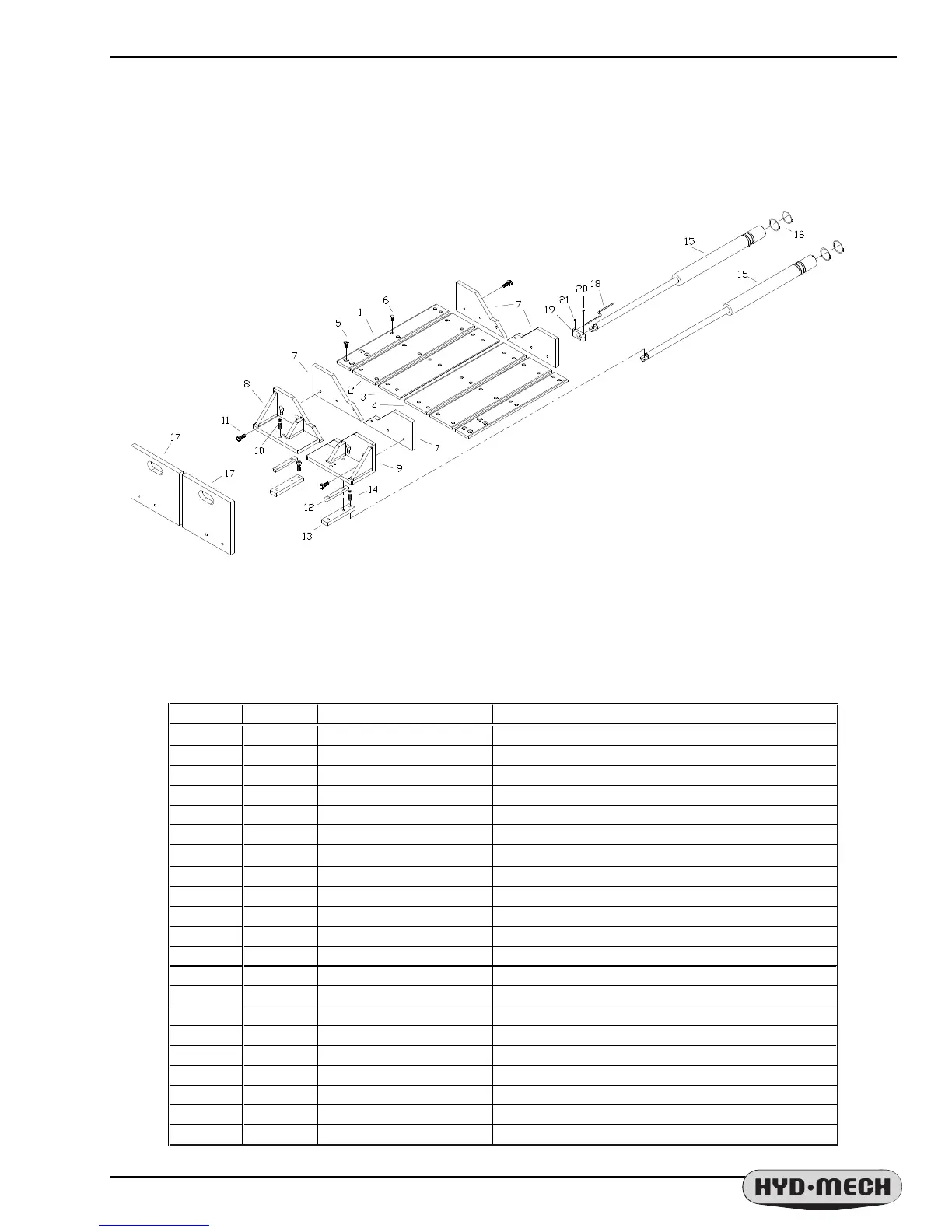

VISE ASSEMBLY
ITEM QTY V18 PART NUMBER DESCRIPTION
1
2 V18-1-02A WEAR STRIP, OUTER
2
2 V18-1-03B WEAR STRIP, MIDDLE
3
1 V18-1-05B WEAR STRIP, INNER RH
4
1 V18-1-04B WEAR STRIP, INNER LH
5
8 F1-.5x1 FLAT SOCKET HEAD CAP SCREW
6
32 F1-.312x1 FLAT SOCKET HEAD CAP SCREW
7
2 or 4 V18-5-03E (V18C-5-02A)
VERTICAL WEAR STRIP (for 6
O
canted head)
8
0 or 1 V18-5-05B LEFT MOVABLE VISE
9
0 or 1 V18-5-06B RIGHT MOVABLE VISE
10
2 or 4 A1-.5x2 SOCKET HEAD CAP SCREW
11
2 or 4 FL1-.5x1.5 FLANGED HEX HEAD CAP SCREW
12
2 or 8 V18-5-01A VISE KEY
13
1 or 2 V18-5-02B VISE GIB
14
1 or 2 A2-.375x1.25 SOCKET HEAD CAP SCREW
15
1 or 2 V18-C3-00A VISE CYLINDER
16
2 or 4 SH-0237-PA 2 3/8 EXTERNAL RETAINING RING
17
2 or 4 V18-5-04A HIGH VERTICAL WEAR STRIP (option)
18
1 V18-721-02 ROD, HEAD FORWARD L/S ACTUATOR
19
1 V18-721-01B ROD, HEAD FORWARD L/S ACTUATOR PLATE
20
1 A1-.19x.25 SOCKET HEAD CAP SCREW
21
1 S1-.19x.25C SOCKET SET SCREW, CUP POINT
