Hyd-Mech V-18 - Idler Wheel Assembly

Pg 6.4 V18 2001c

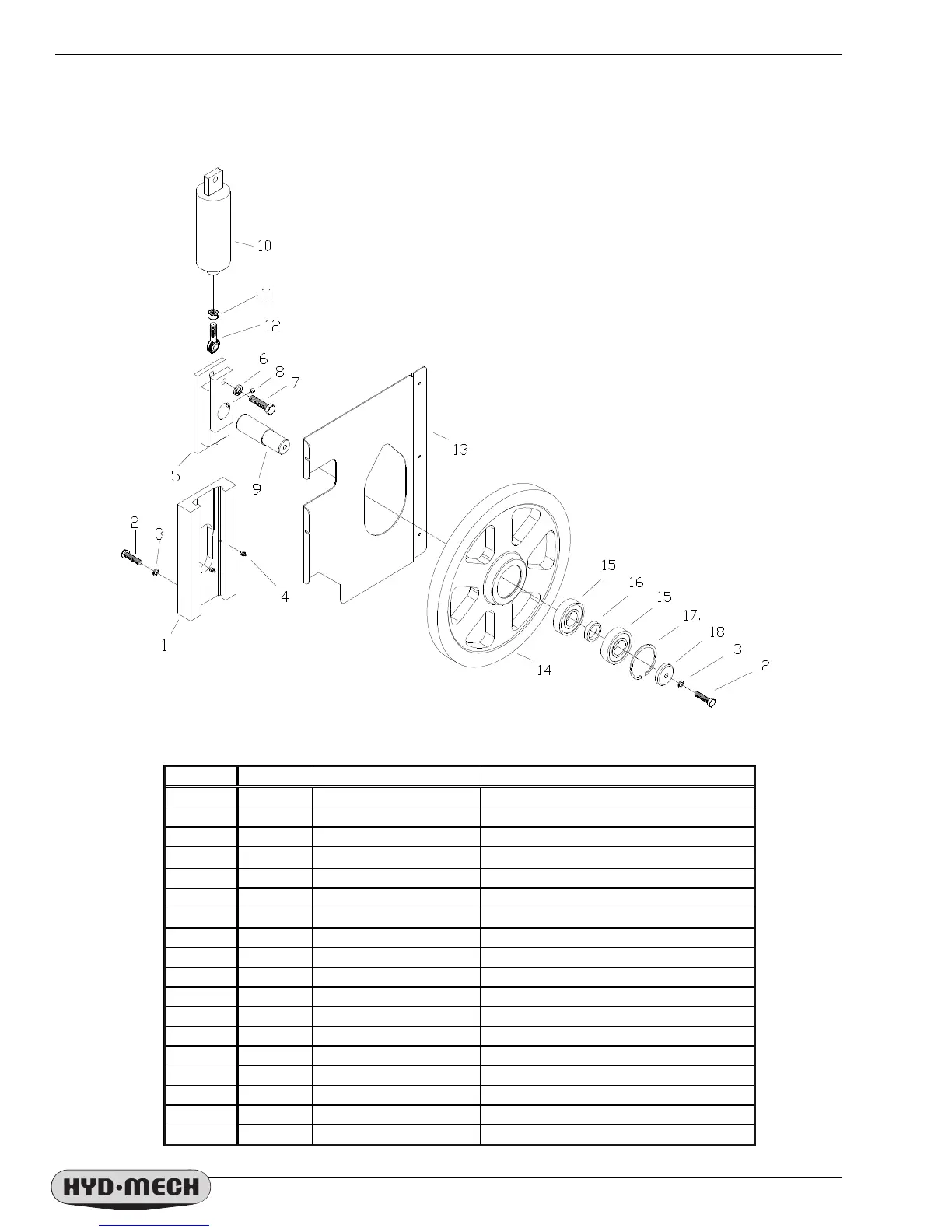

IDLER WHEELASSEMBLY
ITEM QTY V18 PART NUMBER DESCRIPTION
1
1 V18-43-02C IDLER WHEEL SLIDE TRACK
2
5 B1-.5x2.5 HEX HEAD CAP SCREW
3
5 .5LOC LOCK WASHER
4
2 60102
45
O
STEEL GREASE FITTING
5
1 V18-43-01F IDLER WHEEL CARRIER
6
1 .625LOC LOCK WASHER
7
1 B1-.625x2.25 HEX HEAD CAP SCREW
8
1 S1-.375x.375C SOCKET SET SCREW, CUP POINT
9
1 V18-43-03A IDLER WHEEL SHAFT
10
1 S25-C5-00 BLADE TENSION CYLINDER
11
1 5/8-18JNUT HEX JAM NUT,NF
12
1 AM-10 5/8 ROD END
13
1 V18-38-01A IDLER BOX LINER
14
1 W19-45A-01 IDLER WHEEL
15
2 6309 2RS BALL BEARING
16
1 S25-3-03C IDLER WHEEL BEARING SPACER
17
1 HO-0354-PA 3 9/16 INTERNAL RETAINING RING
18
1 WP-1-01 DRIVE & IDLER WHEEL RETAINER
