Hyd-Mech V-18 - Angle Scale Assembly

Pg 6.6 V18 2001c

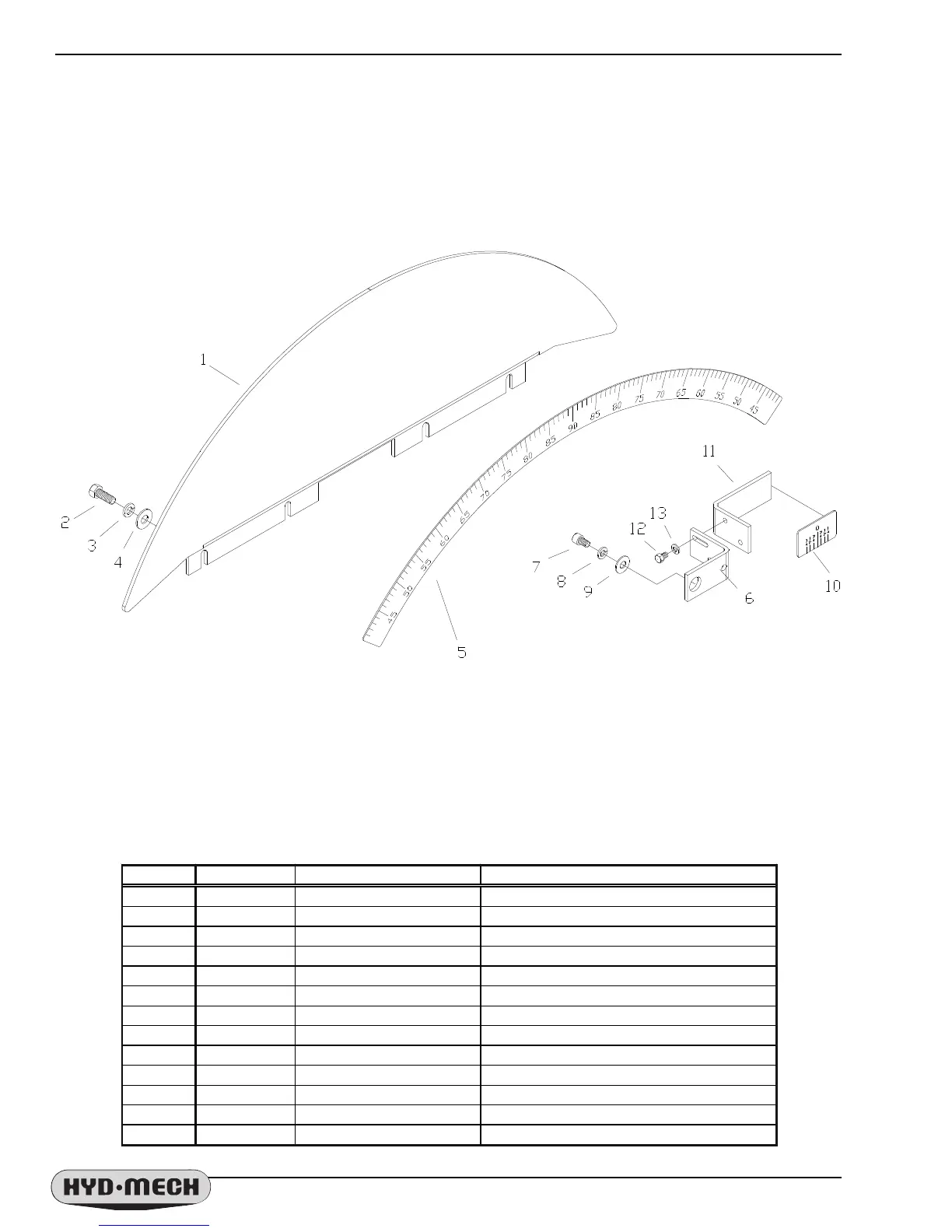

ANGLE SCALE ASSEMBLY
ITEM QTY V18 PART NUMBER DESCRIPTION
1
1 V18-91-01C ANGLE SCALE MOUNTING PLATE
2
4 B1-.375x1 HEX HEAD CAP SCREW
3
4 .375LOC LOCK WASHER
4
4 .375FLT FLAT WASHER
5
1 V18-95-02 ANGLE SCALE
6
1 V18-91-05G POINTER MOUNTING BRACKET BASE
7
1 A1-.312x.5 SOCKET HEAD CAP SCREW
8
1 .312LOC LOCK WASHER
9
1 .312FLT FLAT WASHER
10
1 V18-95-03A ANGLE VERNIER SCALE
11
1
9 
POINTER MOUNTING BRACKET
12
2
% [  
HEX HEAD CAP SCREW
13
2
/2&
LOCK WASHER
