Hyd-Mech V-18 - 1;2 Hp Drive Assembly

Pg 6.12 V18 2001c

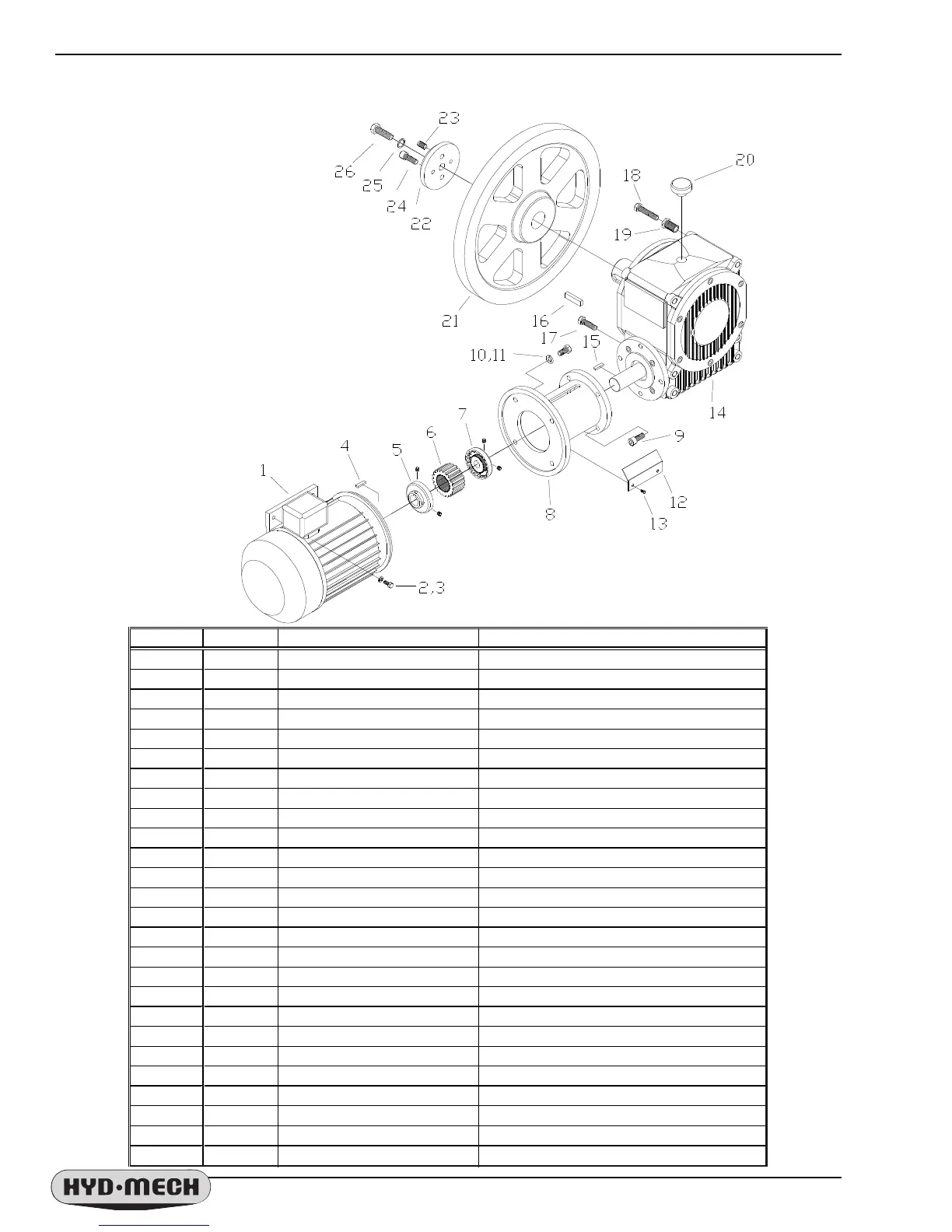

7 1/2 HP DRIVE ASSEMBLY
ITEM QTY V18 PART NUMBER DESCRIPTION
1
1 213TC 7.5 HP, 1800RPM, SPECIFY VOLTAGE
2
4 B1-.312x.75 HEX HEAD CAP SCREW
3
4 .312LOC LOCK WASHER
4
1 KEY MOTOR KEY
5
1 36103 COUPLING FLANGE
6
1 36394 COUPLING SLEEVE
7
1 53323 COUPLING FLANGE
8
1 v18-4011-00 MOTOR ADAPTOR
9
4 A3-12x50 METRIC SOCKET HEAD CAP SCREW
10
4 .5LOC LOCK WASHER
11
4 B1-.5x1.25 HEX HEAD CAP SCREW
12
1 V18-4010-01 ACCESS HOLE COVER
13
2 A2-.25x.5 SOCKET HEAD CAP SCREW
14
1 HM5E RENOLDS GEAR BOX 39:1
15
1 KEY GEARBOX INPUT KEY
16
2 KEY GEARBOX OUTPUT KEY
17
2 B3-16X50 METRIC HEX HEAD CAP SCREW
18
2 V18-4A-02 UPPER GB MRG BLT
19
2 V18-4A-01A GB ADJUSTING BOLT
20
1 HSP-3B-VBS BREATHER VENT, 3/8 BST
21
1 V18-1G4-04 DRIVE WHEEL
22
1 H16-4-02 DRIVE WHEEL CAP
23
2 S2-.5X2-F SET SCREW
24
2 B1-.5X3.25 HEX HEAD CAP SCREW
25
1 .875LOC LOCK WASHER
26
1 B3-20X70 MERTIC HEX HEAD CAP SCREW
