CUTTING PARAMETERS CHART
A full size PARAMETERS CHART is mounted on the front of the base. The chart contains five steps for the
operator to follow in order to achieve optimum performance of the saw. Details of these steps are explained in detail
beginning with step 1 below and on the following pages.
HYDRAULIC FEED CONTROL

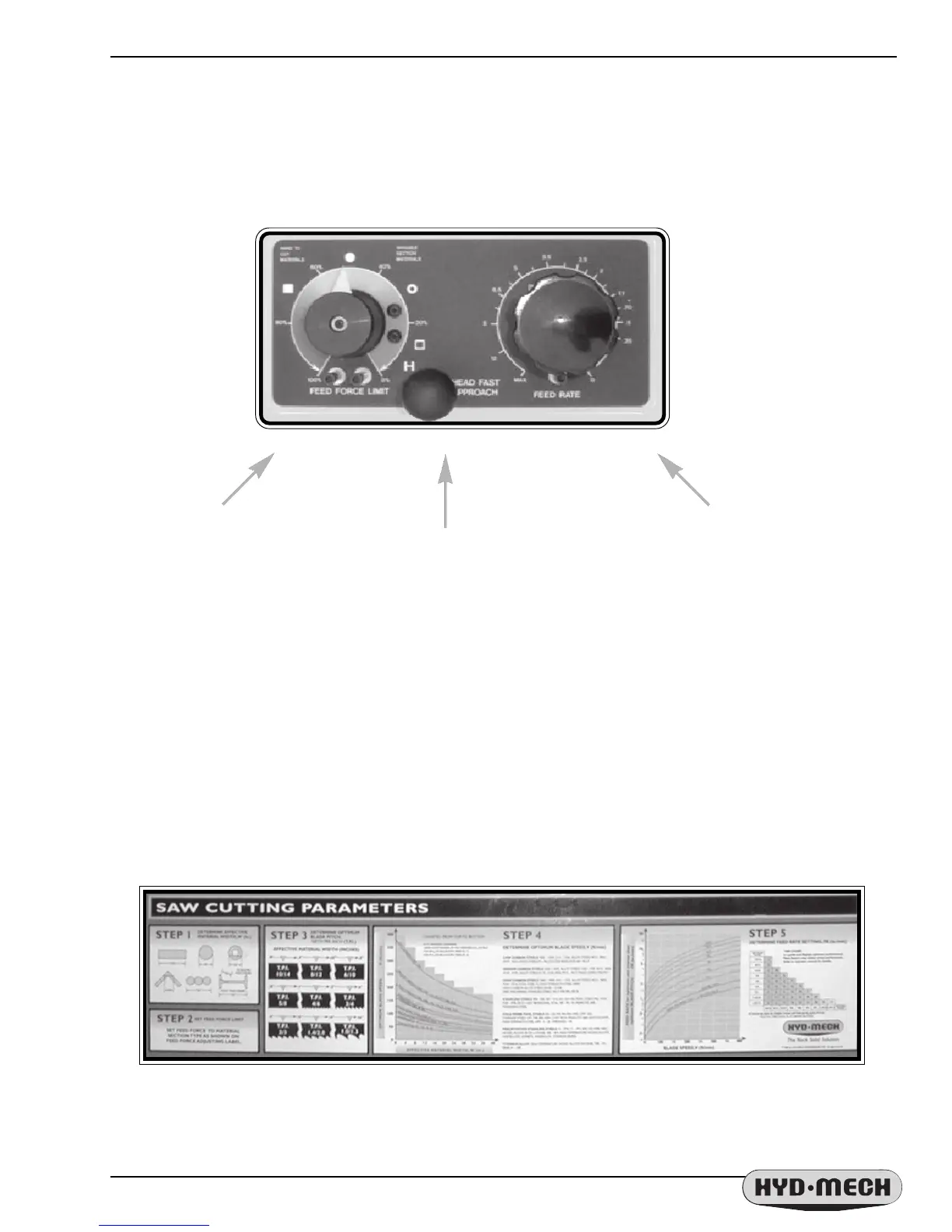

The Hydraulic Feed Control is located to the top of the control panel. These controls allow independent control of
Feed Force and Feed Rate.
Feed Force Knob
Used to set Feed Force
Limit (counterclockwise
rotation to increase and
clockwise rotation to
decrease).
Fast Approach Lever
Depress for fast head
approach.
Feed Rate Knob
Used to control the speed
of head advancement
Saw Cutting Parameter Chart
To Next Page
