Hyd-Mech V-18 - Bundling Assembly

Pg 7.4 V18 2001 a

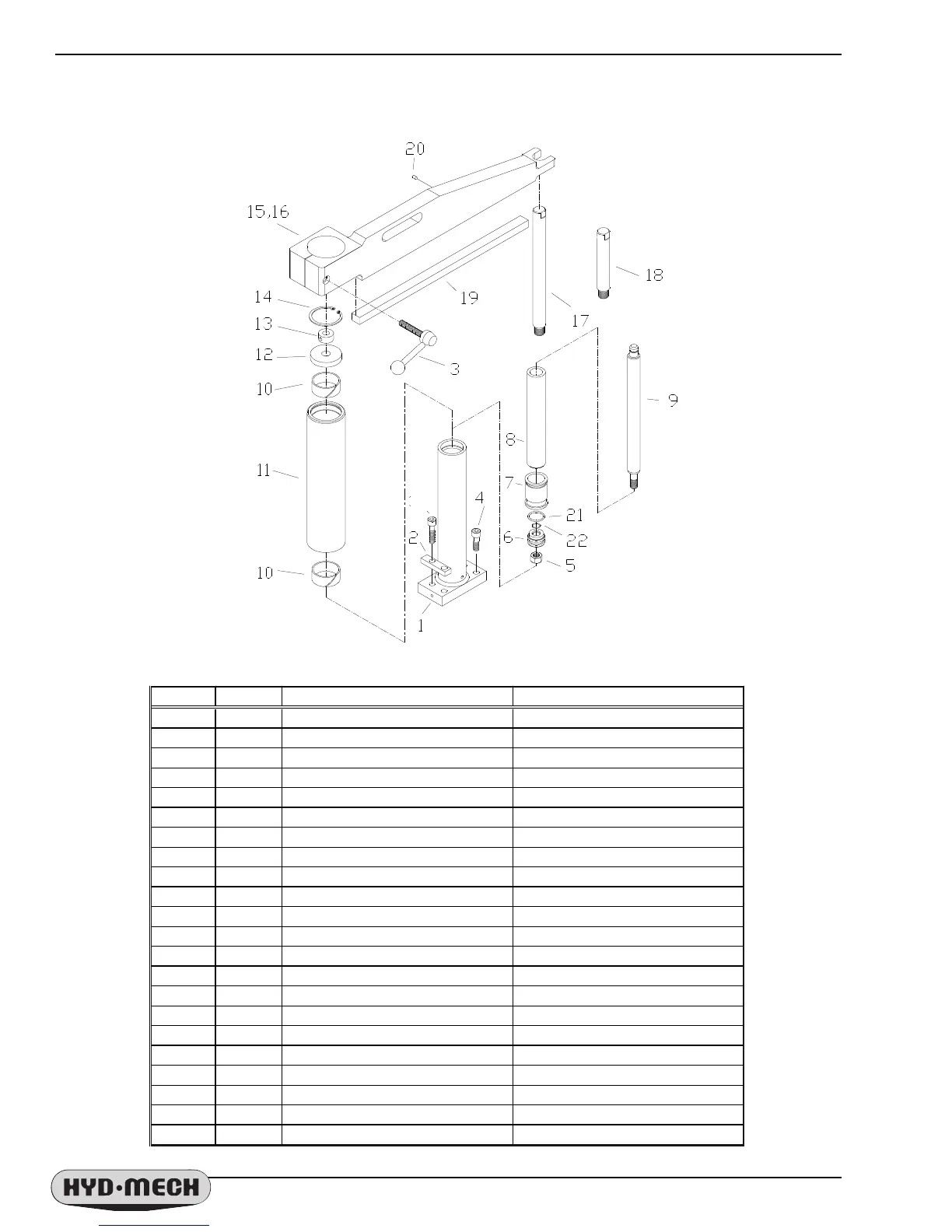

BUNDLING ASSEMBLY
ITEM QTY V-18 PART NUMBER (canted head) DESCRIPTION
1
1 V18-5311-00 (V18C-5311-00) BUNDLING CYLINDER TUBE
2
1 V18-53-04A BUNDLING WASHER
3
1 CL-830-AH-4BLK LOCKING HANDLE
4
2 A1-.5x1.5 SOCKET HEAD CAP SCREW
5
1 5/8NF HEX LOCK NUT
6
1 V18-531-02 PISTON
7
1 V18-531-03 SLEEVE
8
1 V18-531-04 (V18C-531-04) STOP TUBE
9
1 V18-531-01B (V18-531-01A) ROD
10
2 Z-HMS7.260TFE WEAR RING
11
1 V18-532-01A (V18C-532-01A) TUBE
12
1 V18-532-02 CAP
13
1 SC 5/8 SHAFT COLLAR c/w set screw
14
1 HO-0275-PA 2 3/4 INTERNAL RETAINING RING
15
0 or 1 V18-53-05 BUNDLING CLAMP, LEFT HAND
16
0 or 1 V18-53-06 BUNDLING CLAMP, RIGHT HAND
17
0 or 1 V18-53-02A BUNDLING GUIDE PIN, LONG
18
0 or 1 V18-53-03A BUNDLING GUIDE PIN, SHORT
19
1 V18-53-01 URATHANE STRIP
20
4 S1-.25x.5C SOCKET SET SCREW, CUP POINT
21
1 2-224 O RING
22
1 2-114 O RING
