MANUAL OPERATION CONTROLS,
continued

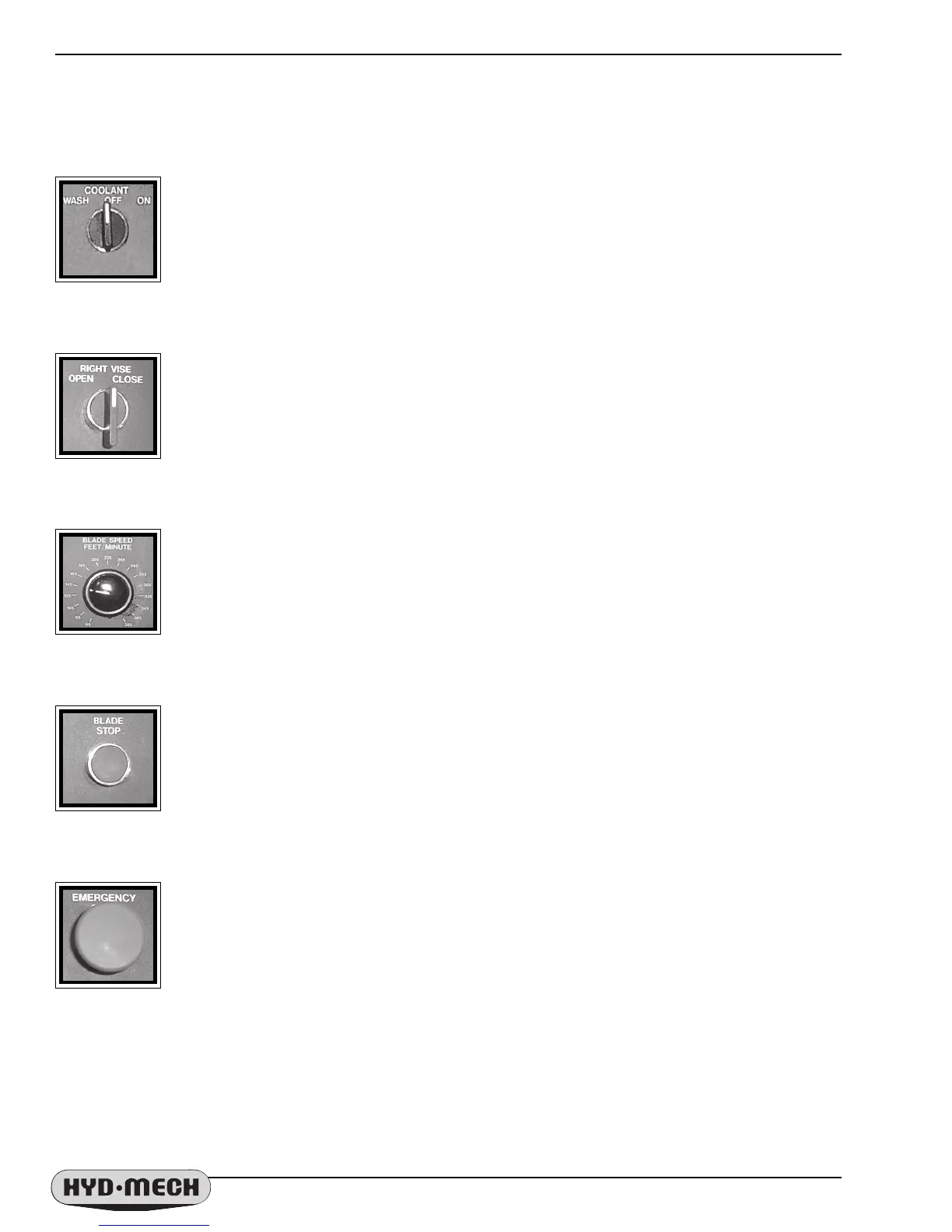

CENTER ROW
BLADE STOP:
Momentarily pressing this button will stop the blade motor.
RIGHT VISE SWITCH:
This switch operates the vise on the right side of blade. If the switch is left in the neutral
(center) position, the vise jaw will hold it's position.
EMERGENCY STOP BUTTON:
This button will stop both the hydraulic and blade motors. The head motion will cease. The
vises will remain as they are, but if closed, they will gradually lose gripping force. For this
reason all long stock should be supported so that it will not fall.
COOLANT SWITCH:
This switch has three positions - WASH, OFF and ON.
OFF:
No coolant flow.
WASH:
Coolant flows any time the machine is under power, permitting washdown with
the hose.
ON:
The coolant flows only when the Head is advancing into the cut.
BLADE SPEED DIAL:
This switch controls the blade speed which can be adjusted between 65 and 385 SFPM. The
blade speed corresponds to the setting of the dial in relation to the scale.
