HygroMatik Basic-DS - Control Parameters Submenu (under Startup Menu)

SPA
Page 27

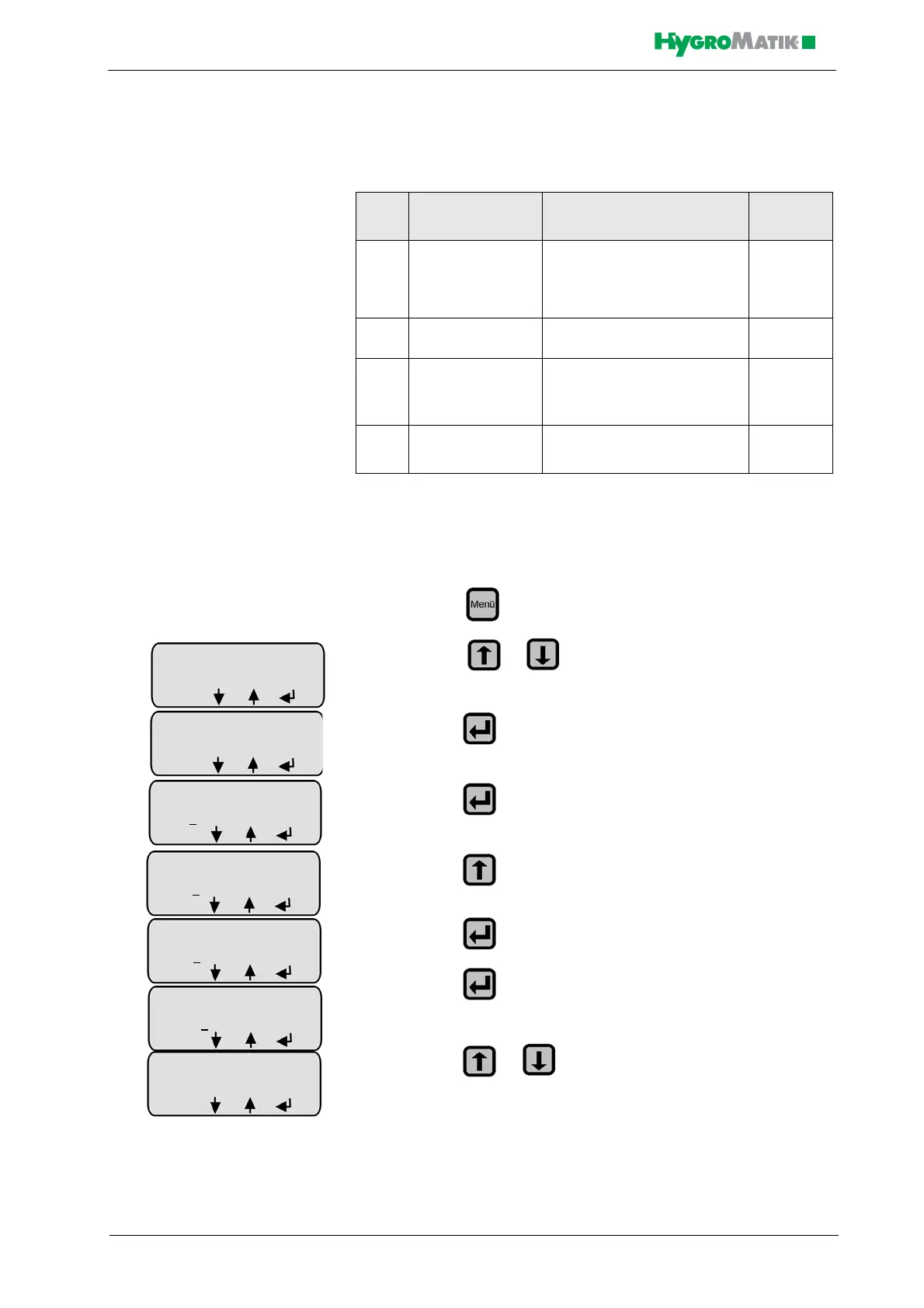

5.3.2.1 Control Parameters Submenu (under Startup
Menu)
Summary of Parameters:
Programming sequence to modify the control parameters.
Task: Parameter U6 should be reset from “internal PI-controller” to “1-
step”.
» press in Operating Mode,
» press or until “Commissioning Parameters”
appears on the display
» press
» press
» press
» press
» press
» press or until the submenu “Operation Mode
Parameters” appears on the display
»
Para-
meter
Description Possible Settings Access
Code
U6 Controls 1 Step (On/Off)
MODBUS
Mehrstufig
internal PI-controller
010
P1 Steam generation
output limiter [%]
25-100% 010
E1* Xp-PI-controller
=100/E1
[Amplification]
[0- 100 %] 010
E2* Tn-PI-controller
[Integration time]
[0- 255sec.] 010
* Only when internal PI-controller is activated
Sprache/Language
ESC
Commissioning
Parameters
ESC
Commissioning
Parameters
Code 0
00
ESC
Commissioning
Parameters
Code 00
0
ESC
Commissioning
Parameters
Code 01
0
ESC
Commissioning
Parameters
Code 010
ESC
System Test
ESC
