9.5.2 Connection for 230V exhaust/supply fan for
steam generators type C01 and C02
The base relay provides a potentialfree two-way contact at terminals
28, 29 and 30 (rated load: 250V/8A).
It is activated if certain operational conditions apply. The operational
condition “collective fault” is preset.
It is possible to associate another operational condition with the base
relay circuit, also see Section: “Summary Table of Parameters”,
“Parameter E5.”
If parameter E5 is set to „14=exhaust fan” the base relay is switched
when the exhaust fan should be active.
If parameter E5 is set to „13=supply fan” the base relay is switched
when the supply fan should be active.
Urspr. Ers.dErs.f
Blatt 1
von 1 Bl.
(Zeichnung Nr.)(Benennung)
(Datei)
steam bath option 230V f or C01 - C02
S-043214
S-043200C.001
HYGROMATIK
Lise-Meitner-Str. 3
D-24558 Henstedt-Ulzburg
Germany
Telefax
+49-(0)4193 / 895 - 33
Phone
+49-(0)4193 / 895 - 0
Änderung Datum Name
Bearb.
Gepr.
Norm
Datum
Zust.
31.05.11
Kb
Dampfbadoption 230V für C01 - C02
230V
22
Duftstoffgeber
essence
Zulüfter
suppl y fan
N'
1'
18
19 20

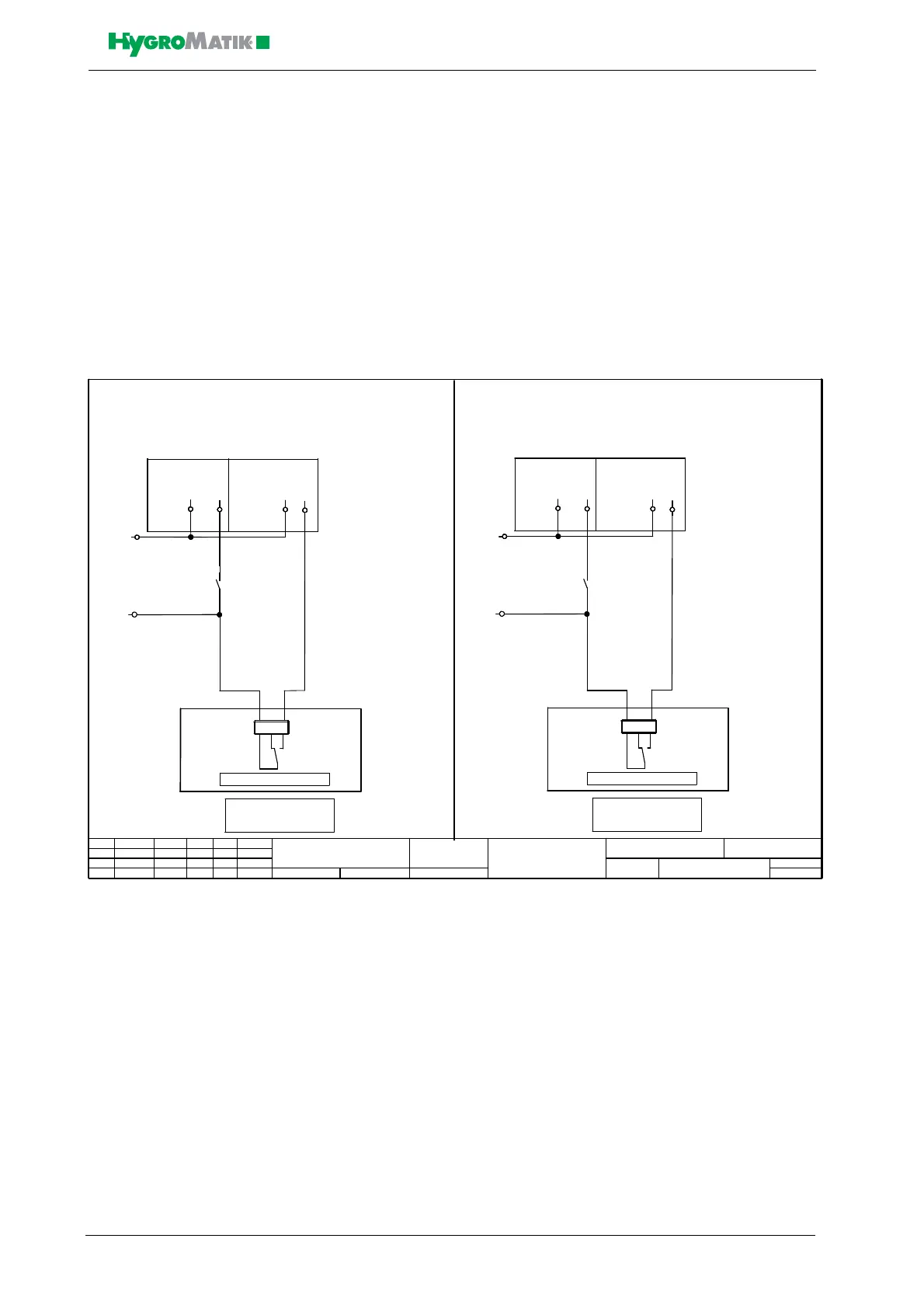

OPTION Zulüfter 230V für C01 und C02
