torch setup
3-28 powermax 45 Operator Manual
Connect the torch lead

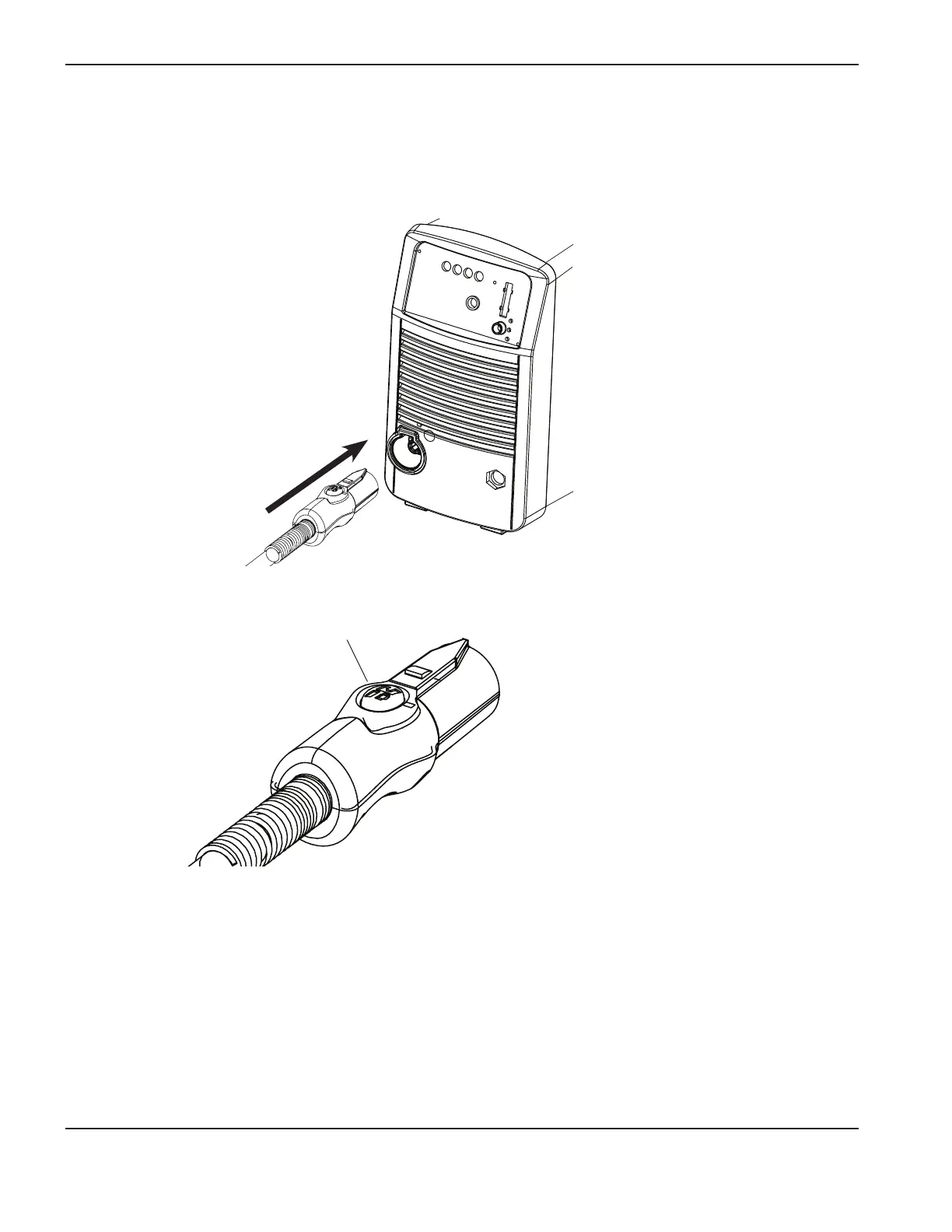

The Powermax45 has a FastConnect system for connecting and disconnecting the hand and machine torches. When
connecting or disconnecting a torch, first power OFF the system. To connect either torch, push the connector into
receptacle on the front of the power supply.
To remove the torch, press the red button on the connector and pull the connector out of the receptacle.
Red button

Hypertherm POWERMAX 45 Specifications

General

Output Current	45 A
Rated Output	45 A
Cutting Thickness	12 mm
Severance Thickness	19 mm
Cutting Method	Plasma
Gas Supply	Compressed Air or Nitrogen
Torch Lead Length	7.6 m
