PARTS
6-2 powermax 45 Operator Manual

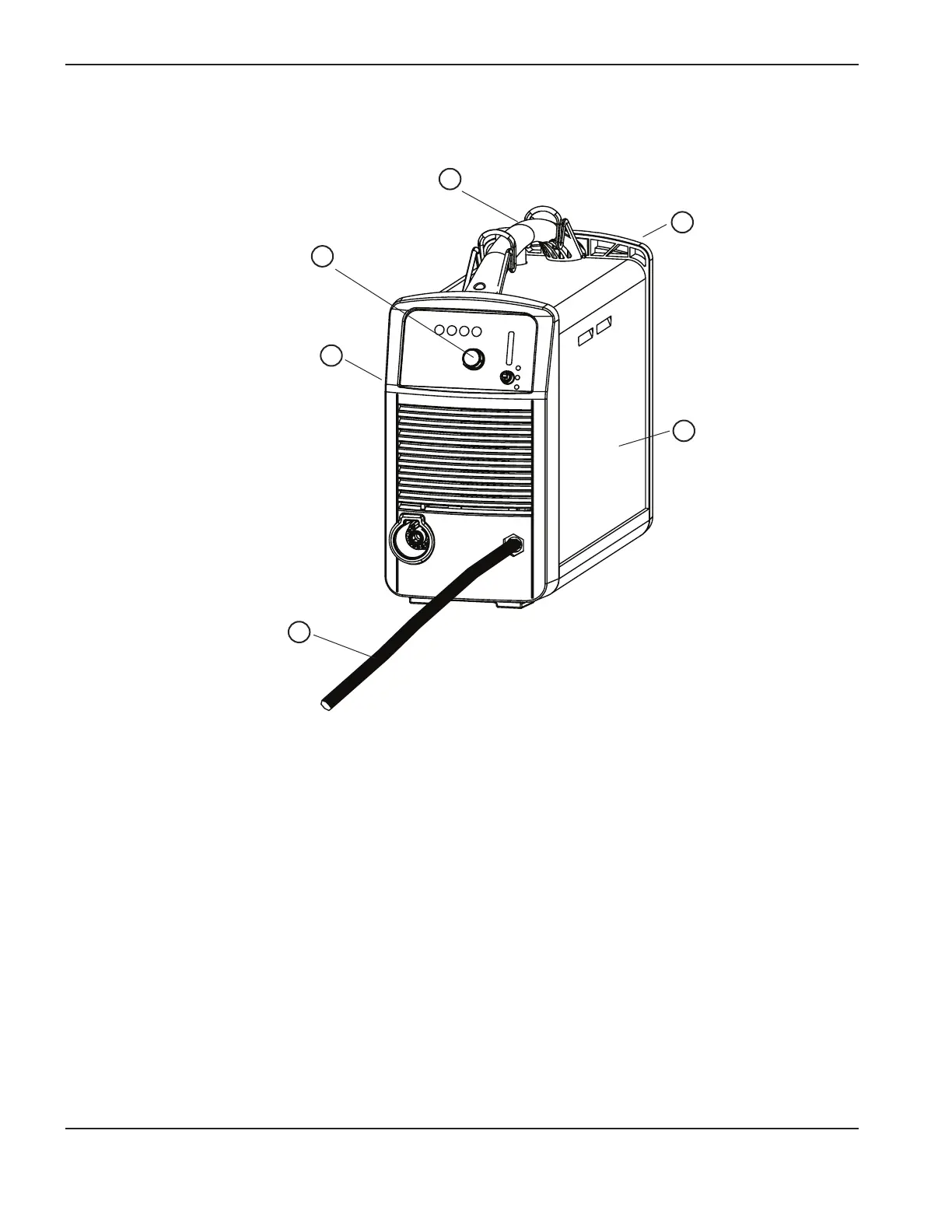

Power supply parts
1
2
3
4
5
6
Item Part number Description
1 228269 Kit: Front panel
2 228268 Kit: Rear panel
228270 Kit: Cover screws (not shown)
3 228267 Kit: Powermax45 handle and screws
4 228281 Kit: Power supply cover with labels, 200–240V CSA
228283 Kit: Power supply cover with labels, CE
428076 Kit: Power supply cover with labels (Built in America), 480V CSA
5 228300 Kit: Work lead assembly, 6.1m (20ft)
228307 Kit: Work lead assembly, 15.24m (50ft)
228561 Kit: Ground clamp (not shown)
6 108616 Current adjustment knob
