Parts
powermax 45 Operator Manual 6-7
The entire machine torch and lead assembly can be replaced, or individual component parts can be replaced. Part
numbers starting with 088 indicate complete torch and lead assemblies.
Item Part number Description
088010* T45m machine torch assembly with 7.62m (25ft) lead
088011* T45m machine torch assembly with 10.67m (35 ft) lead
088012* T45m machine torch assembly with 15.24m (50ft) lead
1 228228 Kit: T45m positioning sleeve
2 228229 Kit: T45m removable gear rack
3 228322 Kit: T45m front mounting ring
4 228323 Kit: T45m rear mounting ring
5 228320 Kit: T45m torch head replacement
6 228321 Kit: T45m cap-sensor switch replacement
7 058503 O-ring: Viton 0.626 x 0.070
8 228317 Kit: T45m torch lead replacement, 7.62m (25ft)
9 228318 Kit: T45m torch lead replacement, 10.67m (35 ft)
10 228319 Kit: T45m torch lead replacement, 15.24m (50ft)
* Top assembly includes one set of the following consumables:
220669 Electrode
220670 Swirl ring
220713 Retaining cap
220671 Nozzle
220673 Shield
1
4
5

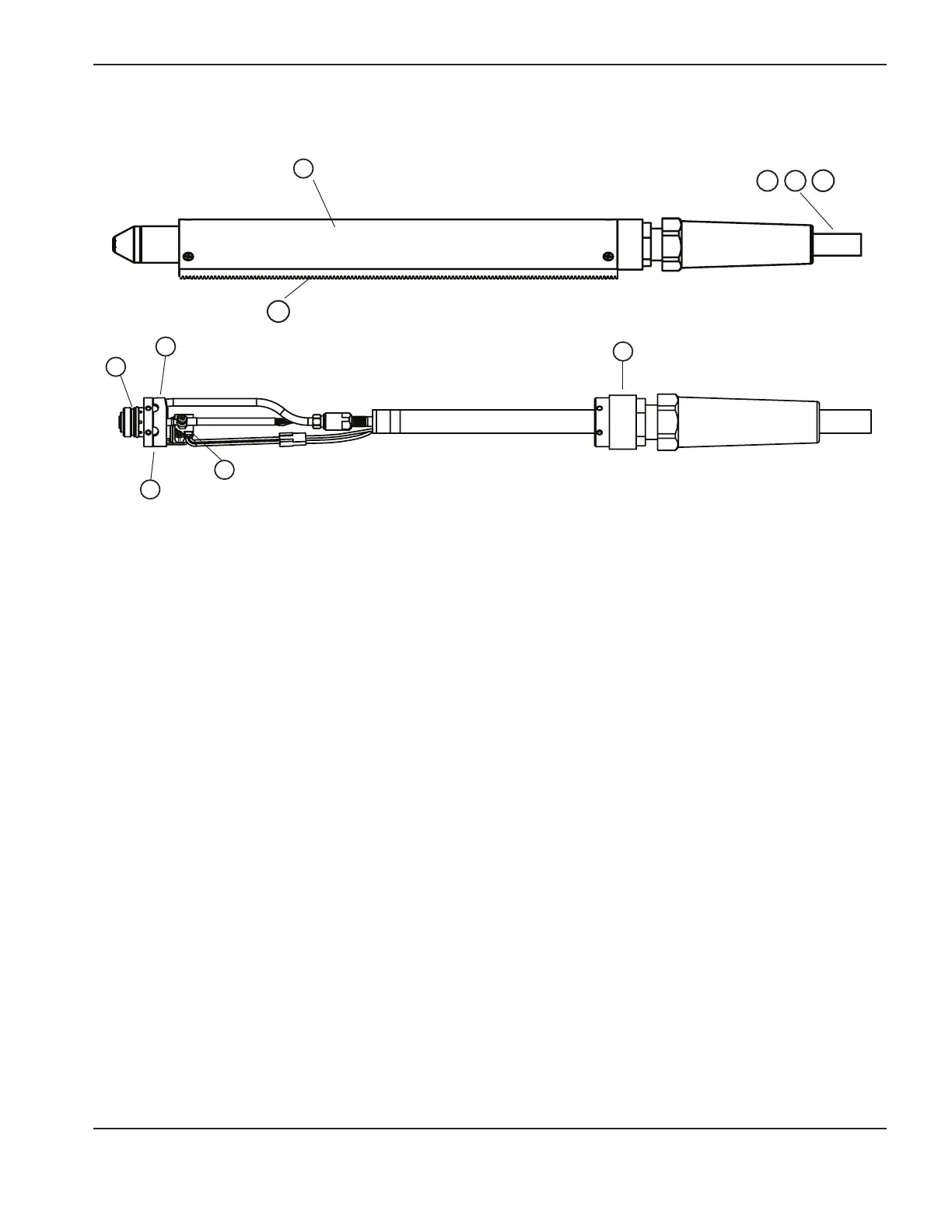

T45m machine torch parts
6
7
8
9
10
3
2
