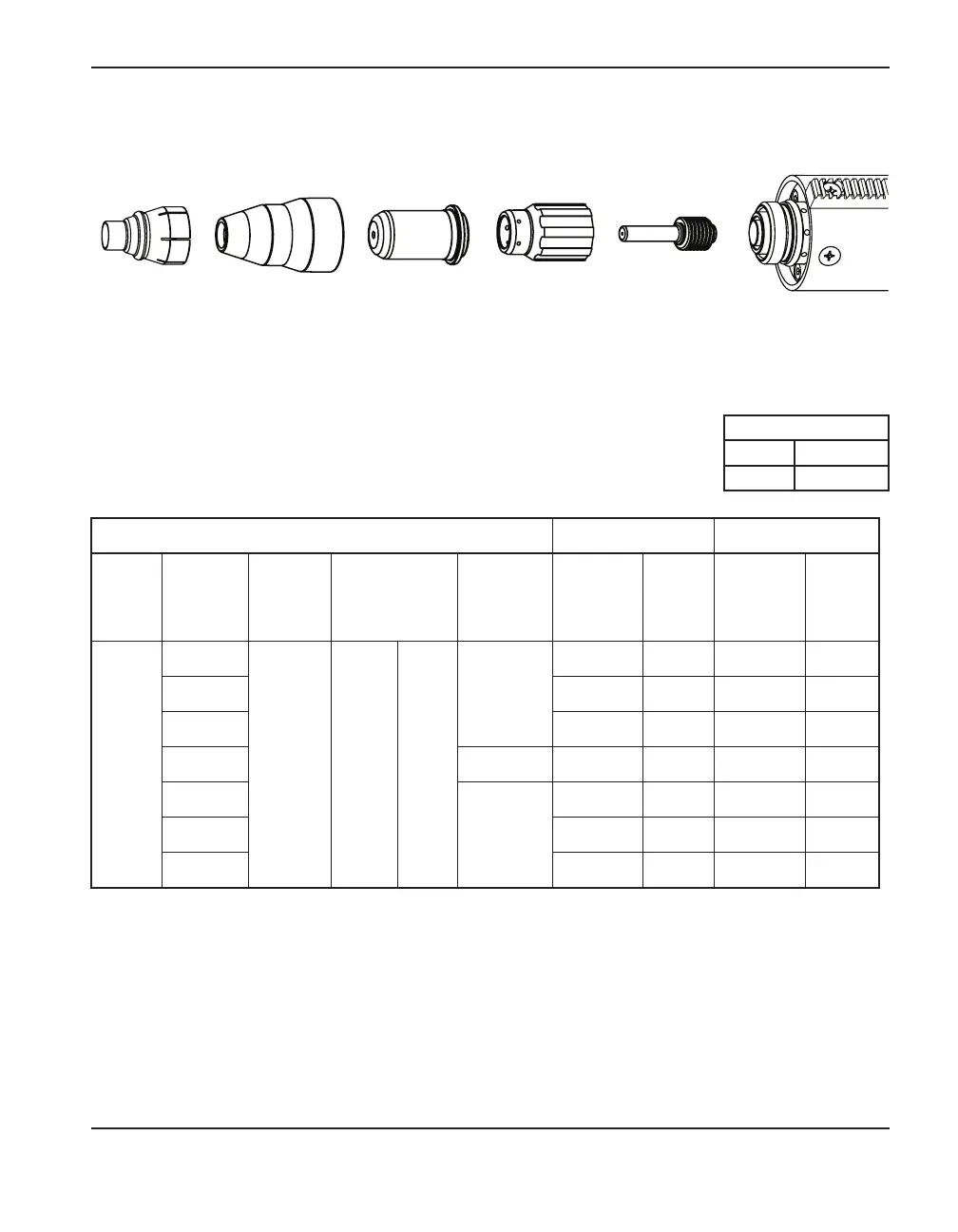

TORCH SETUP
powermax 45 Operator Manual 3-21
220483
Retaining cap
220480
Nozzle
220478
Electrode
220479
Swirl ring
220569
Optional
deflector
T30v (Powermax30) 30 A consumables
Recommended Maximum
Arc
current
(amps)
Material
thickness
(mm)
Torch-
to-work
distance
(mm)
Initial pierce
height
Pierce
time delay
(sec)
Cut
Speed
(mm/min)
Voltage
(V)
Cut
Speed
(mm/min)
Voltage
(V)
30
0.5
0.5 2.5 mm 500%
0.0
8900 105 10160* 98
0.8 8100 102 10160* 103
0.9 7100 101 8900 100
1.5 0.2 4450 97 5600 100
1.9
0.4
3050 98 3800 97
2.7 2050 96 2550 96
3.4 1270 100 1650 101
Mild steel
Metric
Air flowrate (lpm)
Hot 131.2
Cold 146.3
*Maximum cut speed is limited by the test table’s maximum speed (10160 mm/min).
