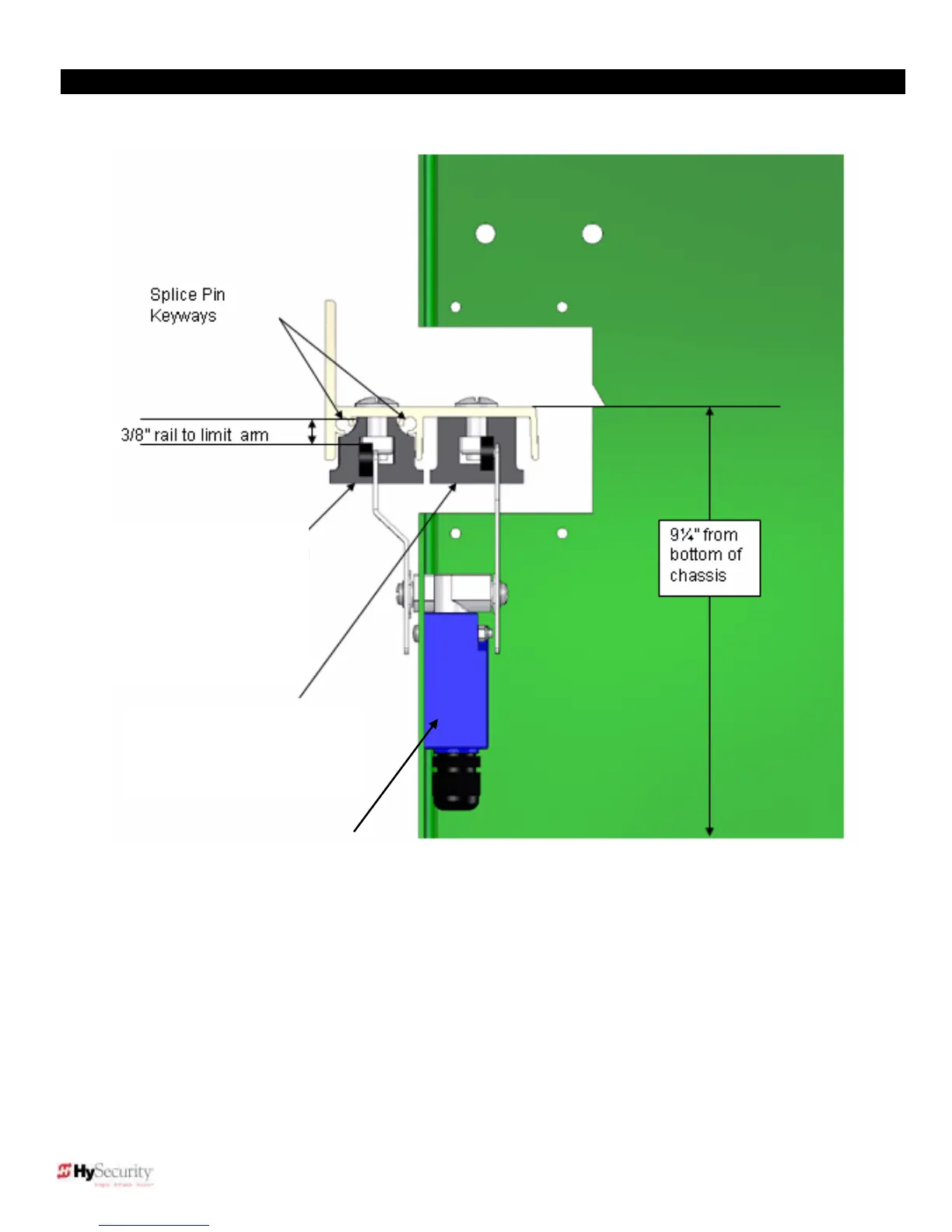

Section 2 — VFD SlideDriver Limit Switch Placement
Limit Switch
30″ limit ramp placed in the
outside channel with the tapered
end toward the wheels and the
flat end out.
An additional 10.5″ double-
tapered limit ramp is placed in
the outside channel on the
50VF3 and 50VF2-EFO models.
All operators: 11.5″ limit ramp
placed along the inside channel
with the tapered end toward the
wheels and the flat end out.
