Section 6 — Remote Release Option
Instructions for Releasing Drive Wheel Clamp Mechanism for Manual Operation

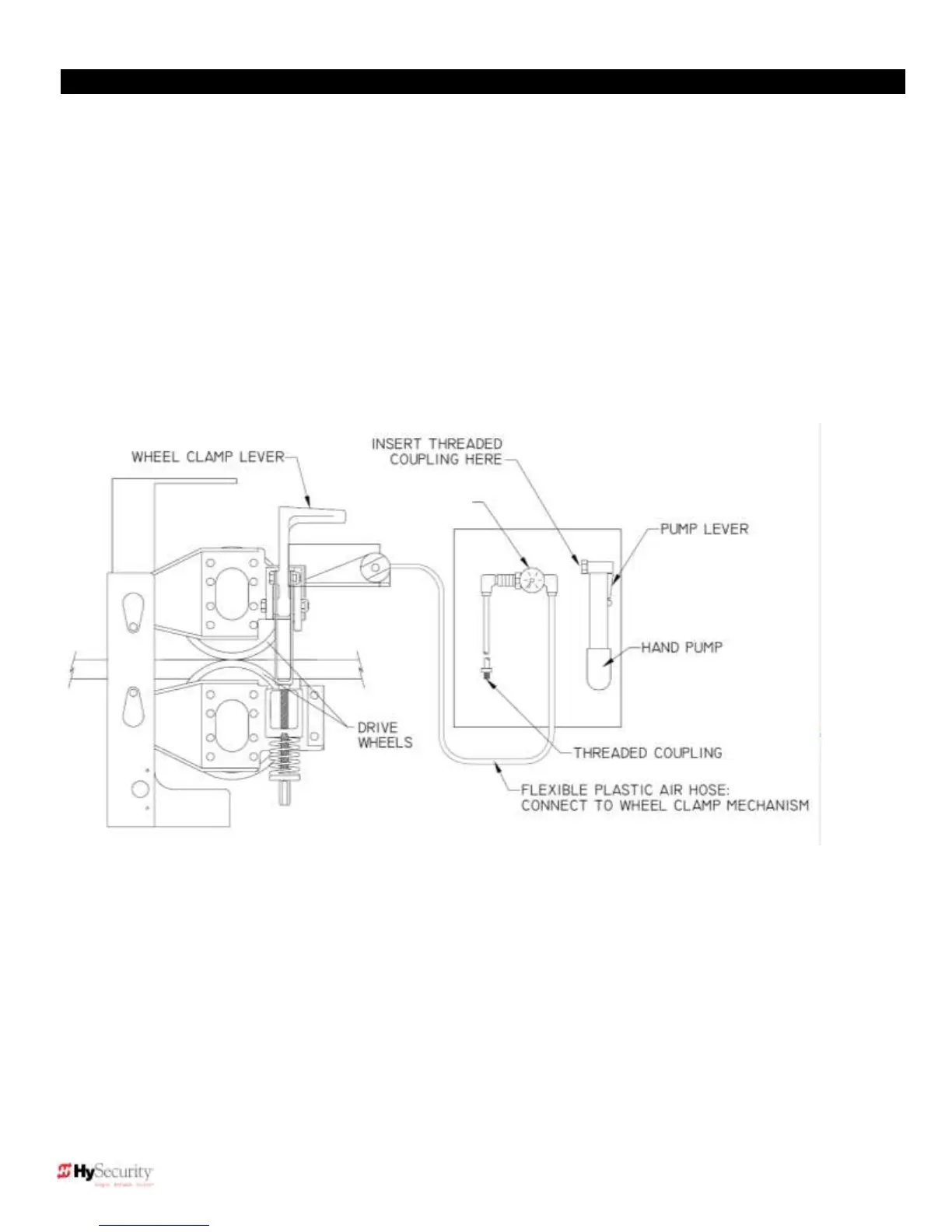

This remote release device consists of an air cylinder inside the operator, which pushes the wheel clamping device open,
a length of flexible air tubing, and a remote box containing a hand pump.
The hand pump is similar to the type used to inflate sports equipment or bicycle tires.
1. Remove hand pump from box. (Pull straight out to remove from mounting clips.)
2. Push threaded coupling, attached to end of tubing, into hand pump. Do not screw or twist.
3. Lock coupling in place by toggling the locking lever away from pump.
4. Pump until gauge pressure indicates 50 PSI. The clamp on the wheel should now be released and the gate can be
manually operated. Do not release pressure until all manual operations are complete.
5. When ready for automatic operation, release fitting from pump by lowering lever and pulling tubing straight out. This
will release the pressure on the wheel clamp mechanism.
6. Put pump and tubing back into enclosure.
Instructions for Placing the Operator Back in Service
1. Remove the cover from the operator.
2. Use the wheel clamp lever to re-engage the drive wheels.
