Section 2 — Limit Ramp Configuration
NOTE: For the EFO, refer to
the setup and programming
instructions on page 20.

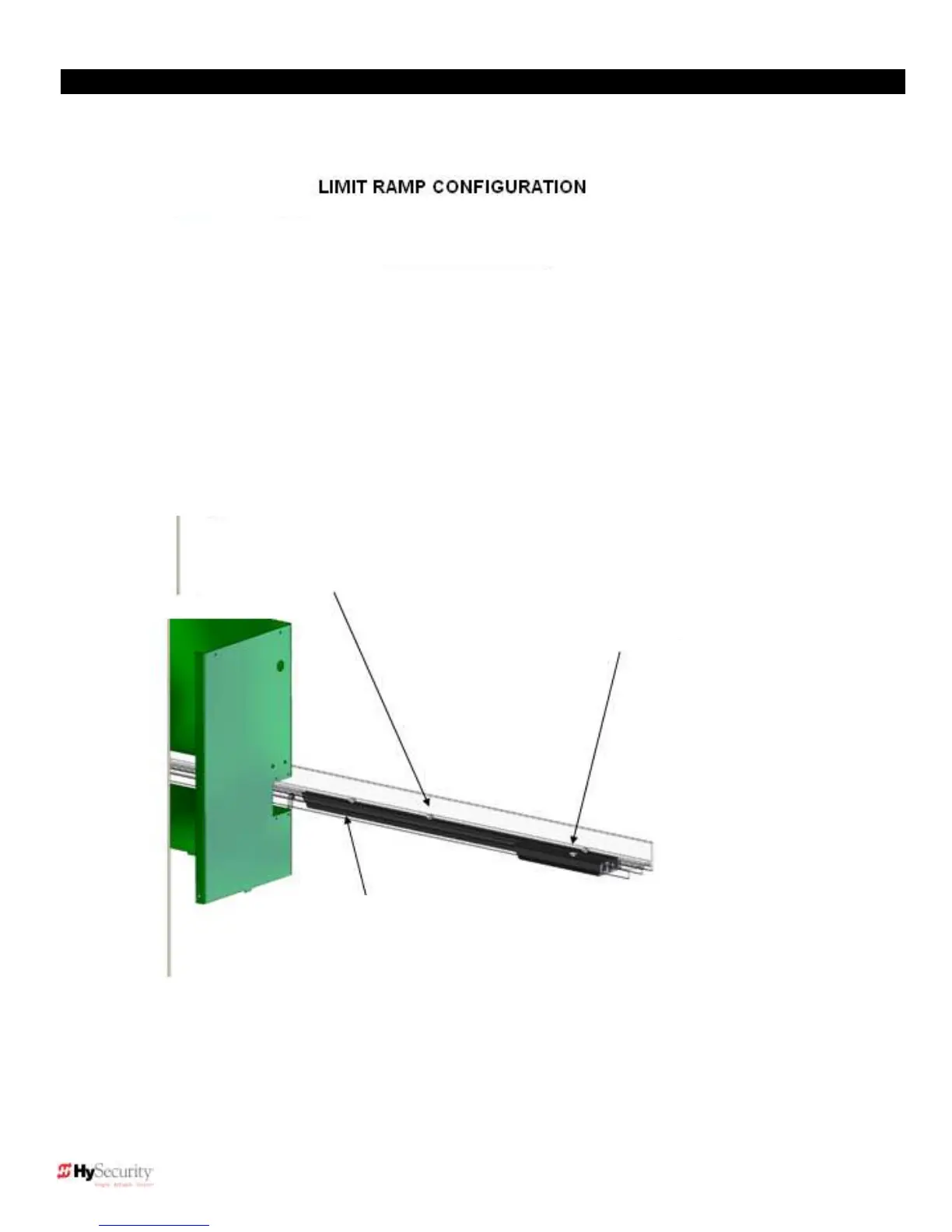

11.5″ limit ramp placed along the inside
channel with the tapered end toward the
wheels and the flat end out.
30″ limit ramp placed in the outside
channel with the tapered end toward the
wheels and the flat end out.
An additional 10.5″ double-tapered limit
ramp is placed in the outside channel
on the all models.
