63 © 2012 Installation and Reference Manual D0125 Rev. H

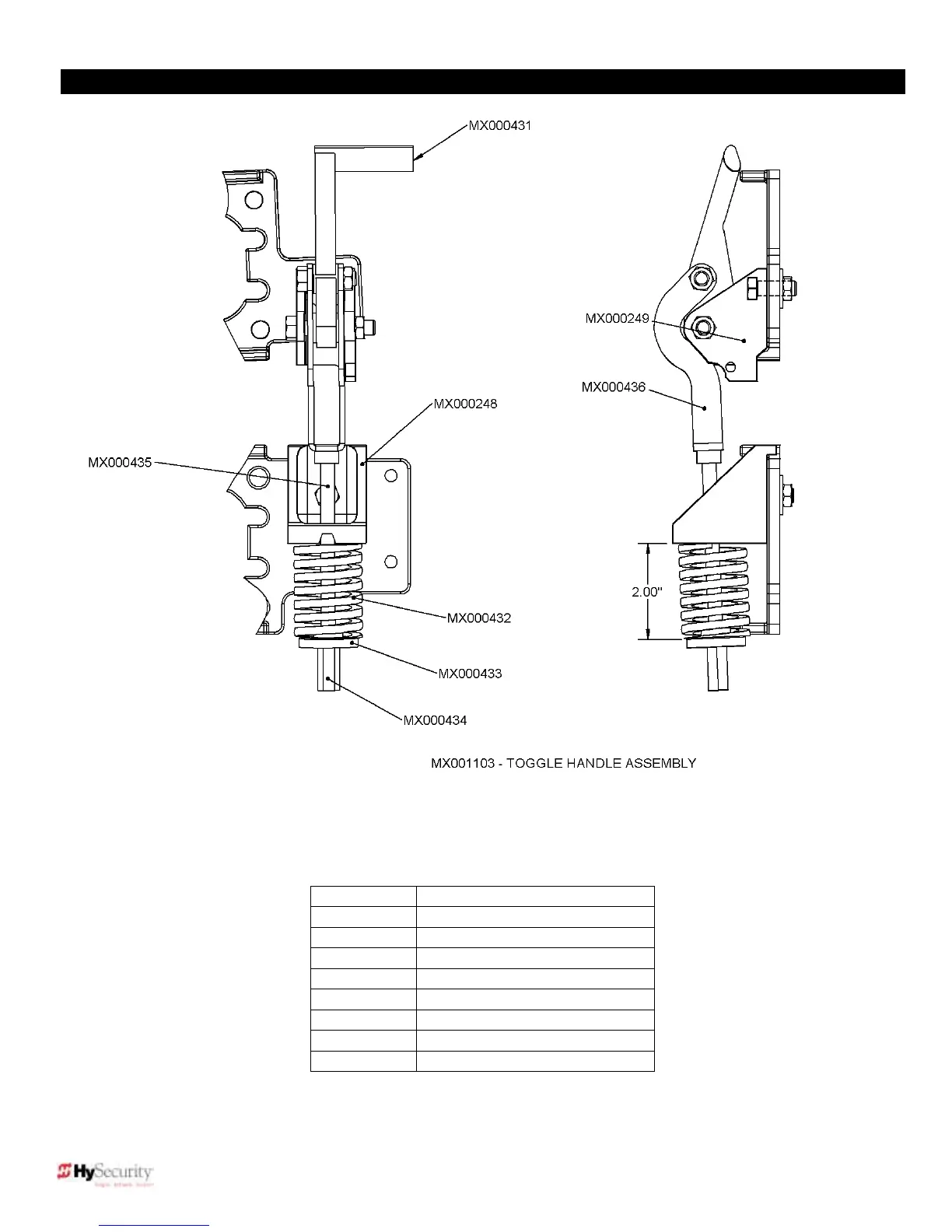

Appendix — Manual Release Toggle Assembly
Part Number
Part Description
MX001103
COMPLETE TOGGLE ASSEMBLY
MX000436
TOGGLE YOKE
MX000249
TOGGLE HANDLE MOUNT
MX000434
NUT COUPLER, 3/8-16
MX000433
DRIVE TOGGLE SPRING SEAT
MX000432
DRIVE TOGGLE SPRING
MX000248
TOGGLE SPRING MOUNT
MX000435
TENSION SCREW 3.8-16 X 5.5"
