61 © 2012 Installation and Reference Manual D0125 Rev. H

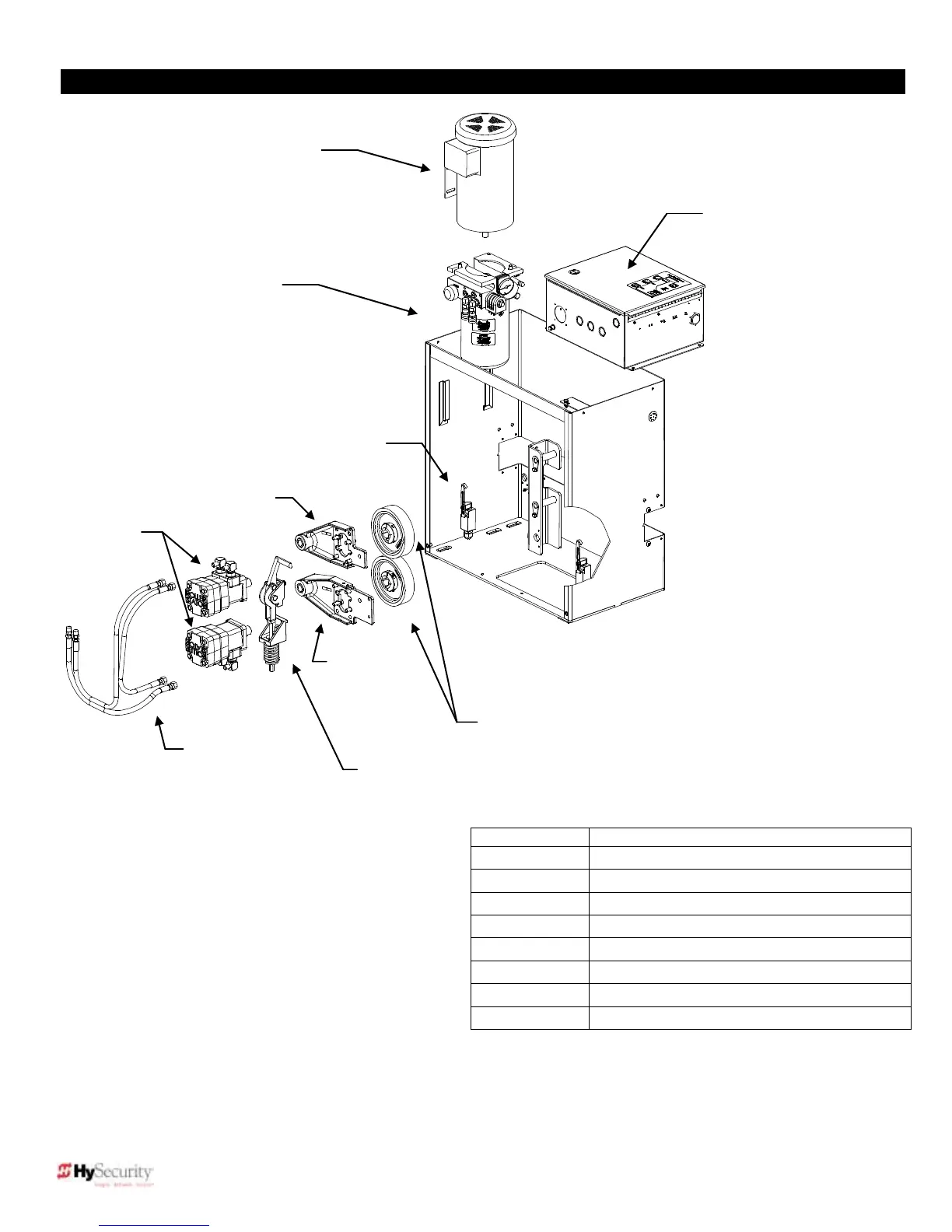

Appendix —Exploded Parts Diagram, Angle View
Part Number
Part Description
MX000387
TOP MOTOR MOUNT
MX000690
8" WHEEL AND HARDWARE
MX000386
BOTTOM MOTOR MOUNT
MX001103
MANUAL RELEASE TOGGLE ASSEMBLY
MX001149
MOTOR ASSEMBLY, 10"
MX000848
HOSE ASSEMBLIES 22", 25" & 30"
MX001105
MOTOR MOUNT PIN KIT
MX000672
OPEN/CLOSE LIMIT SWITCH
See Control Box on
page 65.
MX001103
MX001638
MX000387
MX000690
MX001149
MX000848
See Pump Pack on
page 63.
MX000386
MX000672
Exploded Parts
