IAI ASEP Operation Manual

40

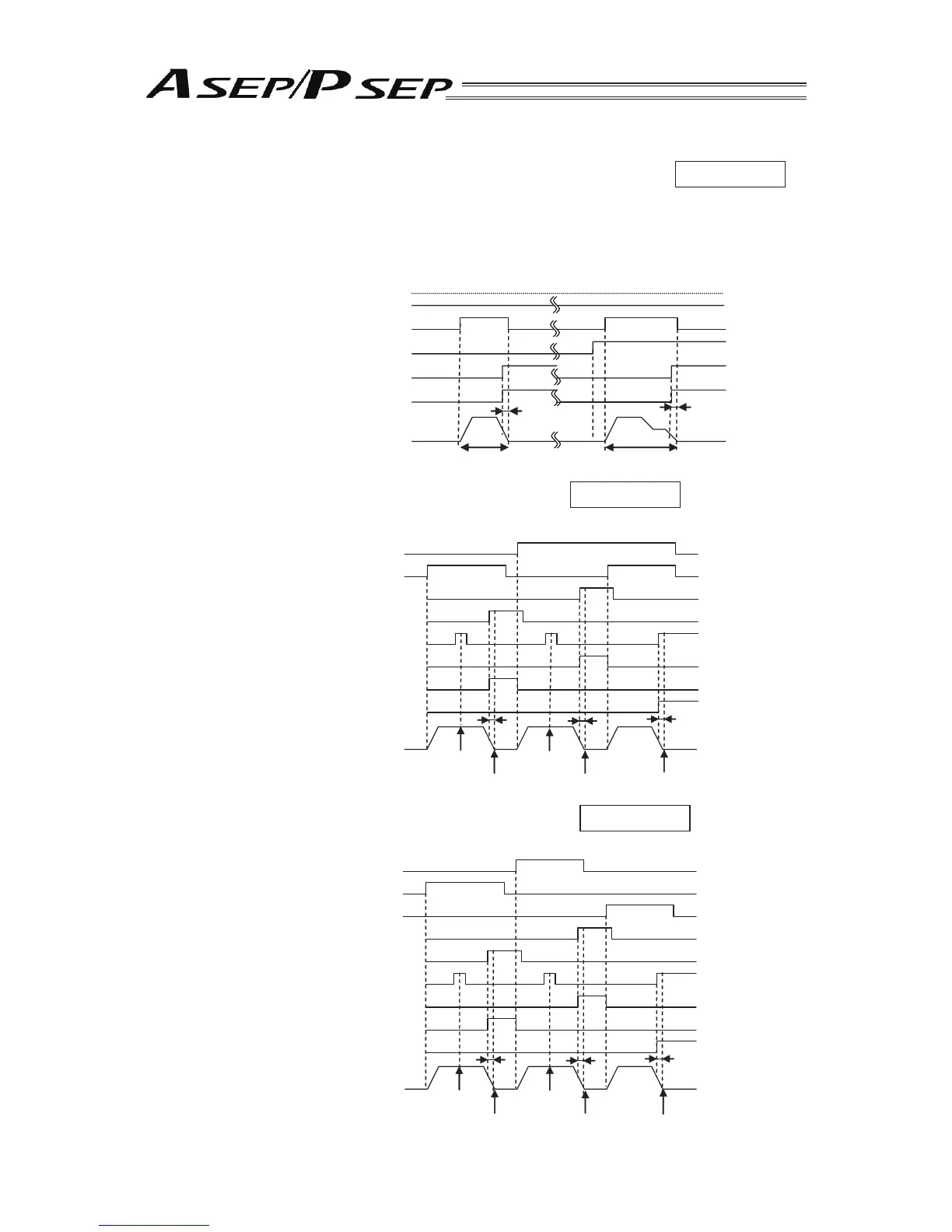

[9] Target Position Setting Change (For Double Solenoid System) ••• PIO Pattern 2
When the operation is to be performed with the two types of works set differently each other, the
setting change is easy by means only of sending a single signal from PLC. When the movement
command is issued after CN1 is turned ON, the actuator is moved using the Position Setting 3, in
the case of moving to the forward end. In the case of moving to the backward end, the Position
Setting 2 is used. The following fi gure shows an example of forward end movement.
Position Setting 1 Position Setting 3
Positioning Width
Positioning Width
(Parameter No.1)
(Parameter No.1)
Positioning Width
(Parameter No.1)
Positioning Width
(Parameter No.1)
A
ctuator Operation
Backward End Movement Signal
(ST0)
Forward End Movement Signal
(ST1)
Target Position Change Signal
(CN1)
Forward End Position Detection Output
(LS1)
Forward End Point Positioning Completion Output
(PE1)
[10] 3-Point Movement (For Single Solenoid System) ••• PIO Pattern 3
With the combination of ST0 and ST1, the actuator is moved to the target position.
∗ Positioning Width
(Parameter No.1)
∗
∗
∗
Backward EndForward End Intermediate Point
Passing the
Intermediate Point
Passing the
Intermediate Point
A
ctuator Operation
Movement Signal 1
(ST0)
Movement Signal 2
(ST1)
Backward End Position Detection Output
(LS0)
Forward End Position Detection Output
(LS1)
Intermediate Point Position Detection Output
(LS2)
Backward Point Positioning Completion Output
(PE0)
Forward End Point Positioning Completion Output
(PE1)
Intermediate Point Positioning Completion Output
(PE2)
[11] 3-Point Movement (For Double Solenoid System) ••• PIO Pattern 4
With the combinations of ST0, ST1 and ST2, the actuator is moved to the target position.
∗ Positioning Width
(Parameter No.1)
∗
∗
∗
Backward EndForward End
Intermediate Point
Passing the
Intermediate Point
Passing the
Intermediate Point
A
ctuator Operation
Backward End Movement Signal
(ST0)
Forward End Movement Signal
(ST1)
Intermediate Point Movement Signal
(ST2)
Backward End Position Detection Output
(LS0)
Forward End Position Detection Output
(LS1)
Intermediate Point Position Detection Output
(LS2)
Backward Point Positioning Completion Output
(PE0)
Forward End Point Positioning Completion Output
(PE1)
Intermediate Point Positioning Completion Output
(PE2)
