IBM 5150 Hardware Reference Manual

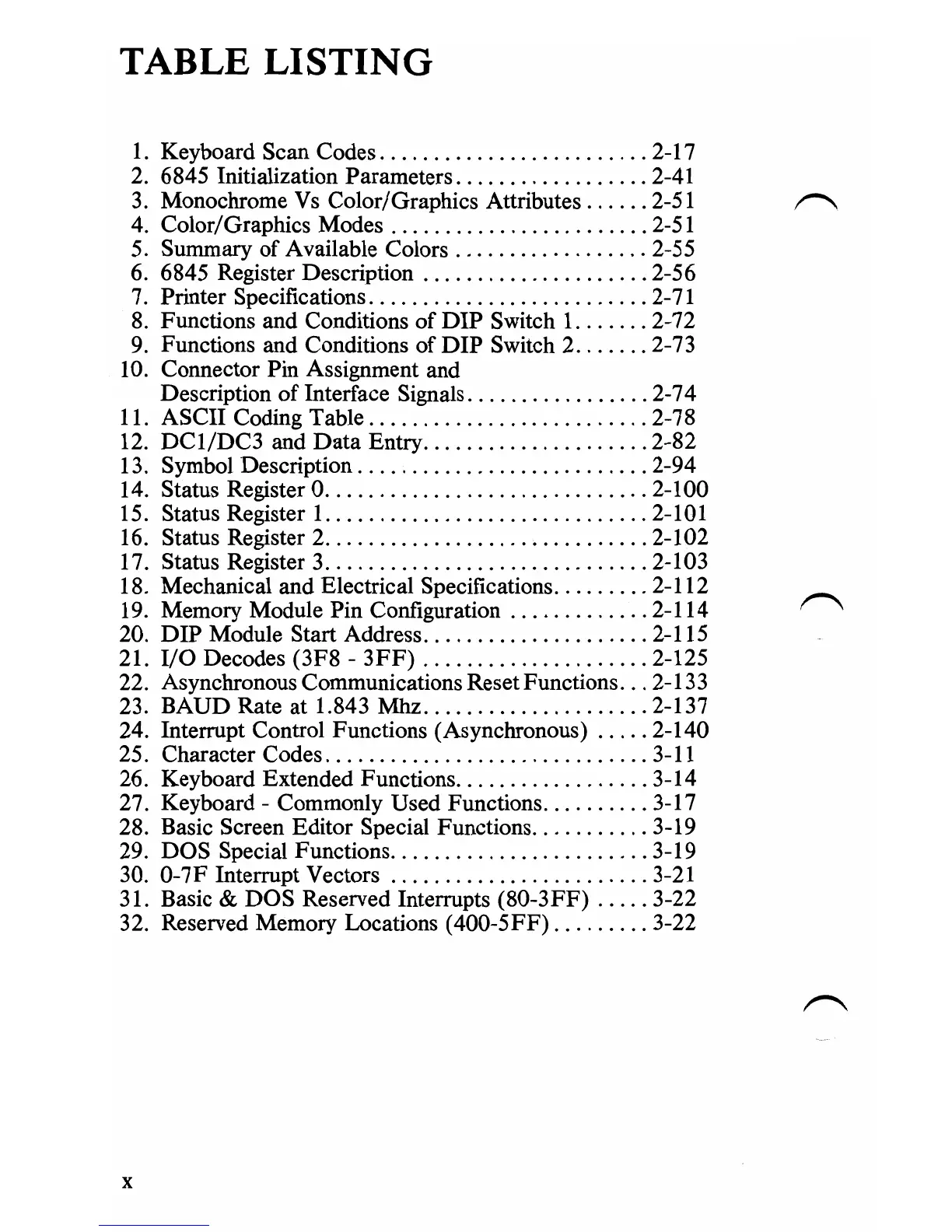

TABLE LISTING
1. lCeyboard Scan Codes ......................... 2-17
2. 6845 Initialization Parameters .................. 2-41
3. Monochrome Vs Color/Graphics Attributes ...... 2-51
4. Color/Graphics Modes
........................ 2-51
5. Summary of Available Colors .................. 2-55
6. 6845 Register Description ..................... 2-56
7. Printer Specifications .......................... 2-71
8. Functions and Conditions of DIP Switch 1 ....... 2-72
9. Functions and Conditions of DIP Switch 2 ....... 2-73
10. Connector Pin Assignment and
Description of Interface Signals
................. 2-74
11. ASCII Coding Table
.......................... 2-78
12.
DCl/DC3 and Data Entry ..................... 2-82
13. Symbol Description
........................... 2-94
14. Status Register
O .............................. 2-100
15. Status Register
1. ............................. 2-101
16. Status Register 2
.............................. 2-102
17. Status Register 3
.............................. 2-103
18. Mechanical and Electrical Specifications
......... 2-112
19. Memory Module Pin Configuration ............. 2-114
20.
DIP Module Start Address ..................... 2-115
21.
I/O Decodes (3F8 - 3FF) ..................... 2-125
22. Asynchronous Communications Reset Functions
... 2-133
23. BAUD Rate at 1.843
Mhz ..................... 2-137
24. Interrupt Control Functions (Asynchronous)
..... 2-140
25. Character Codes
.............................. 3-11
26. lCeyboard Extended Functions
.................. 3-14
27. lCeyboard - Commonly Used Functions
.......... 3-17
28. Basic Screen Editor Special Functions
........... 3-19
29. DOS Special Functions
........................ 3-19
30. 0-7F Interrupt Vectors
........................ 3-21
31. Basic
& DOS Reserved Interrupts (80-3FF) ..... 3-22
32. Reserved Memory Locations (400-5FF)
......... 3-22
x
