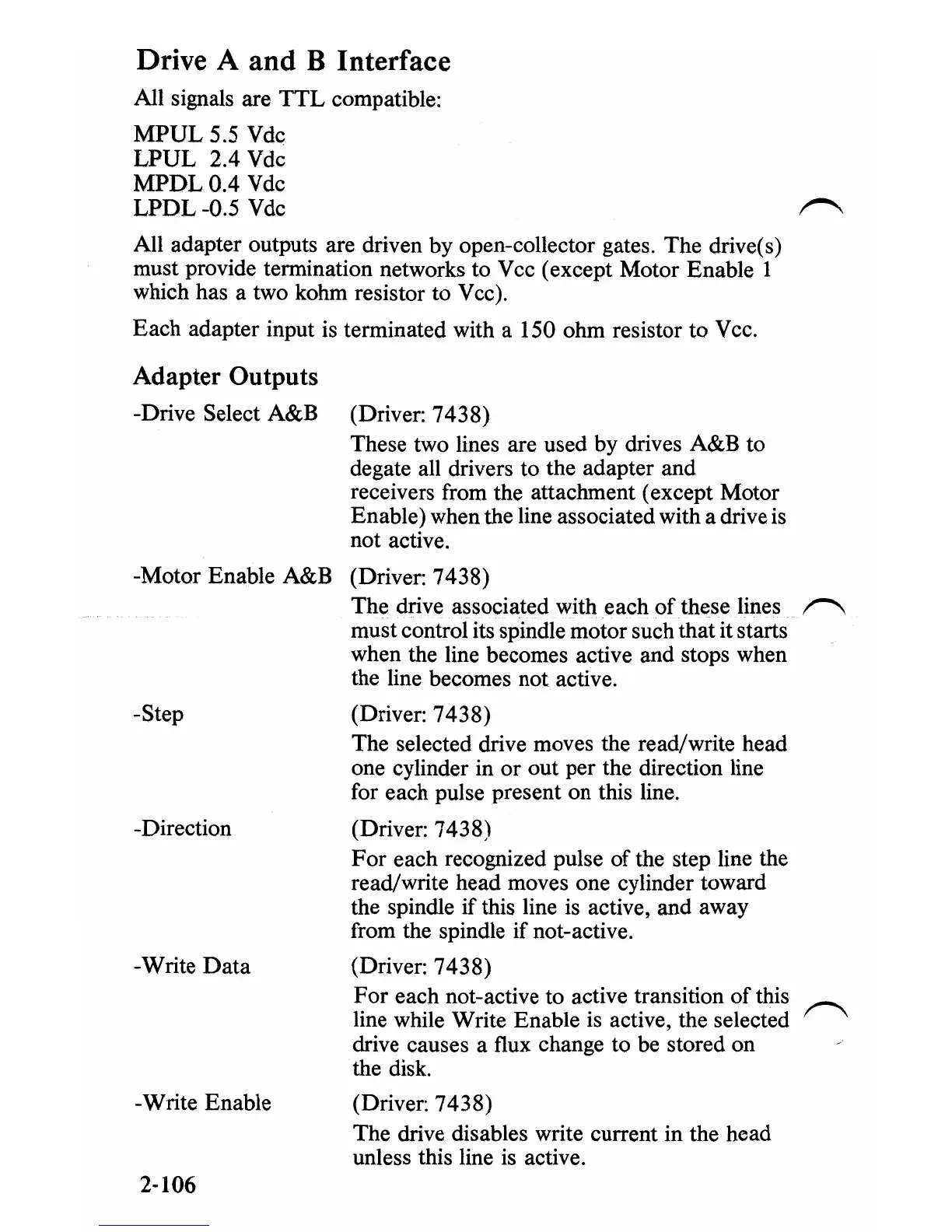

Drive A and B Interface
All signals are
TTL
compatible:
MPUL
5.5 Vdc
LPUL
2.4 Vdc
MPDLO.4
Vdc
LPDL
-0.5 Vdc
All adapter outputs are driven by open-collector gates. The drive(s)
must provide termination networks to Vcc (except Motor Enable 1
which has a two kohm resistor to Vcc).
Each
adapter input is terminated with a 150 ohm resistor to V cc.
Adapter Outputs
-Drive Select A&B (Driver: 7438)
These two lines are used by drives A&B to
de gate all drivers to the adapter and
receivers from the attachment (except Motor
Enable) when the line associated with a drive is
not active.
-Motor Enable A&B (Driver: 7438)
The drive associated with each
of
these lines
r"\
must control its spindle motor such that it starts
when the line becomes active and stops when
the line becomes not active.
-Step
(Driver: 7438)
The selected drive moves the read/write head
one cylinder in
or
out per the direction line
for each pulse present on this line.
-Direction
(Driver: 7438)
For
each recognized pulse
of
the step line the
read/write head moves one cylinder toward
the spindle
if
this line is active, and away
from the spindle if not-active.
-Write
Data
(Driver: 7438)
For
each not-active to active transition
of
this
line while Write Enable
is
active, the selected
drive causes a flux change to be stored on
the disk.
-Write Enable (Driver: 7438)
The drive disables write current in the head
unless this line
is
active.
2-106
