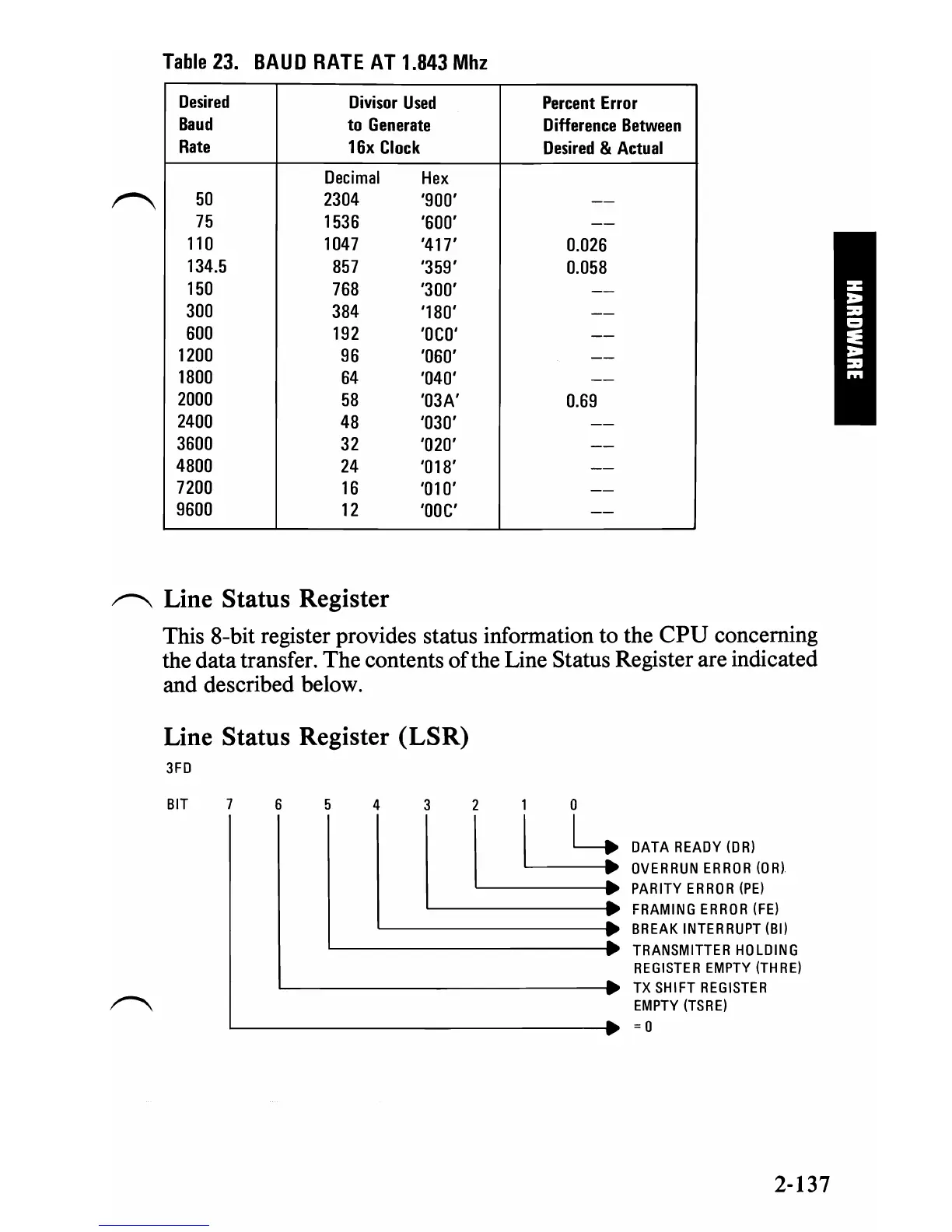

Table 23. BAUD RATE AT 1.843 Mhz
Desired
Divisor Used
Percent Error
Baud
to Generate
Difference Between
Rate
16x Clock
Desired & Actual
Decimal
Hex
50
2304 '900' --
75
1536 '600' --
110 1047
'417'
0.026
134.5
857
'359'
0.058
150
768
'300'
--
300 384
'180' --
600 192 'OCO'
--
1200
96
'060' --
1800
64 '040'
--
2000
58
'03A'
0.69
2400
48 '030'
--
3600
32 '020' --
4800
24 '018'
--
7200
16 '010'
--
9600
12 'OOC'
--
~ Line Status Register
This 8-bit register provides status information to the CPU concerning
the data transfer.
The contents of the Line Status Register are indicated
and described below.
Line Status Register (LSR)
3FD
BIT
6
4
3 2
1 0
DATA READY (DR)
OVERRUN ERROR (OR)
I Li=:
PARITY ERROR (PE)
...
FRAMING ERROR (FE)
!:
BREAK INTERRUPT (BI)
:.
.
TRANSMITTER HOLDING
REGISTER EMPTY (TH RE)
...
po
TX SHIFT REGISTER
EMPTY (TSRE)
=0
-
2-137
