IBM 5150

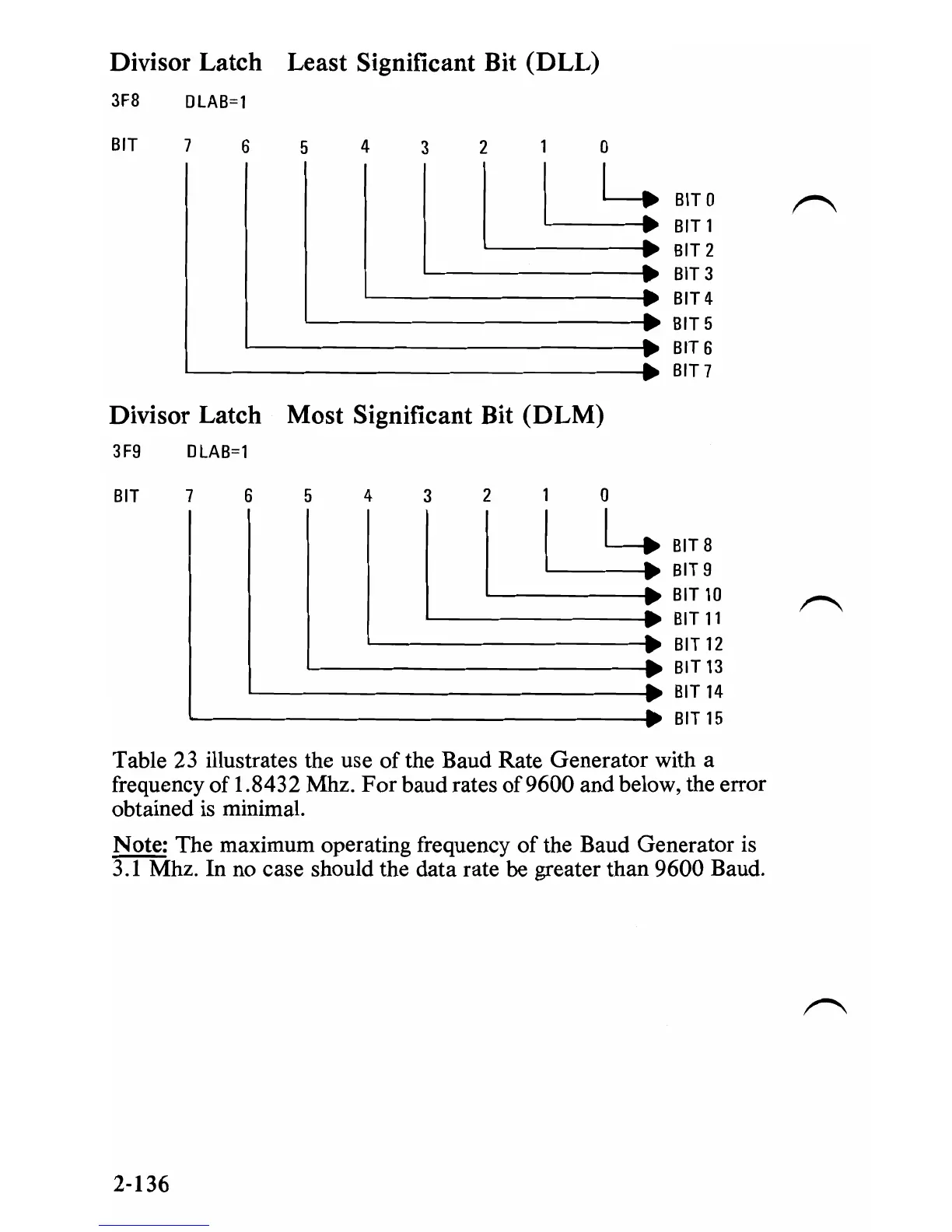

Divisor Latch Least Significant Bit (DLL)
3F8 DLAB=l
BIT
7
6
5
4
3
2
o
LS
BIT 0
BIT 1
BIT 2
BIT 3
BIT4
'--------------- BIT 5
BIT 6
BIT 7
Divisor Latch Most Significant Bit (DLM)
3F9 DLAB=l
BIT
7
6 5 4 3
2
1 0
I L... BIT8
~BIT9
'----------t~ BIT 10
'---------. BIT 11
L..- ___________ BIT 12
'------------- __ BIT 13
'--------------- __ BIT 14
"----------------- __ BIT 15
Table 23 illustrates the use of the Baud Rate Generator with a
frequency of 1.8432 Mhz.
For baud rates of 9600 and below, the error
obtained is minimal.
Note: The maximum operating frequency
of the Baud Generator is
3.1 Mhz. In no case should the data rate be greater than 9600 Baud.
2-136
