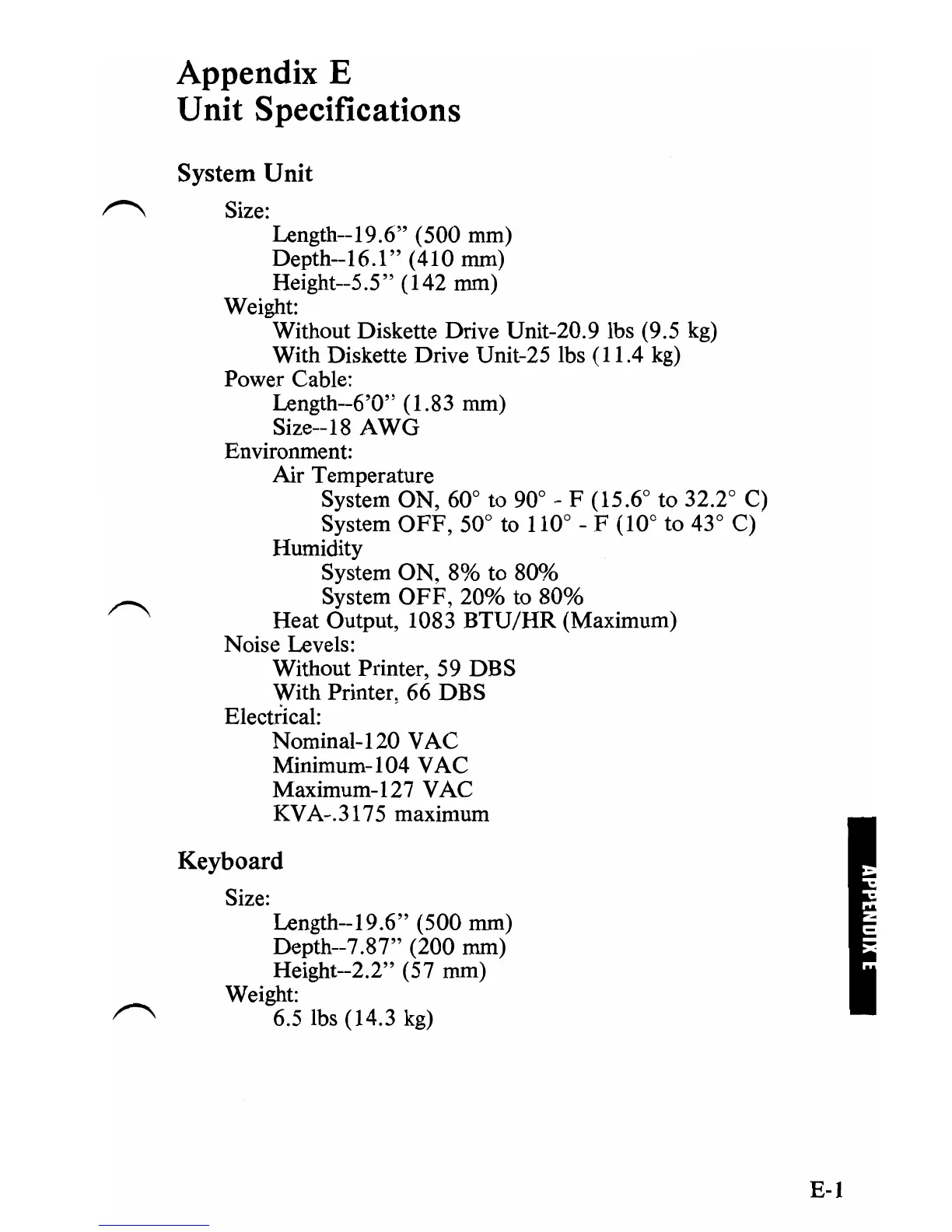

Appendix E
Unit Specifications
System Unit
~ Size:
Length--19.6" (500 mm)
Depth--16.1" (410 mm)
Height--5.5" (142 mm)
Weight:
Without Diskette Drive Unit-20.9
Ibs (9.5 kg)
With Diskette Drive Unit-25 lbs (11.4 kg)
Power Cable:
Length--6'O" (1.83 mm)
Size--18
AWG
Environment:
Air Temperature
System ON, 60° to
90° - F (15.6° to 32.2° C)
System
OFF, 50° to 110° - F (10° to 43° C)
Humidity
System ON, 8% to 80%
System
OFF, 20% to 80%
Heat Output, 1083
BTU/HR (Maximum)
Noise Levels:
Without Printer, 59 DBS
With Printer, 66 DBS
Electrical:
Nominal-120 VAC
Minimum-l04 VAC
Maximum-127 VAC
KVA-.3175 maximum
Keyboard
Size:
Length--19.6" (500 mm)
Depth--7.87" (200
mm)
Height-2.2" (57 mm)
Weight:
6.5 lbs (14.3
kg)
E-!
