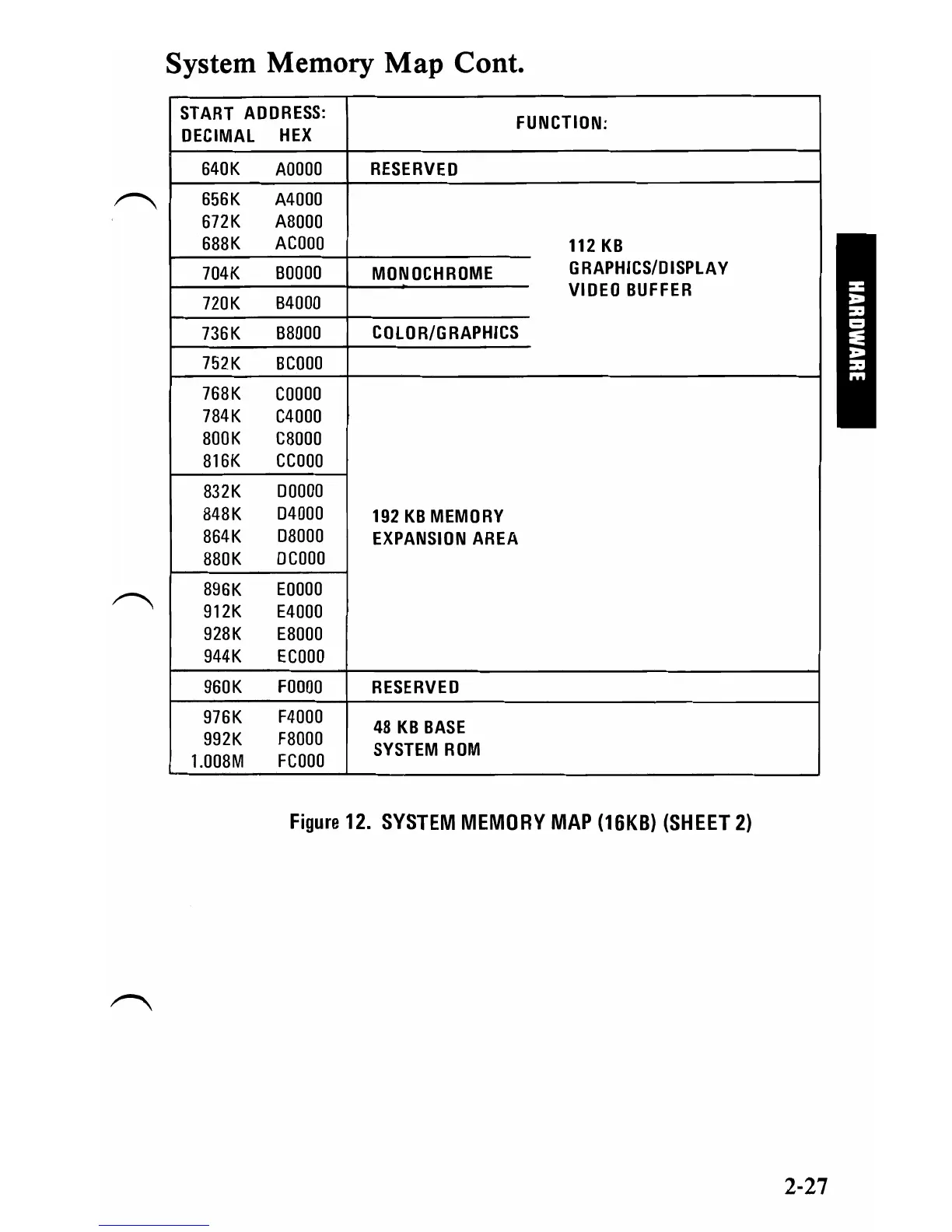

System Memory
Map
Cont.
START
ADDRESS:
DECIMAL
HEX
FUNCTION:
640K
AOOOO
RESERVED
656K
MOOO
672K
A8000
688K
ACOOO
112
KB
704K
BOOOO
MONOCHROME
GRAPHICS/DISPLAY
720K
B4000
VIDEO
BUFFER
736K
B8000
COLOR/GRAPHICS
752K
BCOOO
768K
COOOO
784K
C4000
800K
C8000
816K
CCOOO
832K
00000
848K
04000
192
KB
MEMORY
864K
08000
EXPANSION
AREA
880K
OCOOO
896K
EOOOO
912K
E4000
928K
E8000
944K
ECOOO
960K
FOOOO
RESERVED
976K
992K
1.008M
F4000
F8000
FCOOO
48
KB
BASE
SYSTEM
ROM
Figure
12.
SYSTEM
MEMORY
MAP
(16KB)
(SHEET
2)
2-27
