IBM 6.1.8.2 - Caster and Leveler Locations; Dimensions for Rear Door Heat Exchanger

Table 10. Dimensions for rear door heat exchanger
Width Depth Height Weight (empty) Weight (lled)
600 mm (23.6 in.) 129 mm (5.0 in.) 1950 mm (76.8 in.) 39 kg (85 lb) 48 kg (105 lb)
For more information, see “Model 1164-95X rear door heat exchanger specications” on page 33.
Electrical
For electrical requirements, see “Power supply units (PSUs)” on page 20.
Caster and leveler locations
The following diagram provides the caster and leveler locations for the 7965-S42 rack.

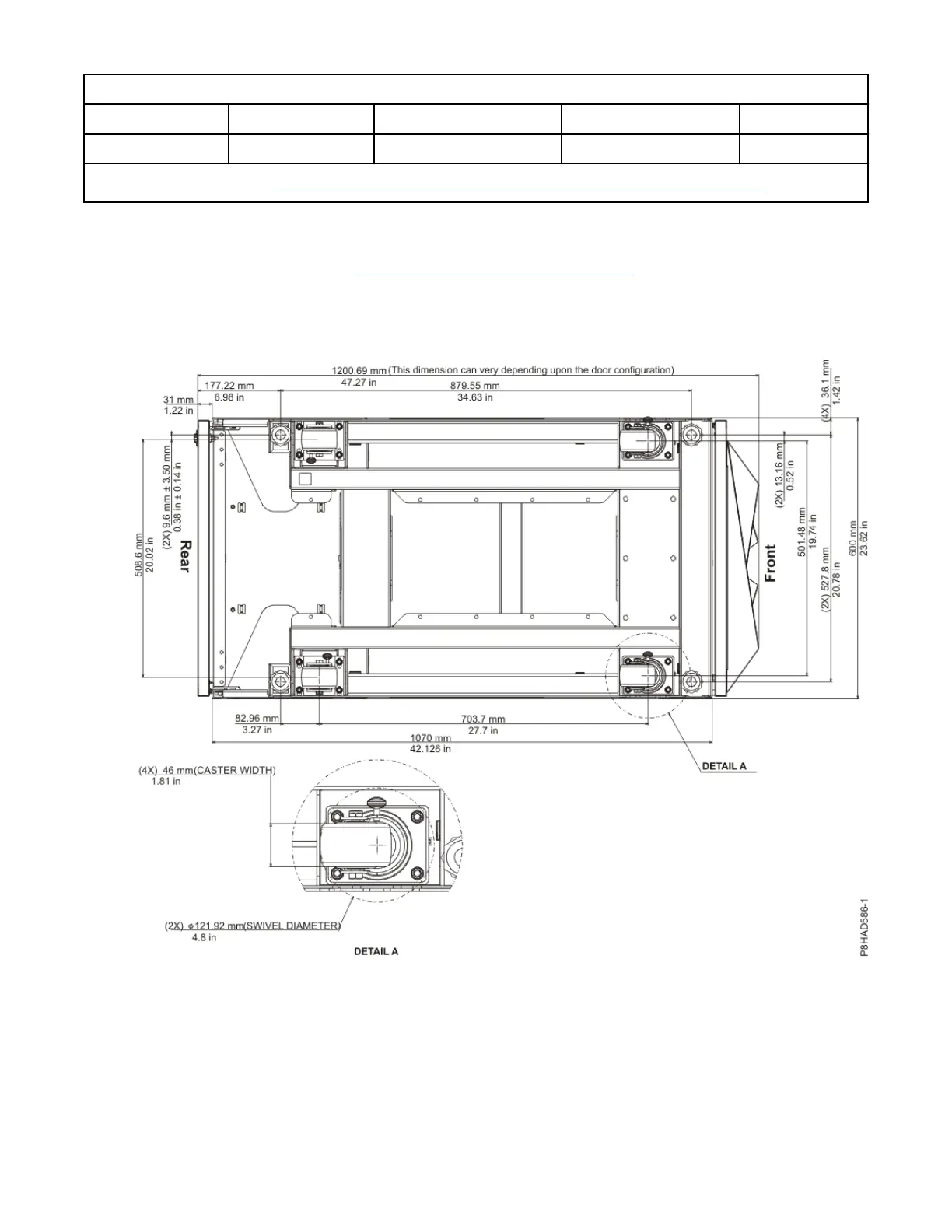

Figure 6. Caster and leveler locations
Cabling the 7965-S42 rack
Learn about the different cable routing options available for the 7965-S42 rack.
Cabling within the rack
Side cable channels are available in the rack to route cables. Three cable channels are on each side of the
rack.
