IBM 6.1.8.2 - Appendix A. Slot Placement Summary for the Utility Node (MTM 5149 - 23 E)

Appendix A. Slot placement summary for the utility
node (MTM 5149 - 23E)
Each slot number and its usage, as well as VM usage when setup, are explained in the slot placement
summary.

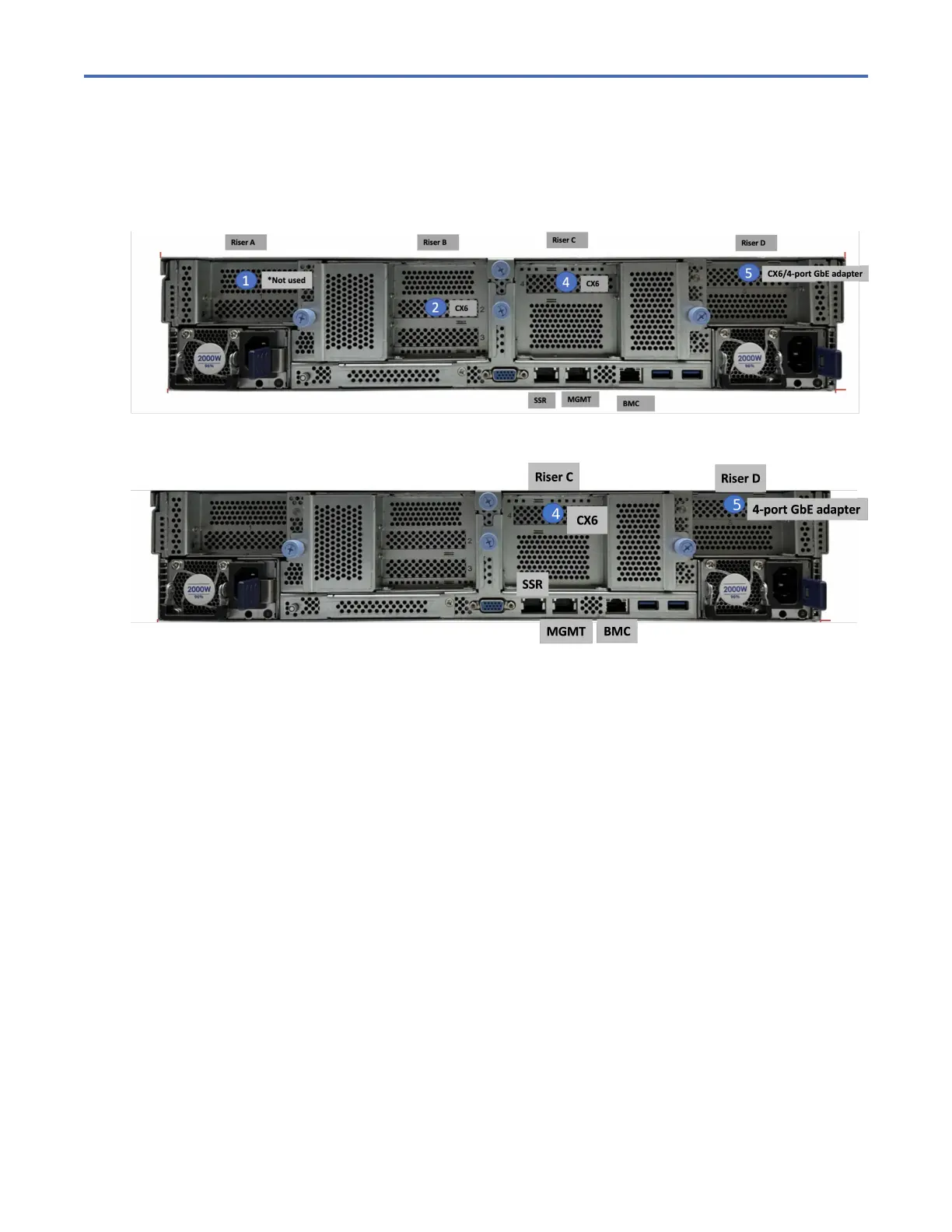

Figure 52. Slot placement rules (AK1P – Dual-socket protocol node)
Figure 53. Slot placement rules (AK1N – Single-socket EMS node)
©
Copyright IBM Corp. 2022, 2023 75
