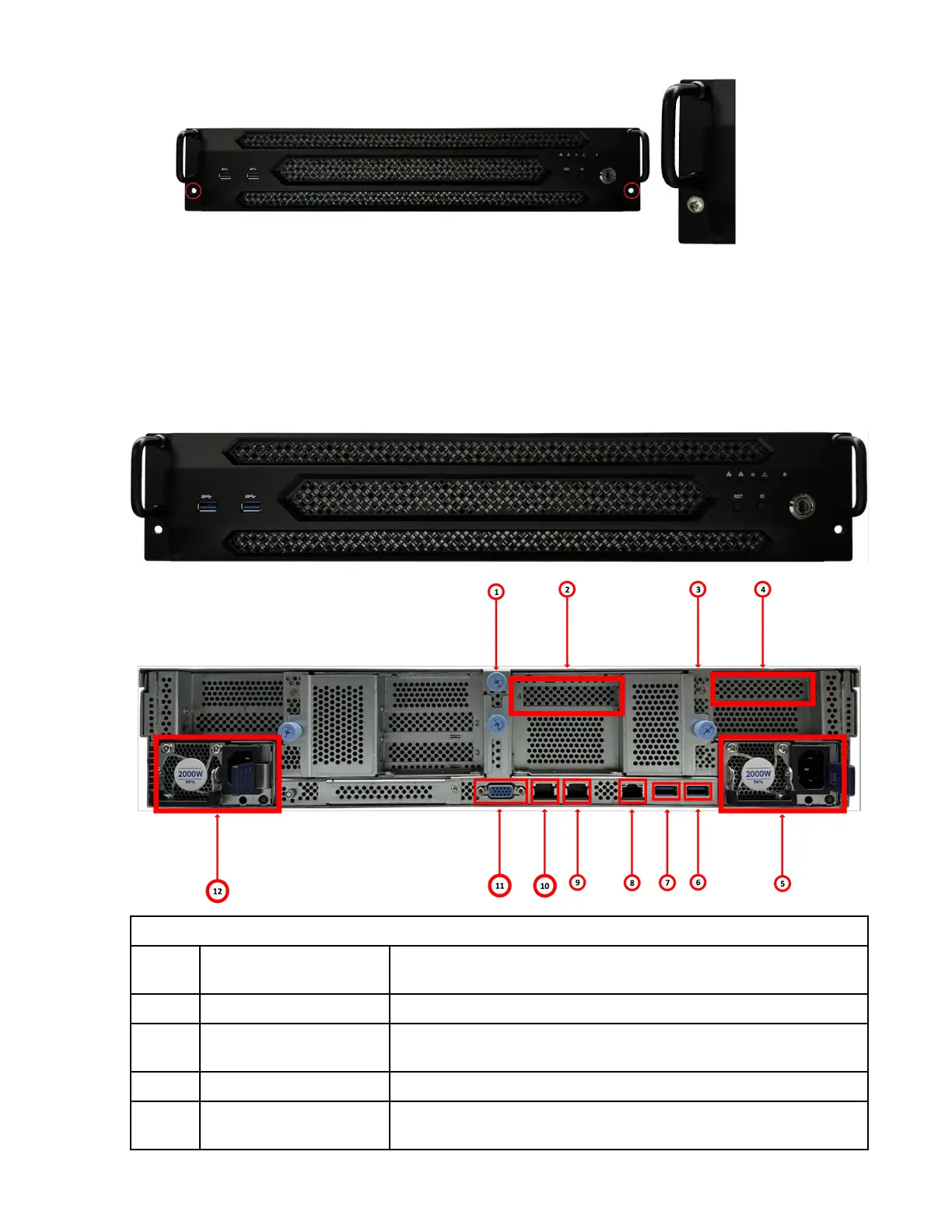

Figure 35. Securing the server on the rack
Installing and connecting the management server for an IBM Elastic Storage
System
Learn how to install and connect the management server for an IBM Elastic Storage System .
Use the information provided in the table to install and connect an IBM Storage ScaleSystem Utility Node
(MTM 5149 - 23E).
Table 20. Ports on the utility node
Item
number
Feature Description
1 Riser C Provides for riser card C to plug in CX-6 network adapter.
2 CX-6 VPI adapter (FC
AJZL)
Provides two port high-speed cluster management for Ethernet or
InniBand connection.
3 Riser D Provides for riser card D to plug in 4-port 10 GbE adapter.
4 4-port 10 GbE adapter
(FC EN2X)
