CAUTION:
The weight of this part or unit is 18 - 32 kg (39.7 - 70.5 lb). It takes two persons to safely lift this
part or unit. (C009)
CAUTION: Use safe practices when lifting. (R007)
The following table shows the rack space requirements for the utility node in tabular form.
Table 15. Rack space requirements for the utility node
Minimum rail length
Maximum rail depth (including cable management
arm)
660 mm (26 in.) 940 mm (37 in.)

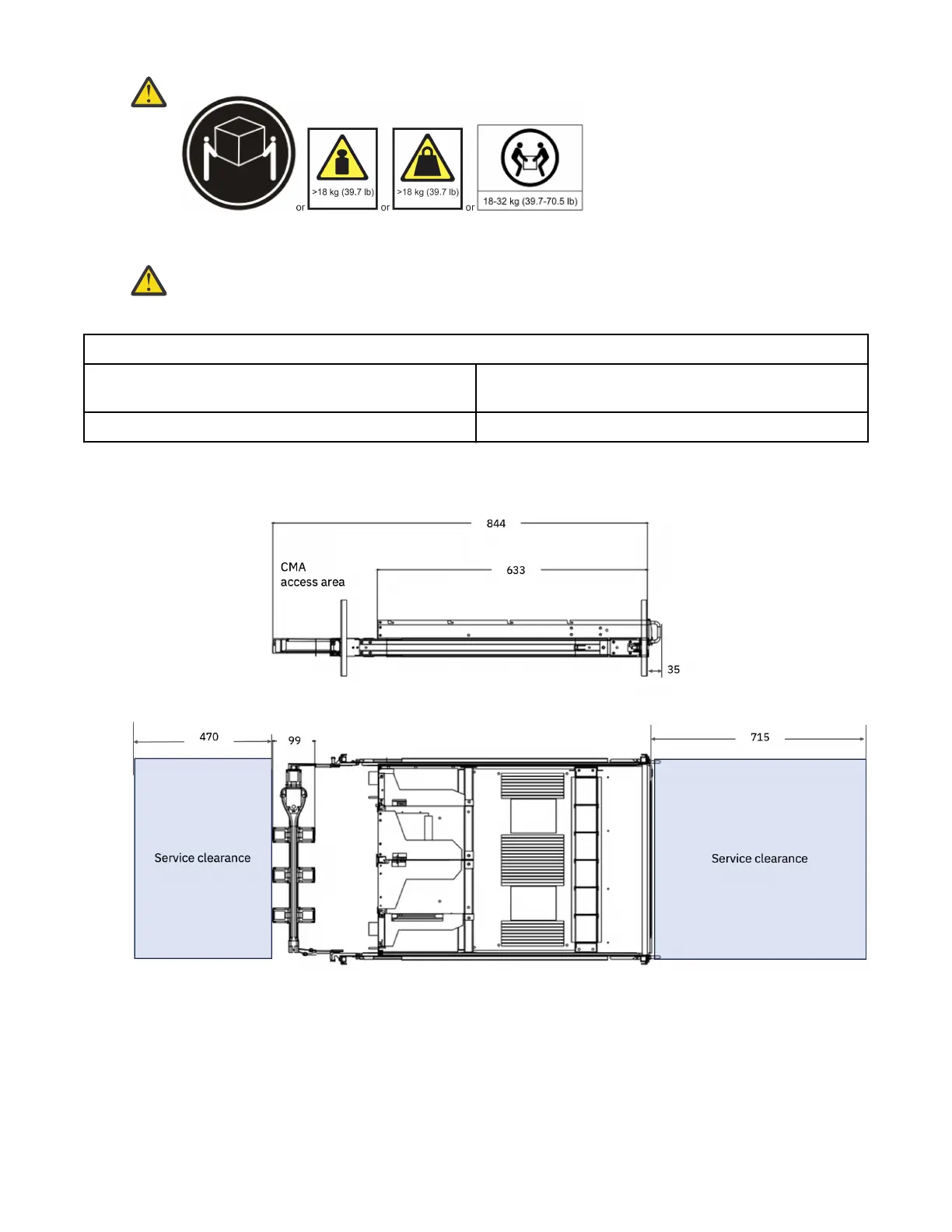

Service Envelope Illustration
The following gure provides a close-up view of the utility node mounting envelope.
Figure 16. Service envelope illustration (Dimensions in millimeters)
Service clearance for the utility node
The service clearance area is the area around the rack, which is needed for the authorized service
representatives to service the enclosure as shown in the sample illustration in the following gure.
Chapter 3. Planning for hardware
45
