– On the front of the rack from the right side of the rack, by using a tape, a marker, or a pencil, mark
rack holes that are meant to engage the location pins from the rails.
– By using marker or a tape, identify specic EIA locations in the front left-posts and rear right-posts of
the rack posts front and rear, where the rails are engaged.
– Ensure that the markings are visible from the front and the rear of the rack:
1. Mark the EIA locations in the front of the rack, left and right.

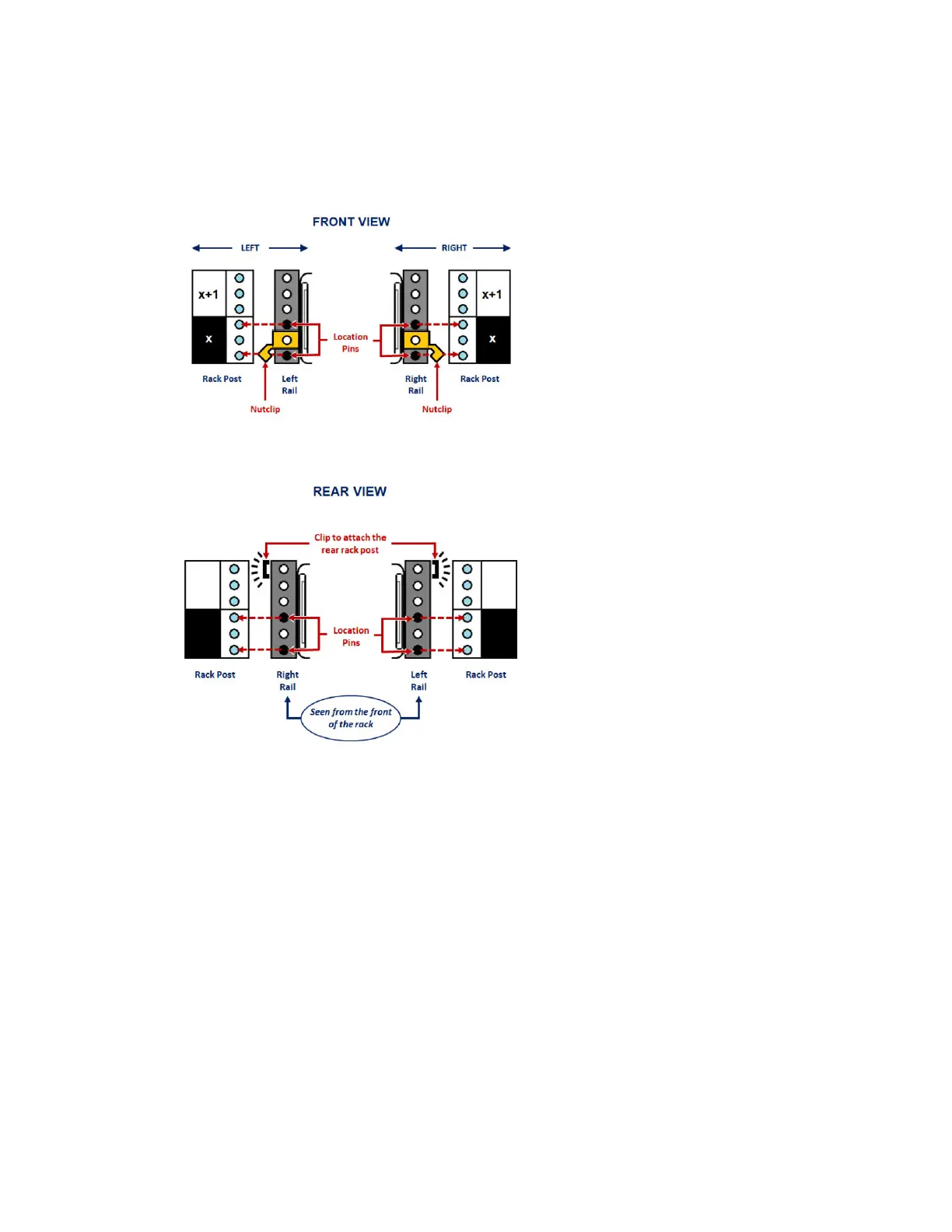

Figure 20. Mark selected EIA in the front of the rack
2. Mark the EIA locations in the rear of the rack, left and right.
Figure 21. Mark selected EIA in the rear of the rack
52
IBM Storage ScaleSystem Utility Node: Hardware Planning and Installation Guide
