Mounting the MTM 5149 - 23E server chassis in a rack
Learn how to mount the MTM 5149 - 23E server rack chassis into a rack.

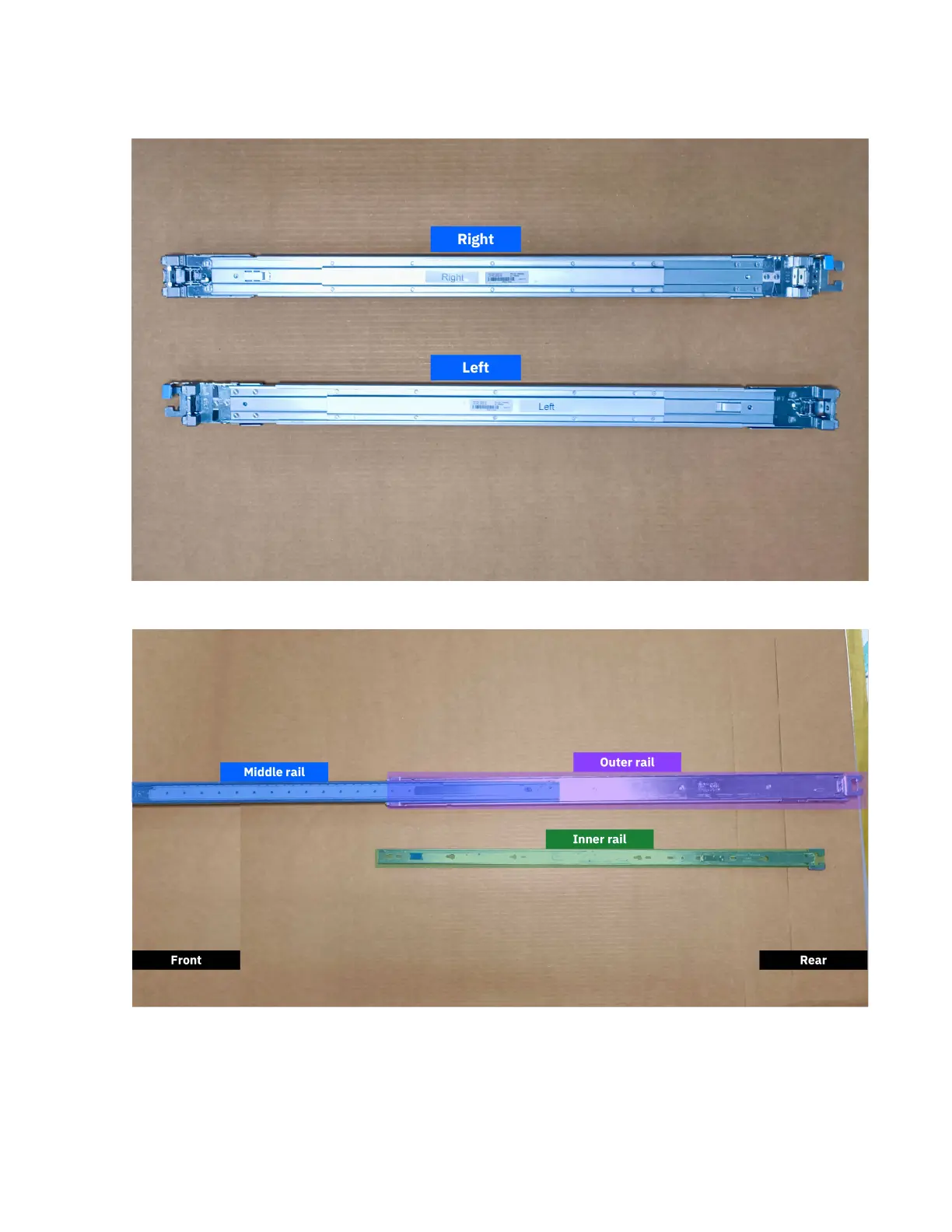

Figure 22. Rail kit - right and left rails
Figure 23. Outer, middle, and inner rails – left rail
The rails can be used in racks with either round or square post holes, as shown in the following gure.
