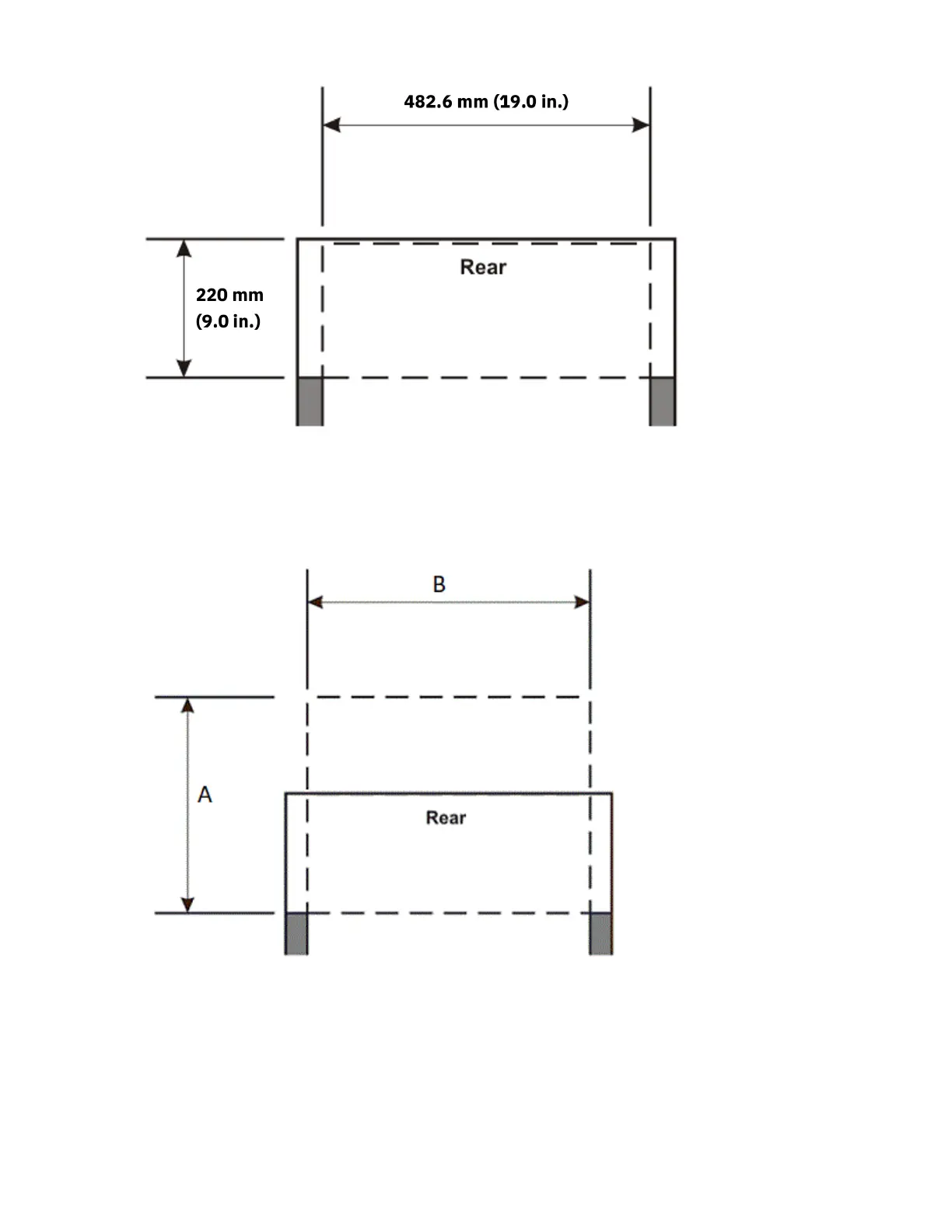

Figure 14. Model MTM 5149 - 23E rear rack clearance
For a server enclosure model 5141-FN2, you must have a minimum rear clearance (A) of 558.5 mm
(22.0 in.) measured from the rear EIA mounting flange of IBM rack model 7965-S42. For this IBM rack,
the distance between front and rear EIA surfaces is 719 mm (28.31 in.). And you must have a minimum
width clearance of (B) 482.6 mm (19.0 in.), centered within the rack.
Figure 15. Server enclosure model 5141-FN2 rear rack clearance
• Only AC power drawers are supported in the rack or cabinet. It is strongly recommended to use a
power distribution unit that meets the same specications as IBM power distribution units to supply
rack power (for example, FC 7188). Rack or cabinet power distribution devices must meet the drawer
voltage, amperage, and power requirements, as well as that of any additional products that are
connected to the same power distribution device.
The rack or cabinet power receptacle (power distribution unit, uninterruptible power supply, or multi-
outlet strip) must have a compatible plug type for your drawer or device.
Chapter 3. Planning for hardware
37
