B
A
D

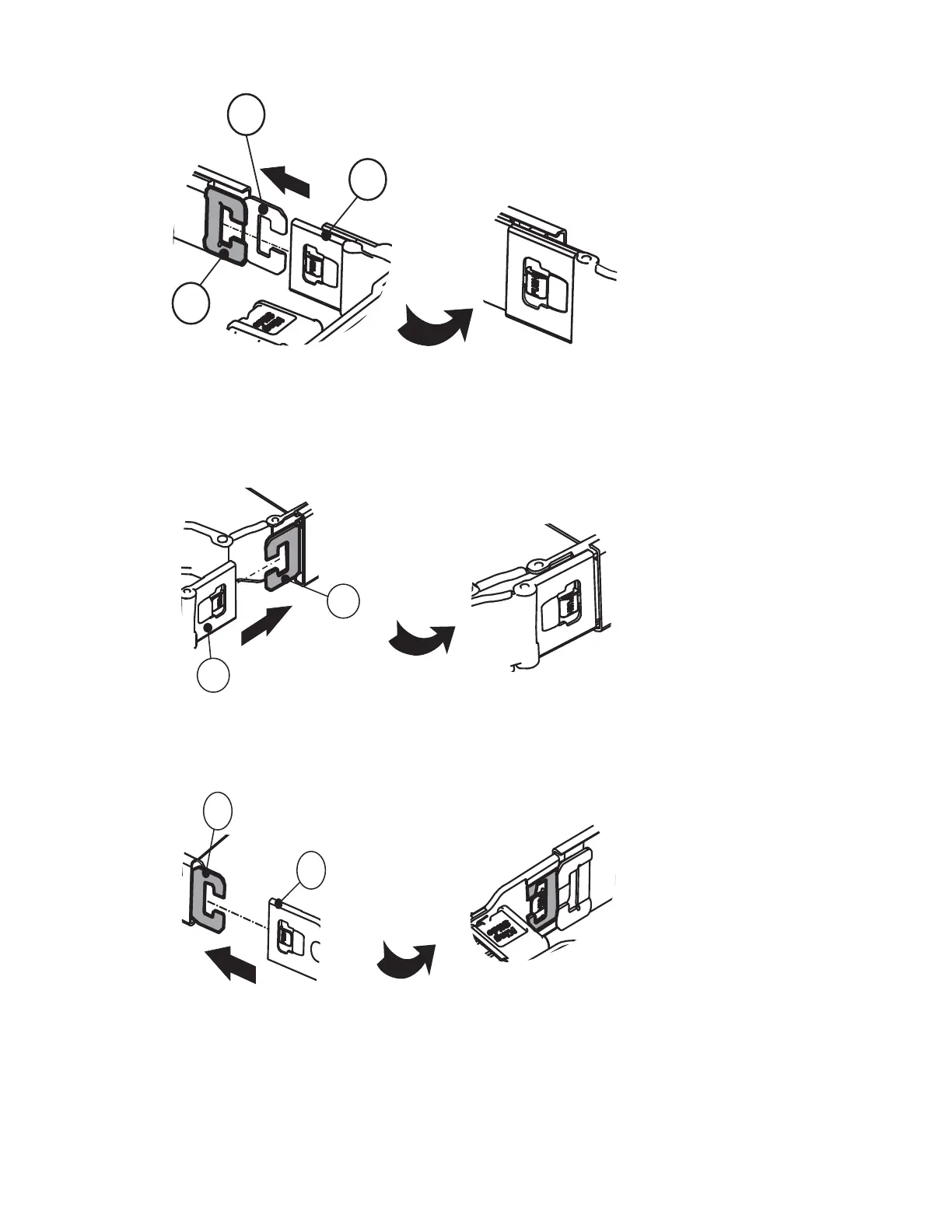

Figure 46. Installing inner CMA arm connector on inner rail connector
5. Slide the outer CMA arm connector (C) onto the lower right outer rail connector (D) as shown in the
following gure.
D
C
Figure 47. Installing outer CMA arm connector on outer rail connector
6. Slide the CMA body connector (E) onto the lower left CMA body rail (F) as shown in the following gure.
F
E
Figure 48. Installing CMA body connector (E) on the left CMA body rail
68
IBM Storage ScaleSystem Utility Node: Hardware Planning and Installation Guide
