Function/
Test ID
D
F
G
L
M
N
p
Q
R
S
T
EXIT BAT AFTER ERROR
Description
Switch
to Opposite Diskette Drive
Run
BAT Once
Run BAT in Loop Mode
Diskette Drive Set Ready Test
Diskette Stepper
Motor Phase Test
Diskette Drive
Alignment Aid
Looping ROS CRe Test
Looping
Display Path Test
Looping
Base RAM Test
Looping Diskette Adapter Wrap Test
Track
Step Test
Run
Function/Test
Go
To IPL
Test Exit
Conditions
N/A
N/A
Memory
Record
Button
N/A
Diskette Must Be Inserted
N/A
Diskette Must Be Inserted
END Key Diskette Must Be Removed
END Key
END Key
END Key
Screen
Blank During Test
END Key Screen
Blank During Test
END Key Diskette Must
Be Removed
Yes
No
Note:
To scroll (step) to the next function or test 10,
press the MOVE key. To start or execute a function
or test, press the ENTER key.

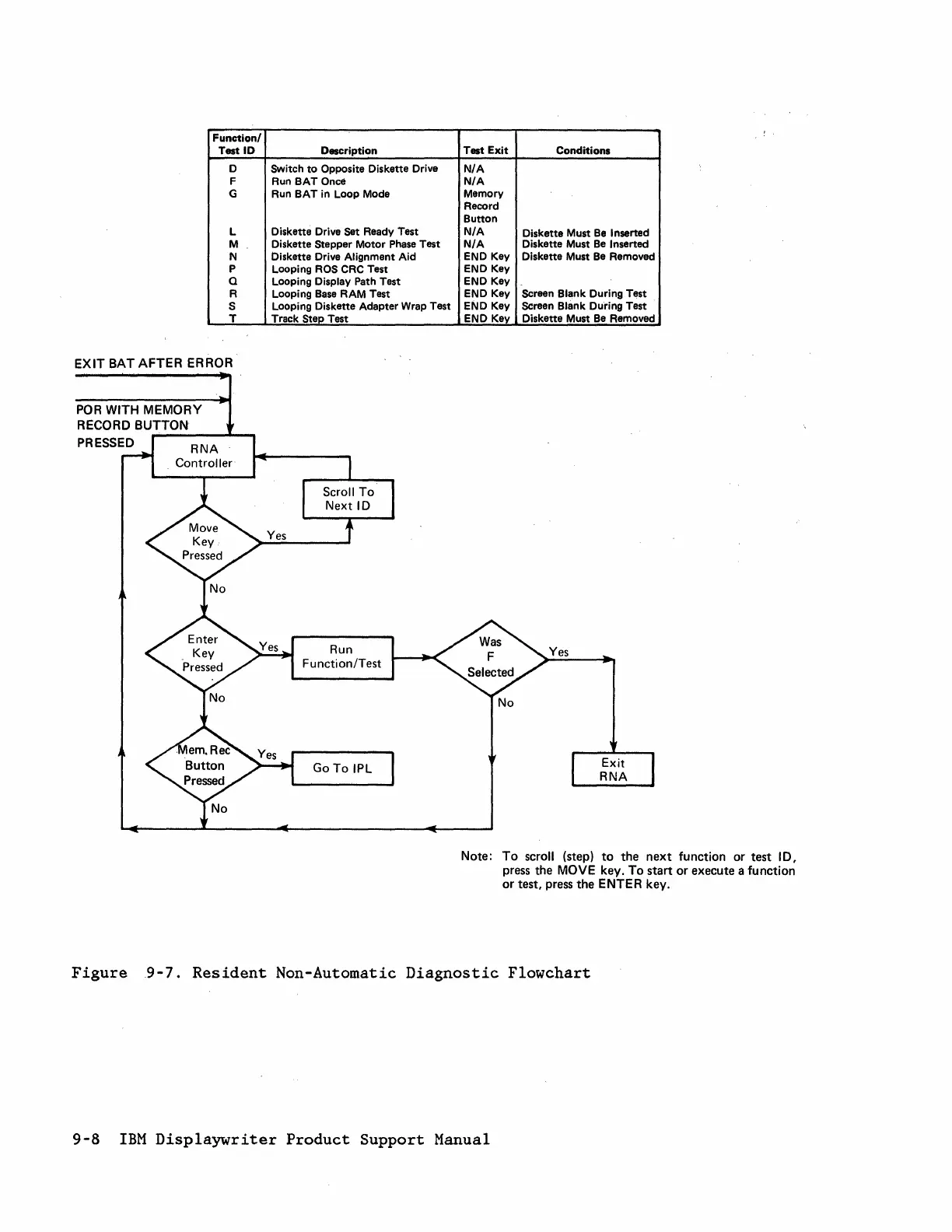

Figure 9-7. Resident Non-Automatic Diagnostic Flowchart
9-8 IBM Displaywriter Product Support Manual
